E. Supplementary Procedures

Drive flange stud damage

1. If a thread on a drive flange stud is damaged, the damaged stud should be pressed out of the flange:

2. Support the flange on the bed of a press. Align a suitable driver with the end of the stud.

3. Operate the press to remove the stud towards the bearing.

4. Reverse the drive flange assembly in the press, and support.

5. Insert the replacement stud, align a suitable driver with the rear of the stud, and operate the press to drive the stud fully into position.

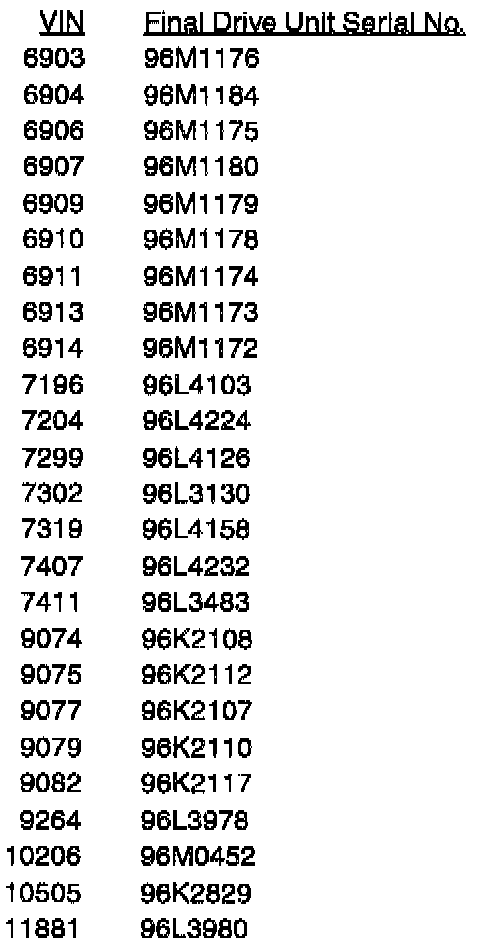

The vehicles need to be rechecked since the first issue of this bulletin.





The vehicles have been added since the first issue of this bulletin.
