Tool - Quick Fit Connector
303-17DATE
2/98
V8 XJ Series/XK8
MODEL
1997 MY-ON XK8 Range
1998 MY-ON V8 XJ Series
VIN
001001-ON
812256-ON
Special Tool 303-623 - Release Tool for Quick-fit Connectors
Issue:
Special Tool 303-623 has been introduced to release the quick-fit connectors found in the engine compartment of the above vehicles.
Action:

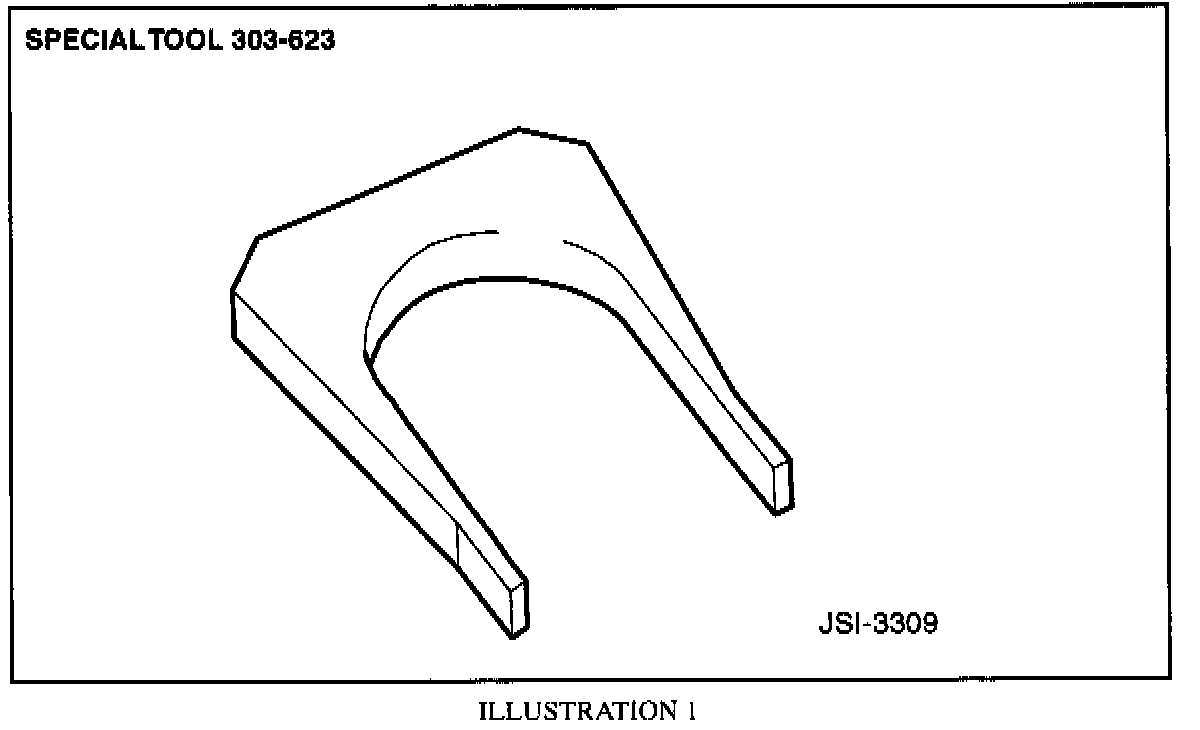

To disconnect quick-fit connectors, use special tool 303-623 (Illustration 1) as described.

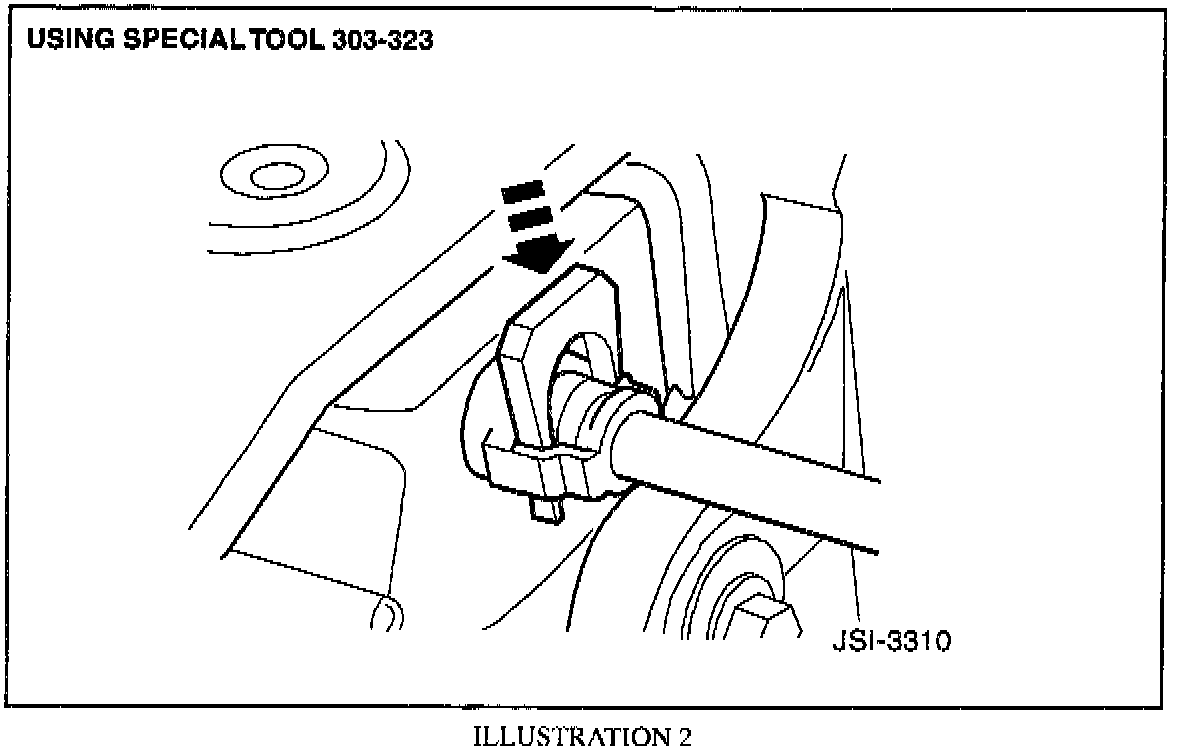

1. Insert the legs of the releasing tool between the body and side braces of the quick-fit connector (Illustration 2).
2. Apply steady pressure to the top of the releasing tool to spread the connector's side braces.
3. While applying pressure to the top of the releasing tool, gently pull on the connector body until it releases from the connector nipple.
