Cellular Phone - Harness/Connector ID

419-01

DATE
1/96

XK8

MODEL
1997 MY
XK8 Range

VIN
001001-ON

Cellular Telephone - Factory Installed Harness - Connector/Wiring Information

Issue:

This bulletin identifies the cellular-telephone harness circuits by function and wire color code.

Action:

Refer to the charts shown and Fig. 01.2, 01.4, 10.2, and 16.4 of the XK8 Range 1997 Electrical Guide found in the Jaguar XK8 Diagnostic and Test Manual. Unused pins are not listed.

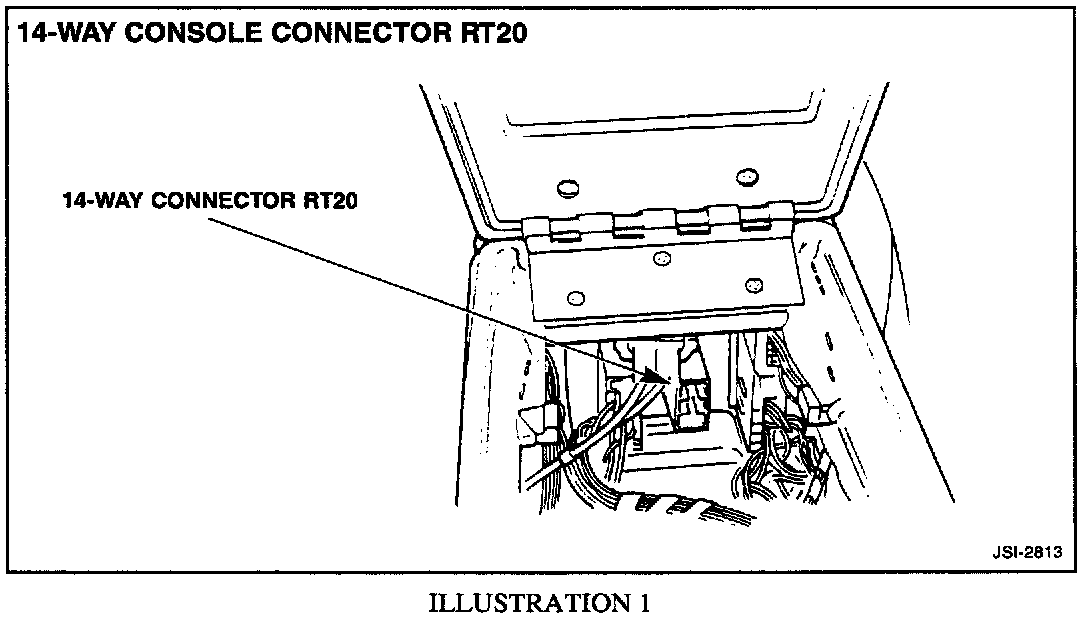

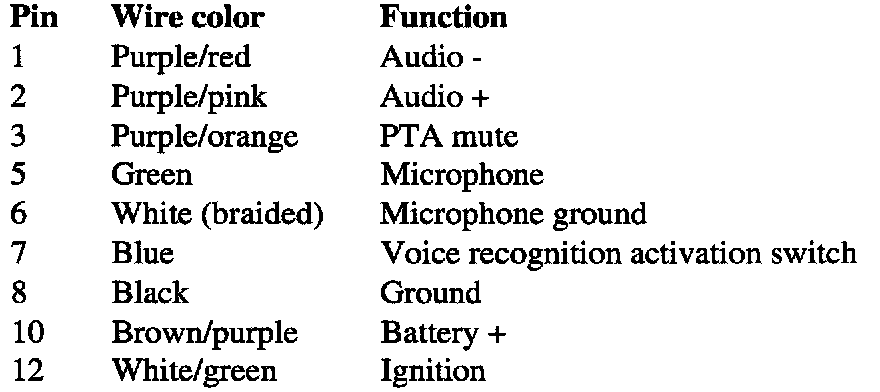

14-WAY SLATE CONNECTOR ( RT20 )
Located at rear of center console

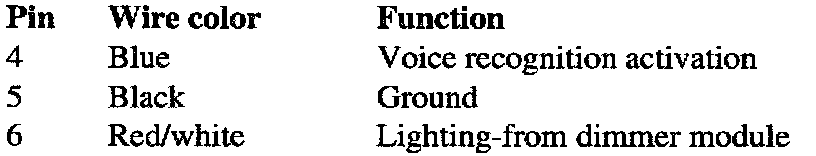

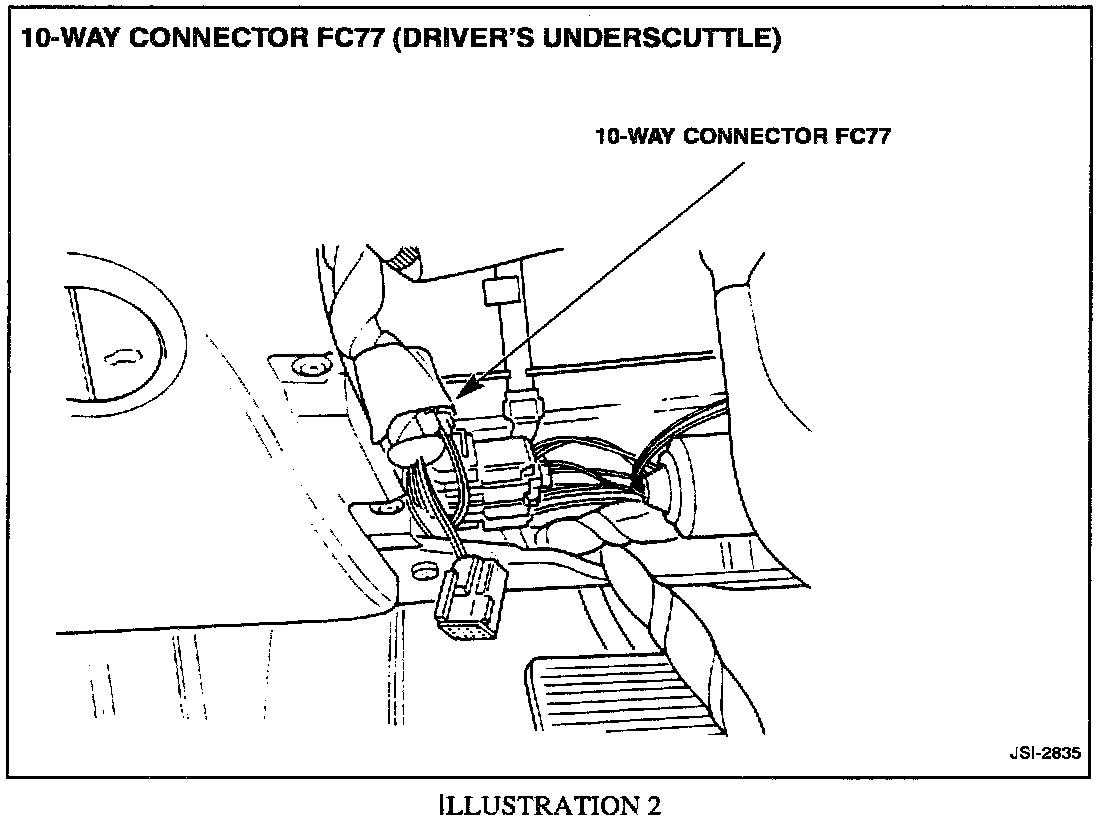

10-WAY WHITE CONNECTOR FC77
Located behind driver's underscuttle

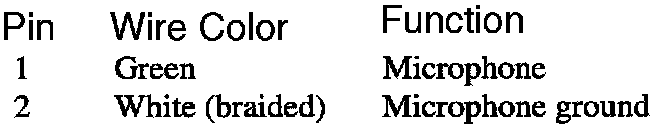

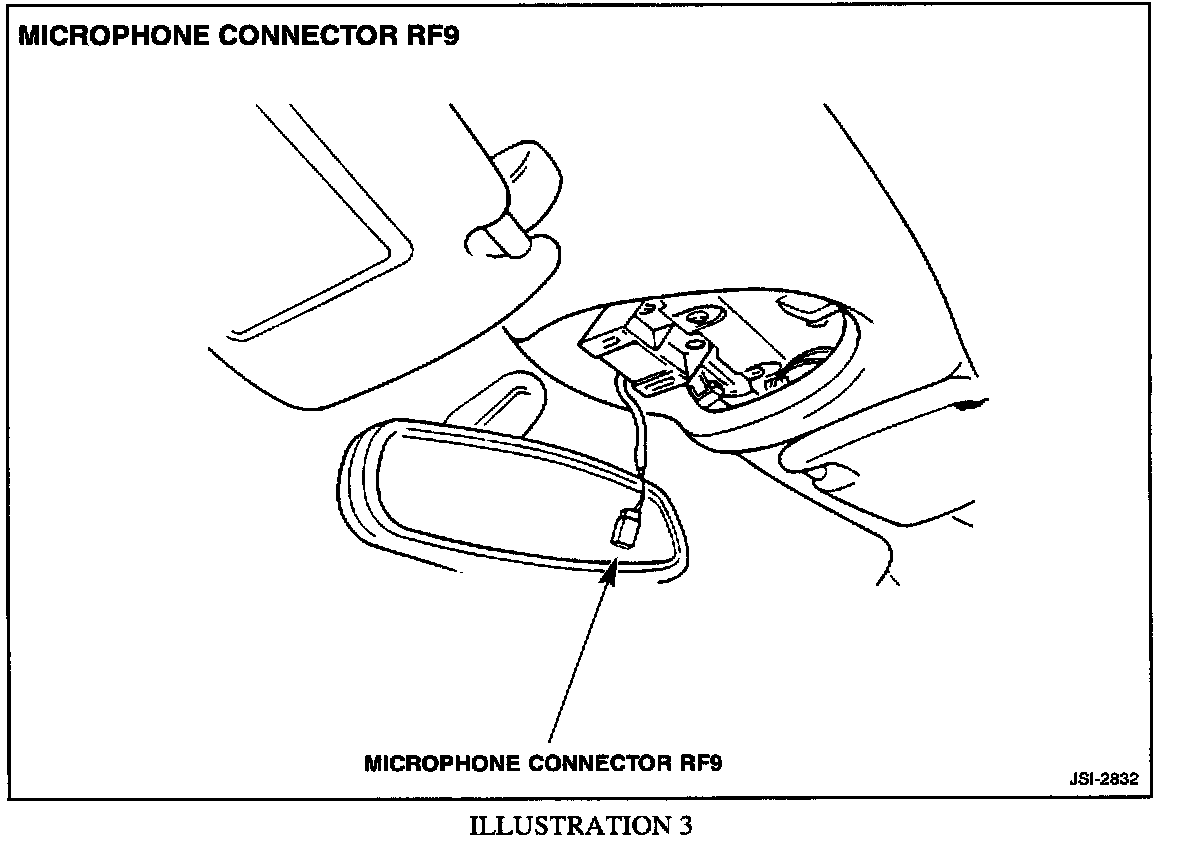

2-WAY BLACK CONNECTOR RF9
behind roof console

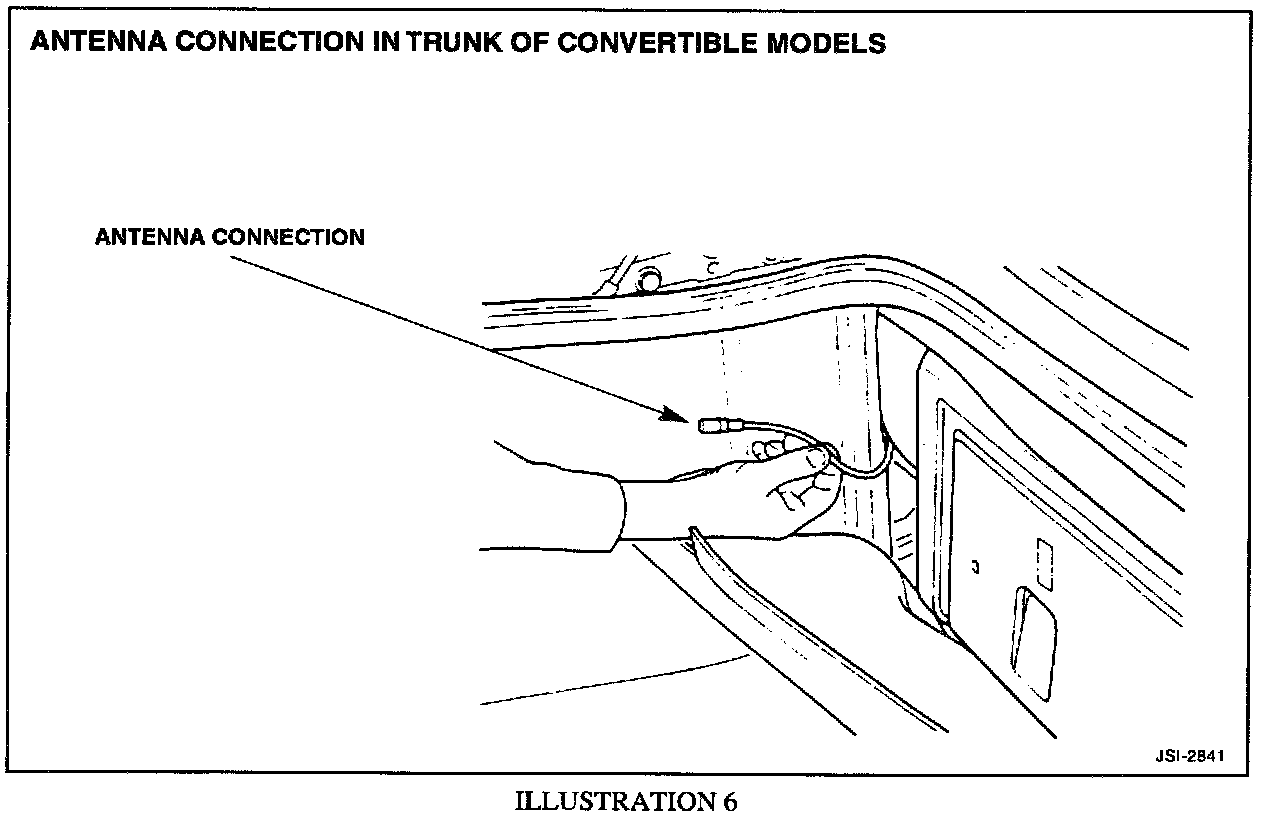

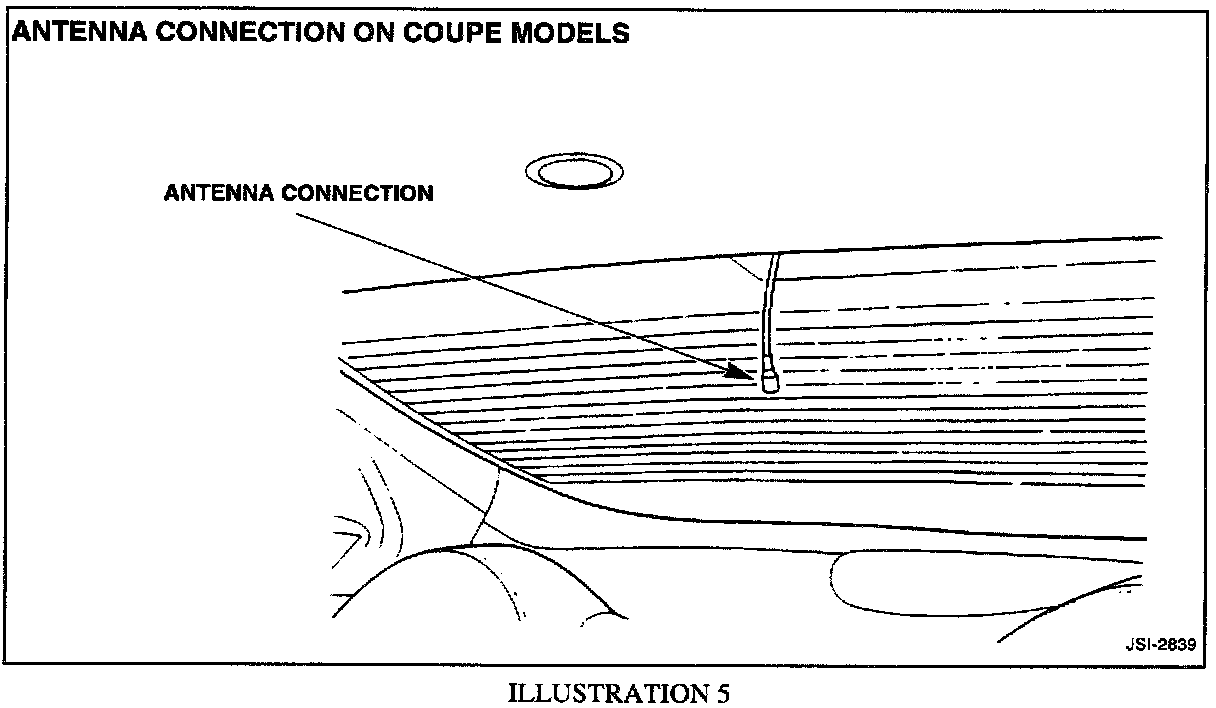

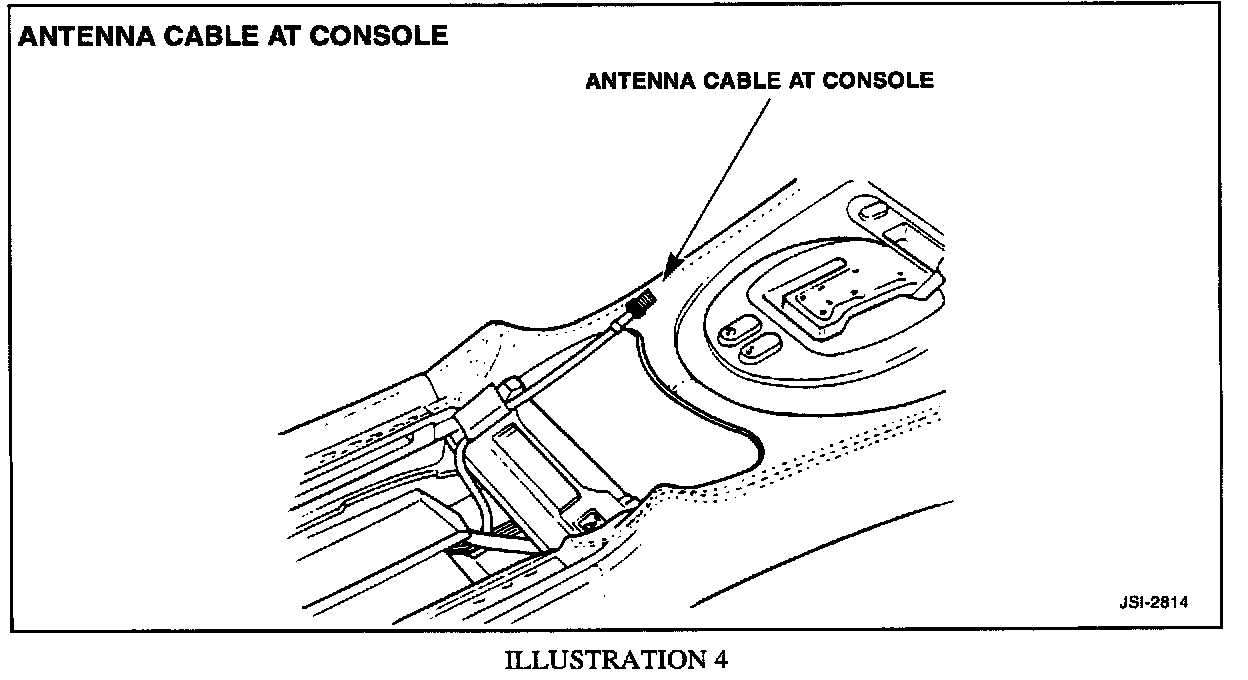

Antenna Information

Warranty Policy:

Dealers installing non-factory approved cellular telephones may not make any warranty claims for diagnostic time or parts in the event there are subsequent problems with the telephone or factory harness.
