Pinout Values and Diagnostic Parameters

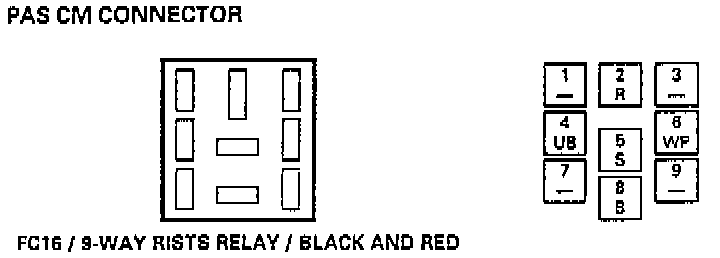

Connectors:

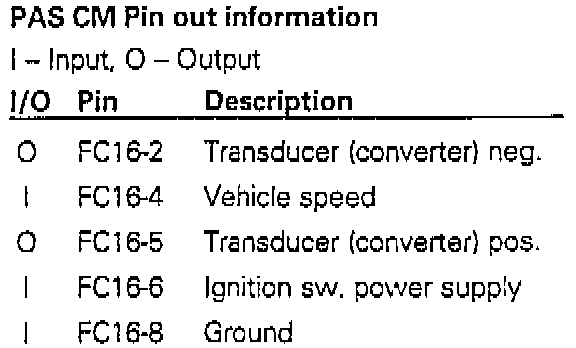

Pin Out Information:

Vehicle speed signal @:
10 mph (16 km/h) =20Hz
20mph (32 km/h) = 40 Hz

Maximum converter drive signal @ 0 mph = 854 mA (Maximum steering assist)

Minimum converter drive signal = 15 mA (Minimum steering assist)
