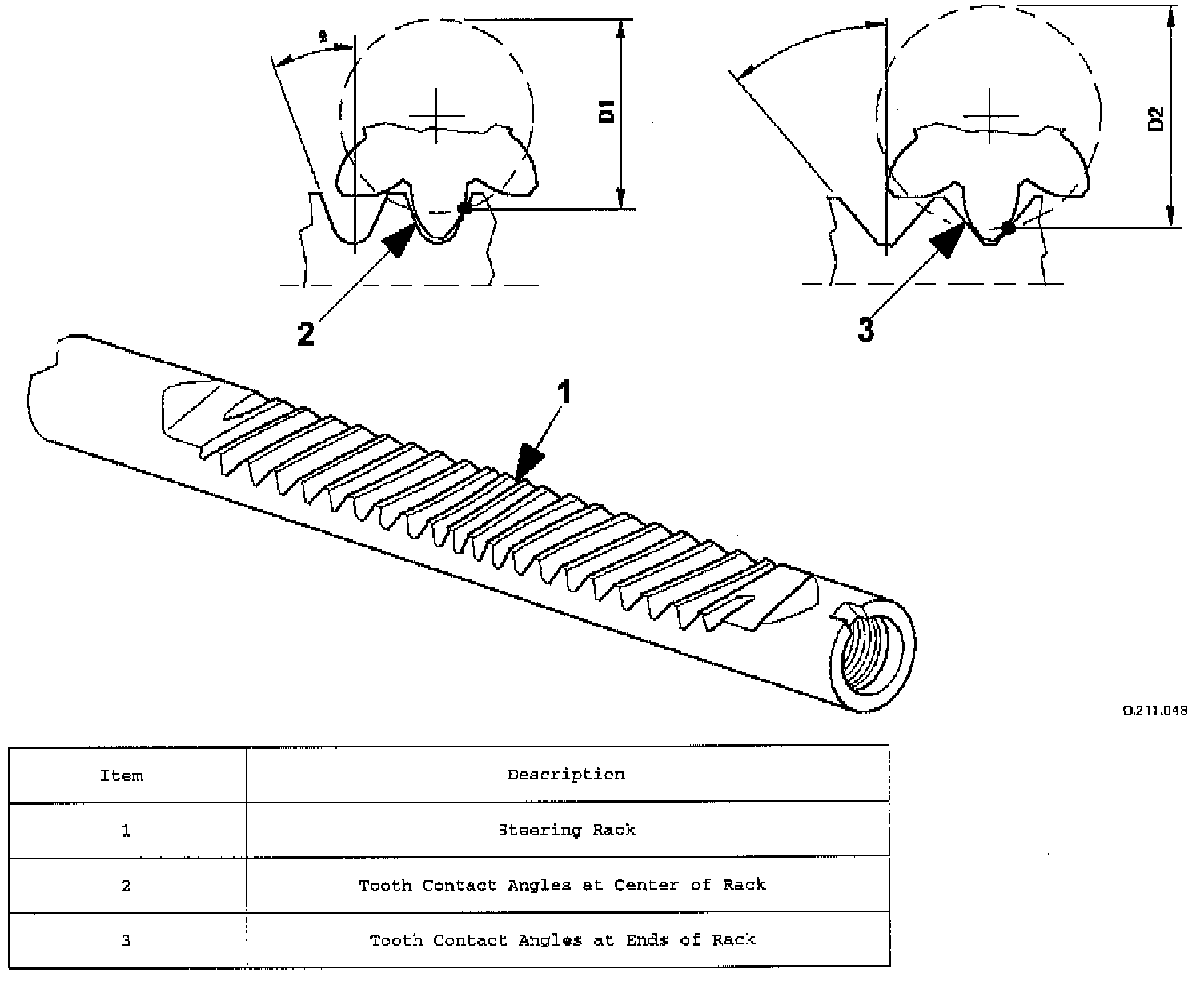

Variable Ratio Rack

The variable ratio rack permits quick and precise reactions at speed and optimum vehicle control during maneuvering.
^ The rack incorporates teeth of varying size and angle of contact.
^ This results in a steering operation which is relatively direct with the steering wheel in the straight ahead position.
^ As the steering is turned to the left or right, the ratio becomes lower and the steering action more direct.
