Upper Steering Column

The upper steering column is adjustable for both tilt and reach.

It is available with either manual or electrical operation of these functions.

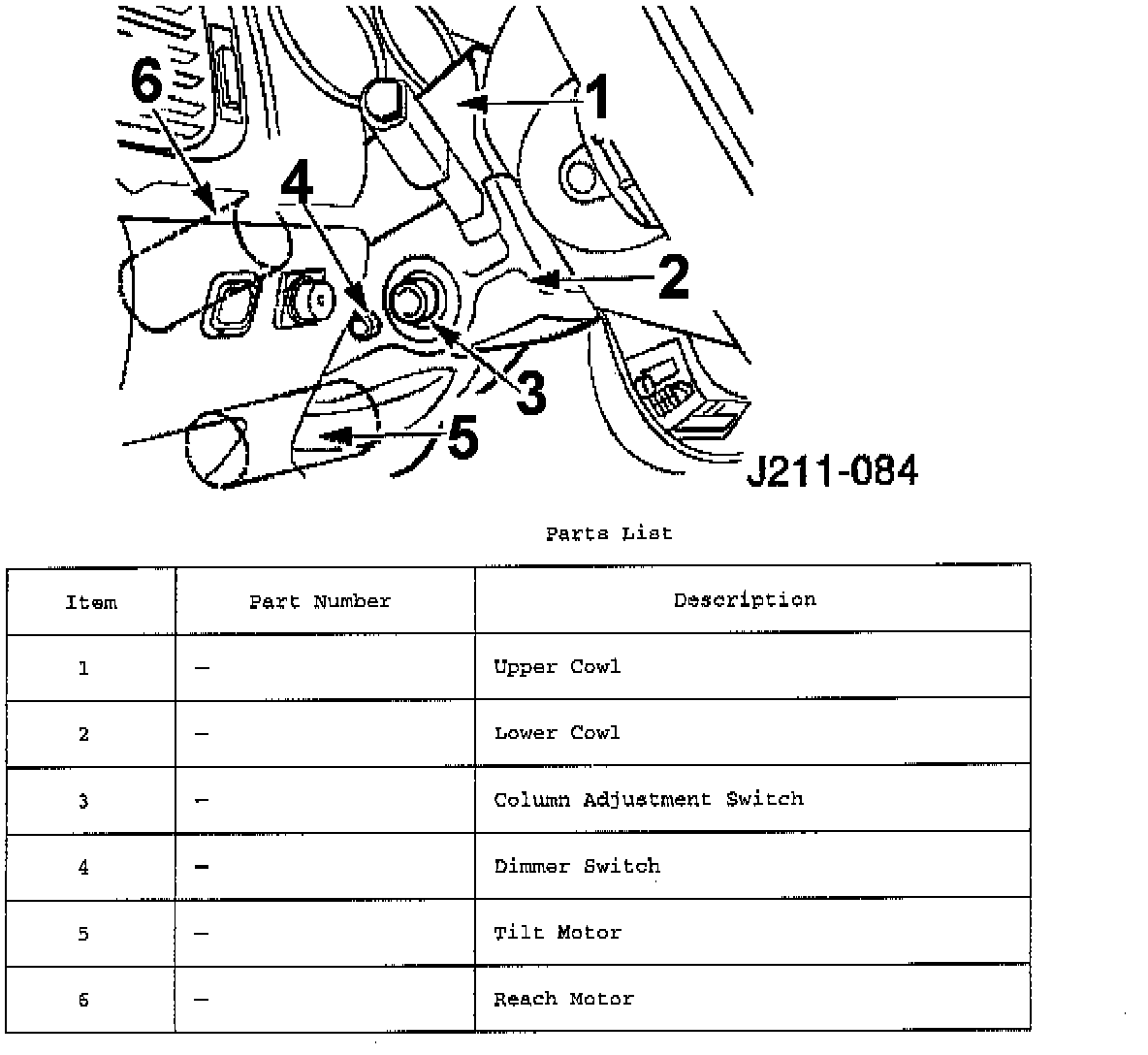

A dimmer switch is installed on the left side of the lower cowl.

Steering column upper and lower cowls are installed for both manual and electric columns.

MANUAL ADJUSTMENT
^ The cable operated reach adjustment has approximately sixteen latched positions.
^ The desired position is fixed by a rack and wedge.
^ Tilt variations are stepped at approximately 3° intervals.
^ Four latched positions are available.
^ The uppermost position is unlatched.
^ From the uppermost position the column may be pulled down to engage the first detent without using the tilt lever.
^ Serviceable Parts.
- The only serviceable part is the Bowden wire and lever assembly.

ELECTRIC ADJUSTMENT
^ If the ignition key is removed and the adjustment switch is in the 'AUTO' position, the column will tilt away for entry and exit.
^ A column adjustment switch is installed on the left side of the lower cowl.
^ Serviceable Parts
- Ignition switch assembly.
- Gearshift interlock solenoid.
- Tilt motor assembly.
- Reach motor assembly.
