Electrical Guide - Amendments

418-05

XK8

DATE
12/97

MODEL
1997 MY XK8

VIN
001001-018107

1997 MY XK8 Electrical Guide - Amendments

Issue:

Replacement pages dated September 1997, have been issued for pages 17/18 and 19/20 of the 1997 XK8 Electrical Guide. The amended page 17 revises the locations of some ground points. The amended page 19 revises the locations of some control modules.

















However, the Data pages that are affected by the above revisions will not be reissued, and must be manually revised as indicated in the charts shown.

Action:

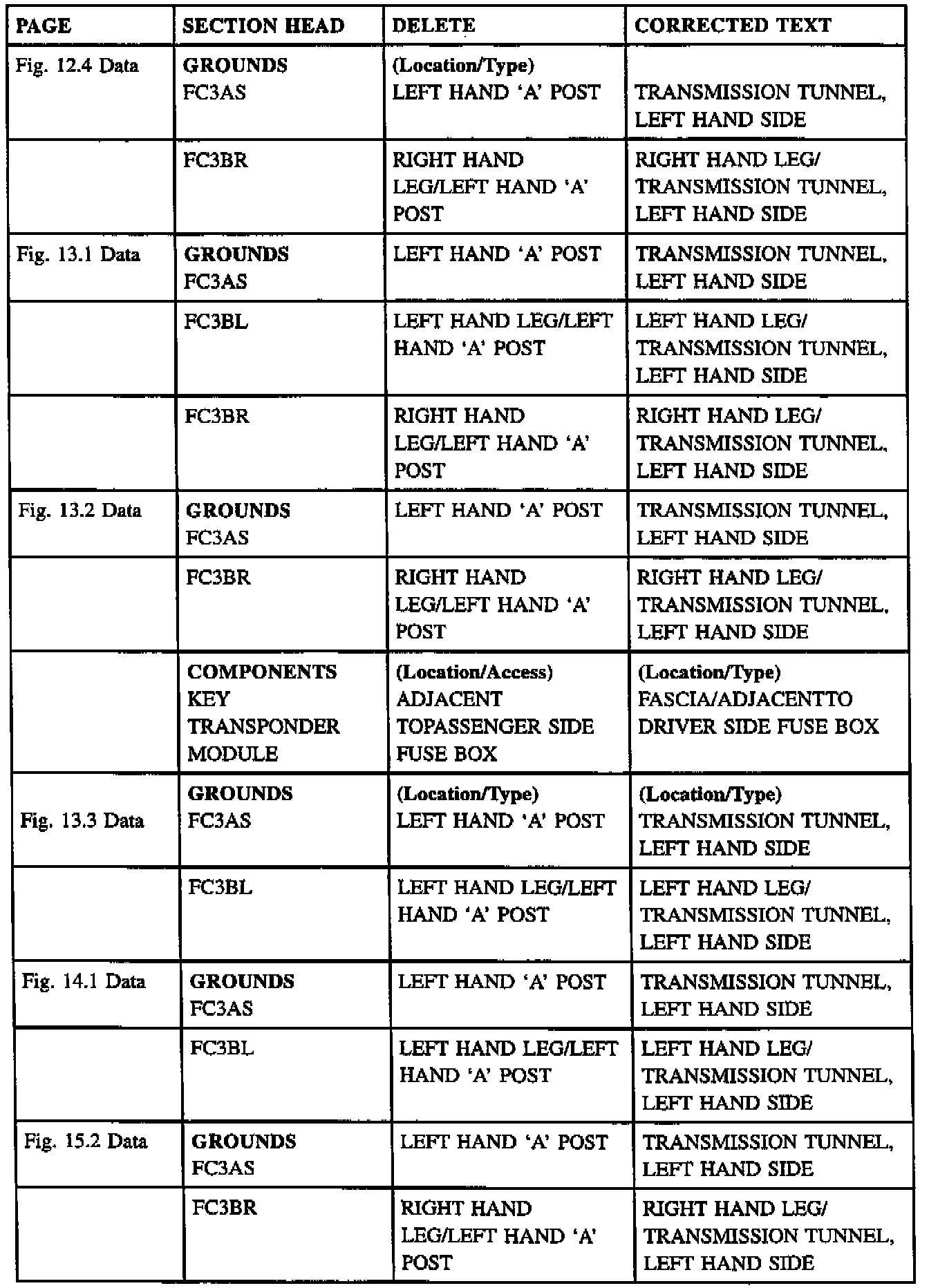

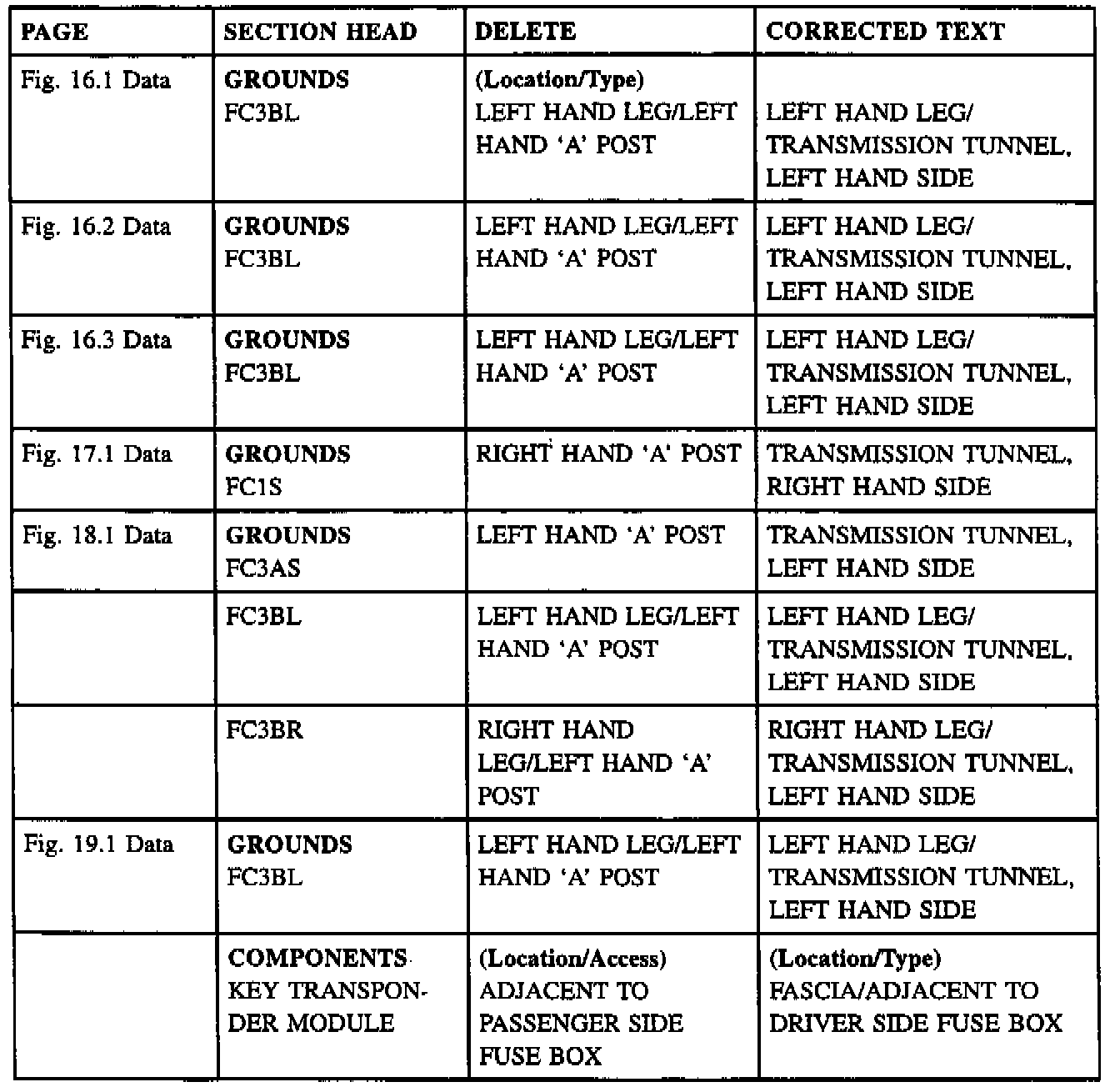

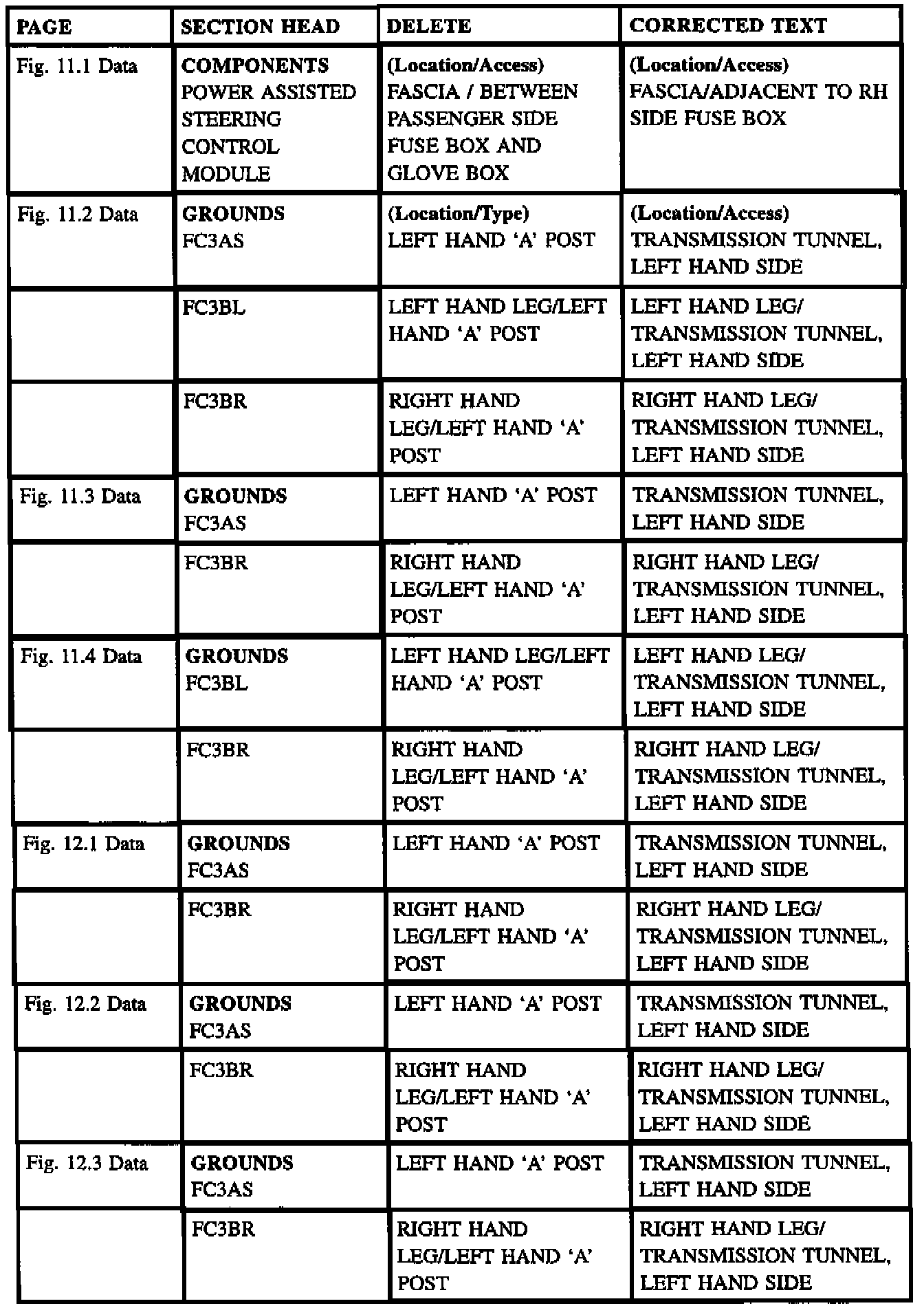

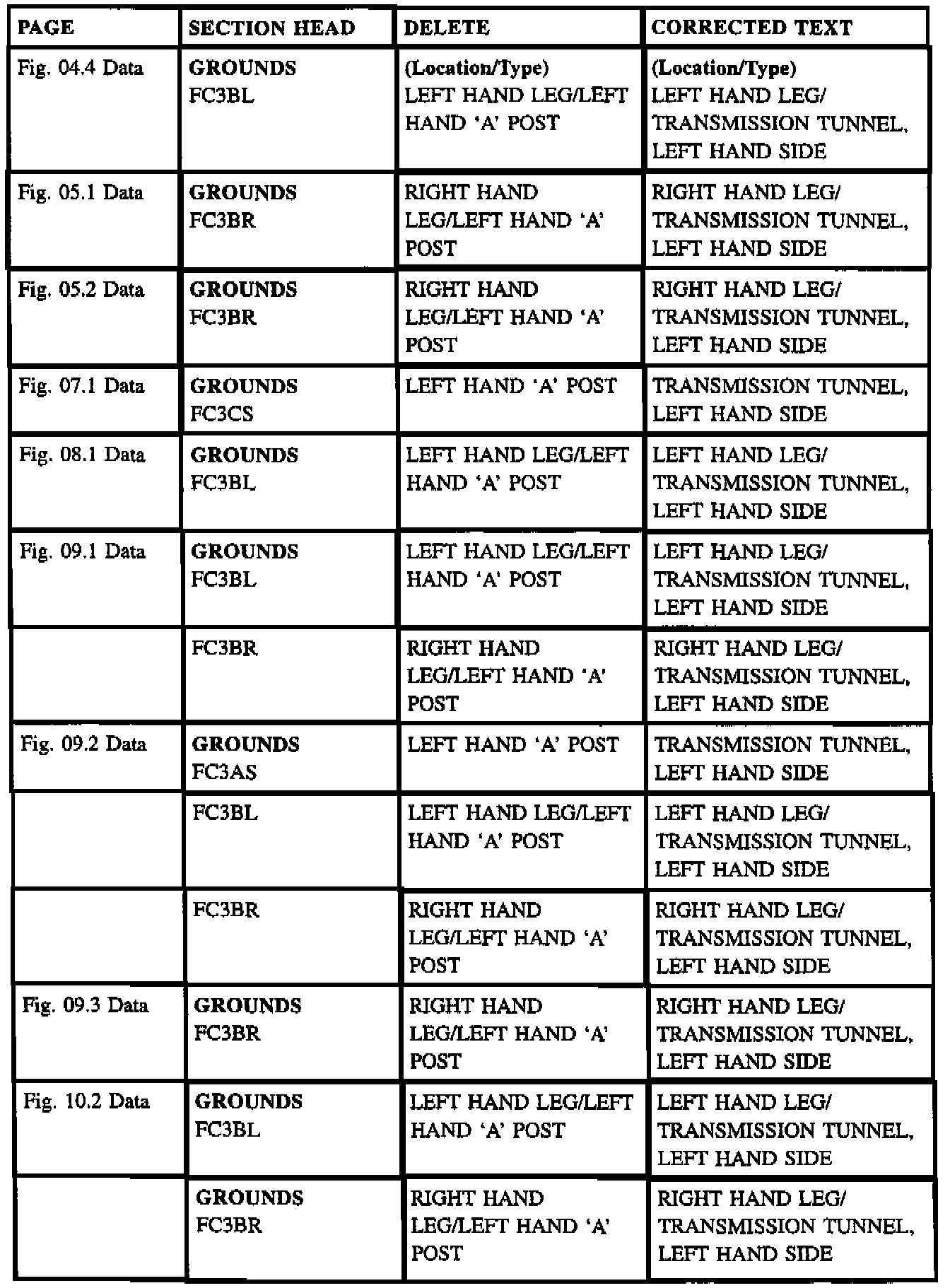

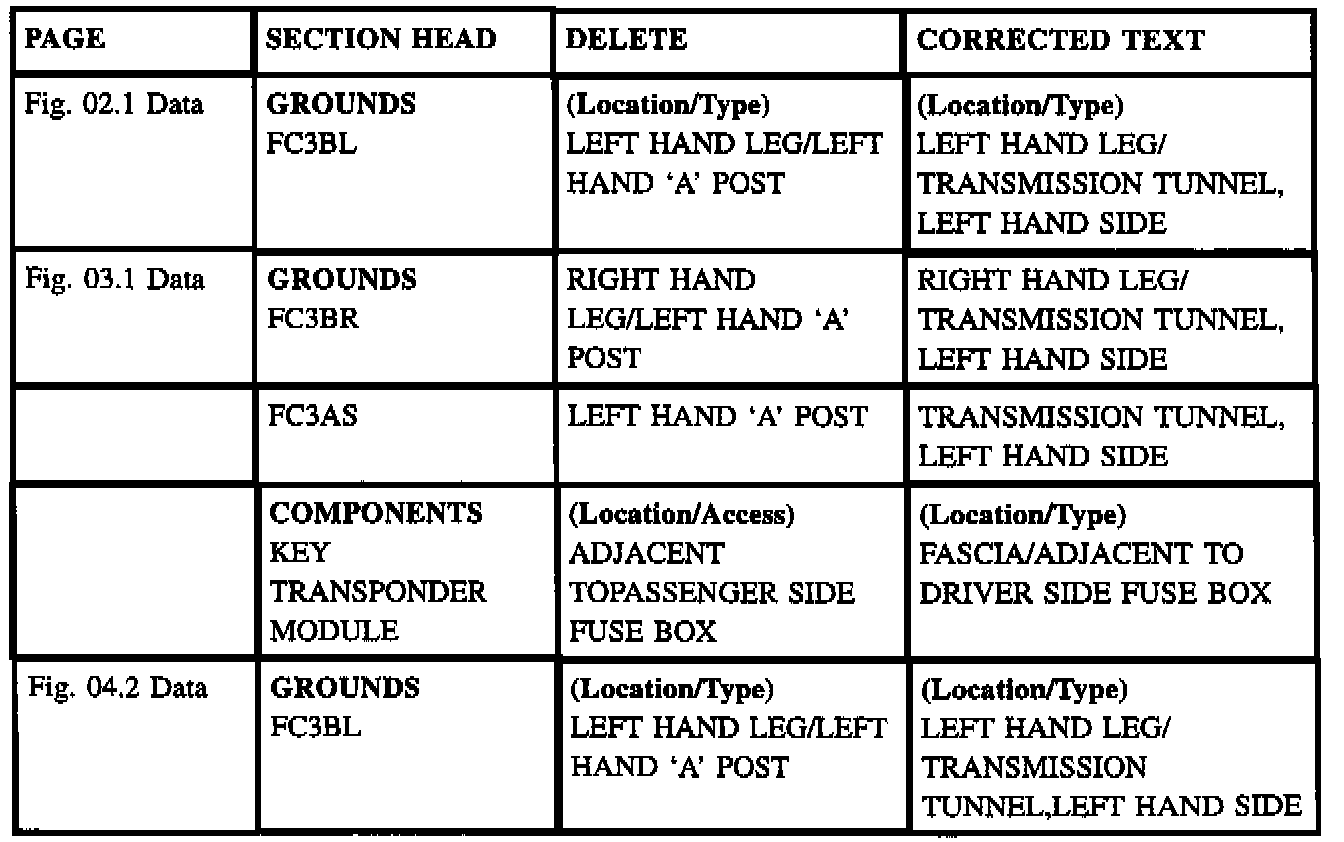

Write in the changes to the 1997 MY XK8 Electrical Guide:
