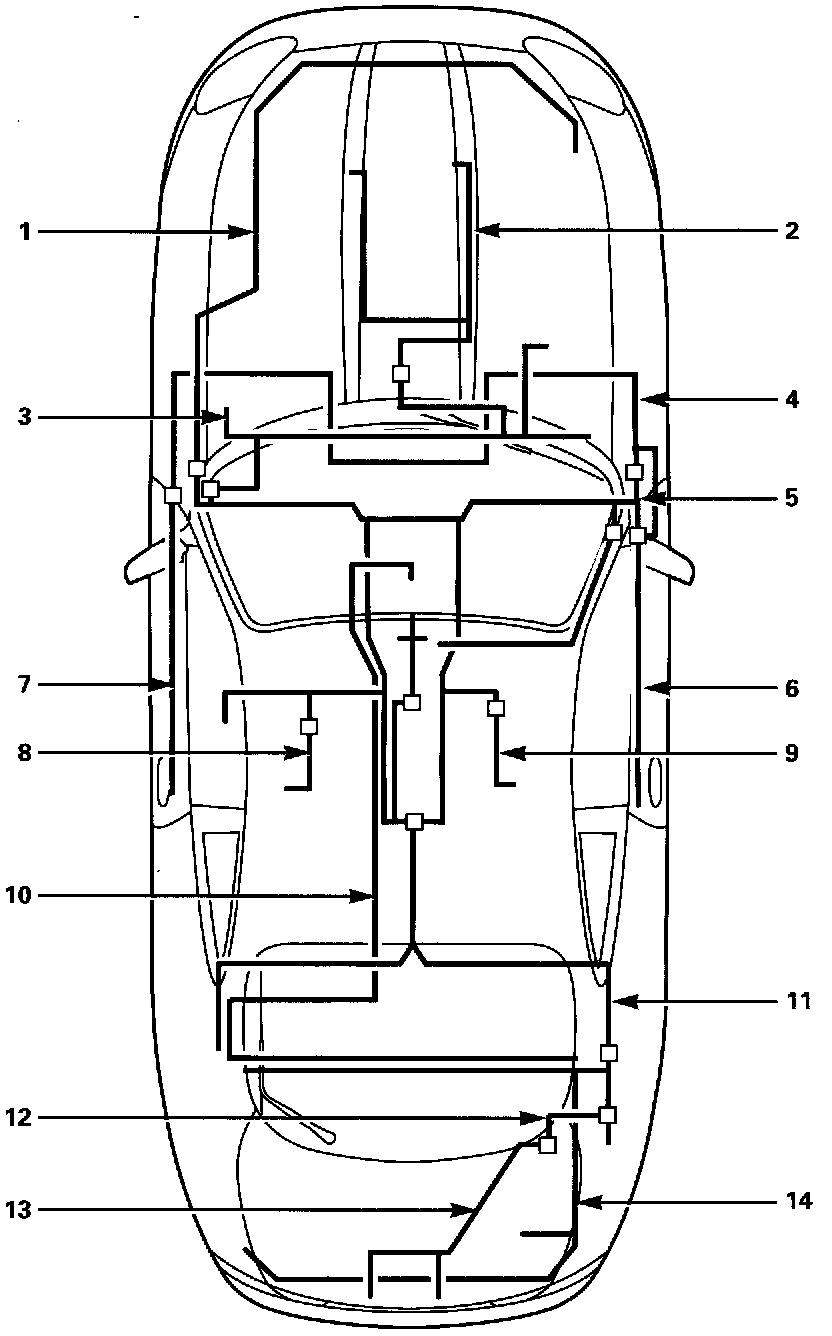

Harness Locations

1 Left Forward
2 Engine
3 Engine Management
4 Air Conditioning
5 Fascia
6 Passenger Door
7 Drivers Door
8 Drivers Seat
9 Passenger Seat
10 I.C.E
11 Rearward
12 Trunk to Trunklid
13 Trunklid
14 Trunk

Harnesses
The vehicle harnesses plug directly onto components or component flying leads using locking connectors Extensive use is made of harness securing clips, and the majority of the flying lead and interface connectors are secured to the adjacent structure or component.
