Fuse-Boxes

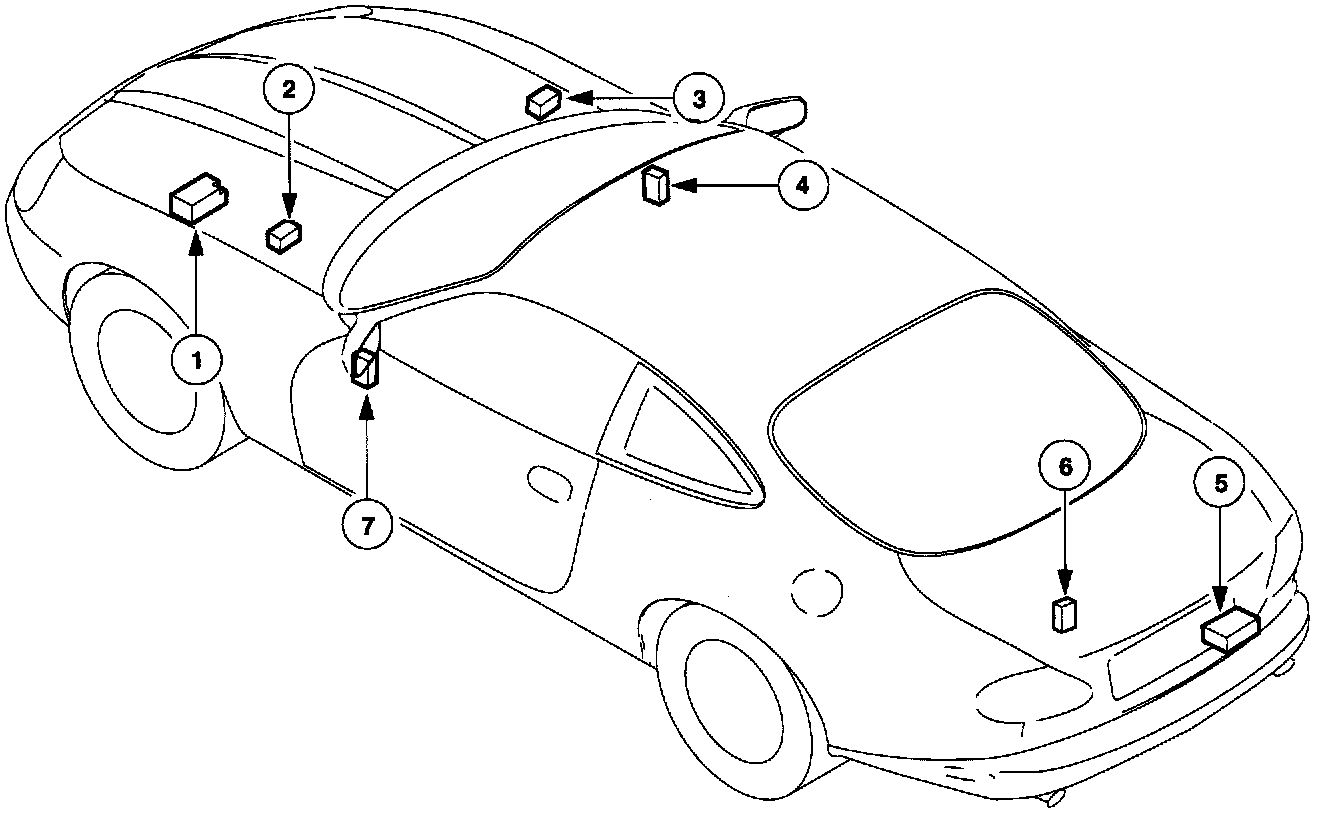

(Fig. 2) Relay / Fuse Block Locations:

Five conventional fuse boxes contain the protection fuses for all of the electrical circuits. A fuse map is located on the lid of the electrical carrier in the trunk. Spare fuses and a fuse extractor tool are Installed on the underside of the lid.

Another fuse-box assembly is the High Power Protection Module which does not have conventional fuses. The High Power Protection Module comprises three 250 Amp fusible links to protect the starting circuit (two connected in parallel) and the battery positive supply to the other fuse-boxes.

Fuse - Boxes:

Item Description
1 Engine Compartment
2 Engine Management - RHD Only
3 Engine Management - LHD Only
4 Fascia End - Right Hand Side
5 Luggage Compartment
6 High Power Protection Module
7 Fascia End - Left Hand Side



Two Engine Management fuse-boxes are shown. Only one is fitted (LHD or RHD) to any vehicle, on the opposite side to the pedal box.




CAUTION: Always replace blown fuses with the same rated fuse.
