Steering Control Module: Diagrams

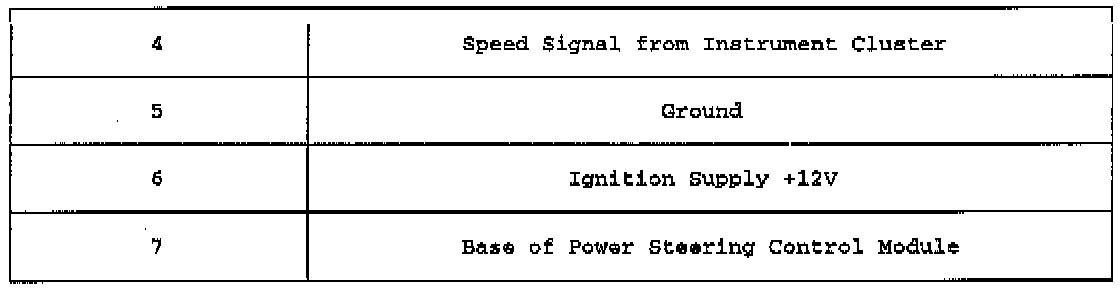

Part 1 Of 2:




Part 2 Of 2:

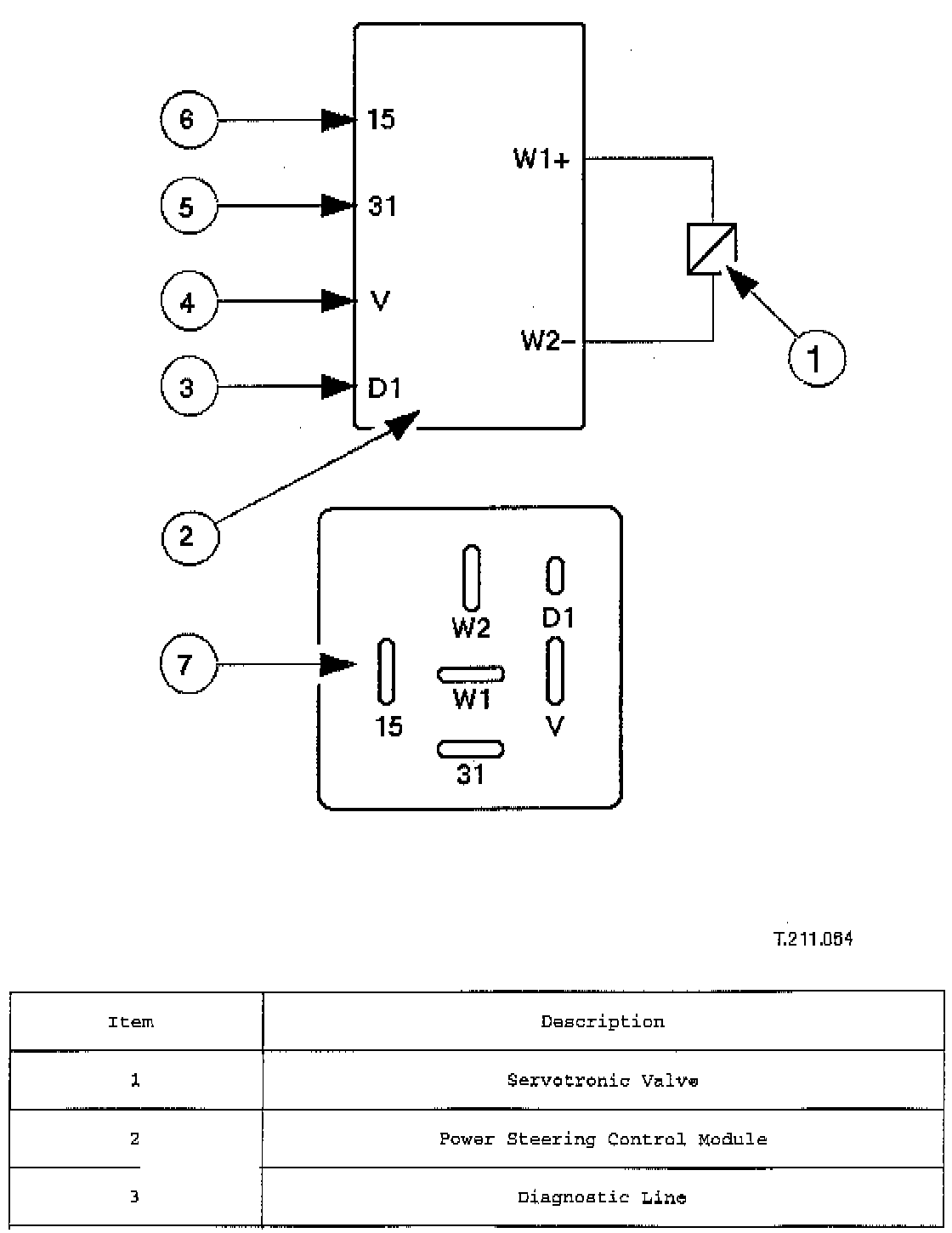

Power steering control module connectors.
