Electrical Diagrams



NOTE: For complete Engine Management wiring diagrams, see Powertrain Management / Diagrams / Electrical. Electrical Diagrams

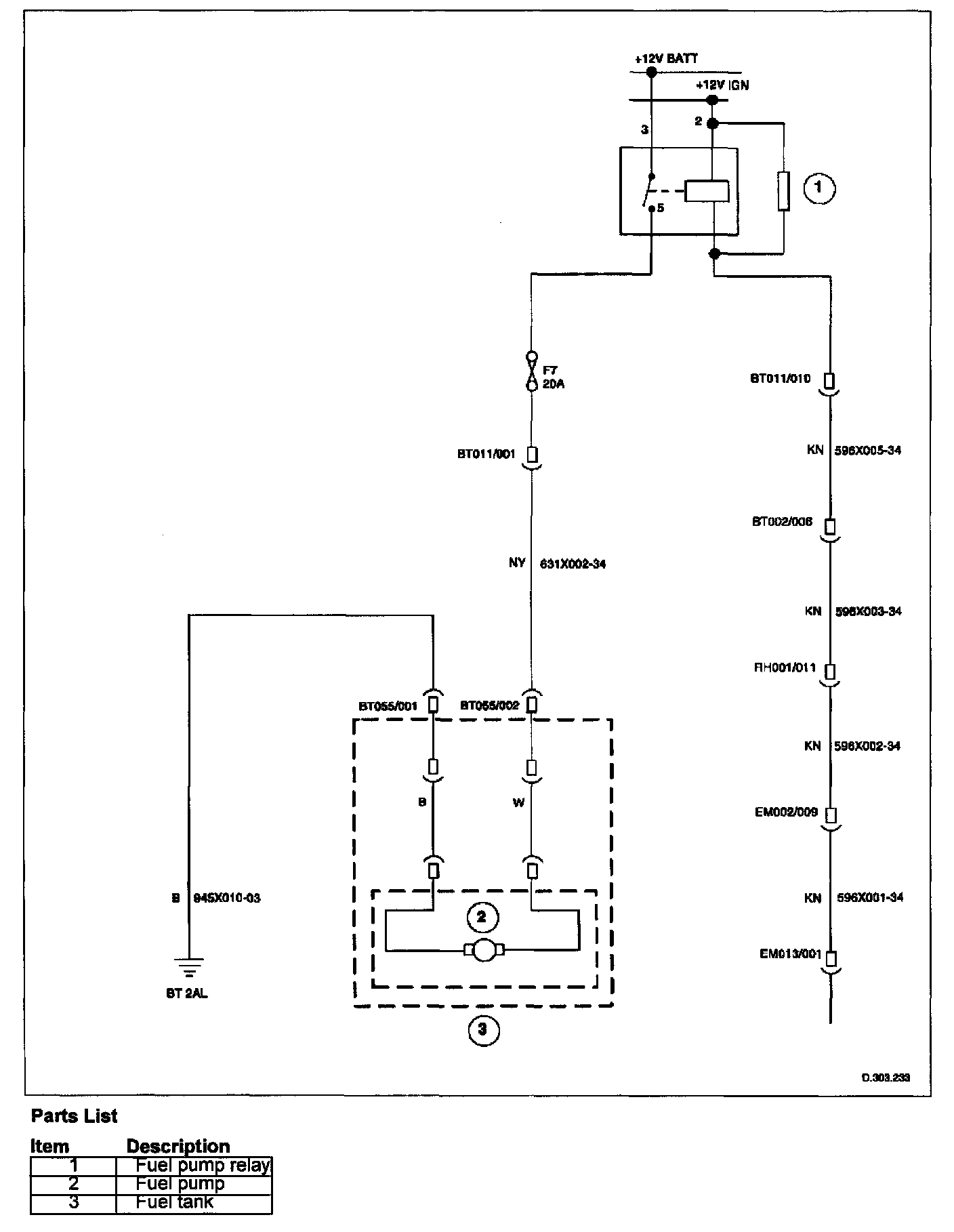

Fuel Pump & Relay/ECM:
