Electrical Diagrams



NOTE: For complete Engine Management wiring diagrams, see Powertrain Management / Diagrams / Electrical. Electrical Diagrams

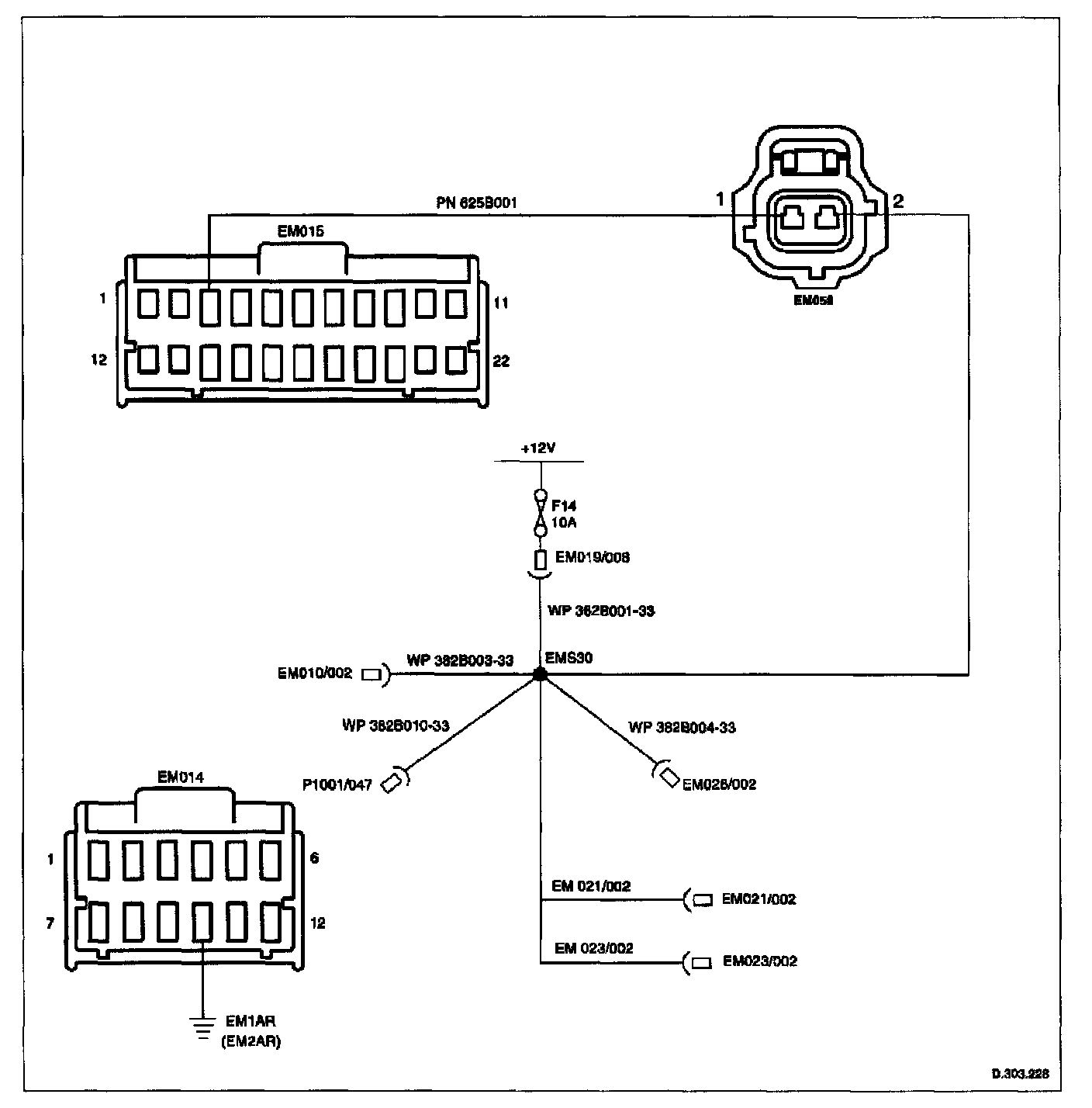

Evaporative Valve/ECM:
