Control Modules - PECUS Display Messages
413-02DATE
8/98
V8 XJ Series/XK8
MODEL
1997 MY-ON XK8 Range
1998 MY-ON V8 XJ Series
VIN
001001-ON
812256-ON
Control Modules - PECUS Display Messages
Issue:
In case any of the messages listed below are displayed on the Message Center this indicates that the Control Module, (CM), referred to is not programmed correctly and must be replaced by a new PECUS programmed CM.

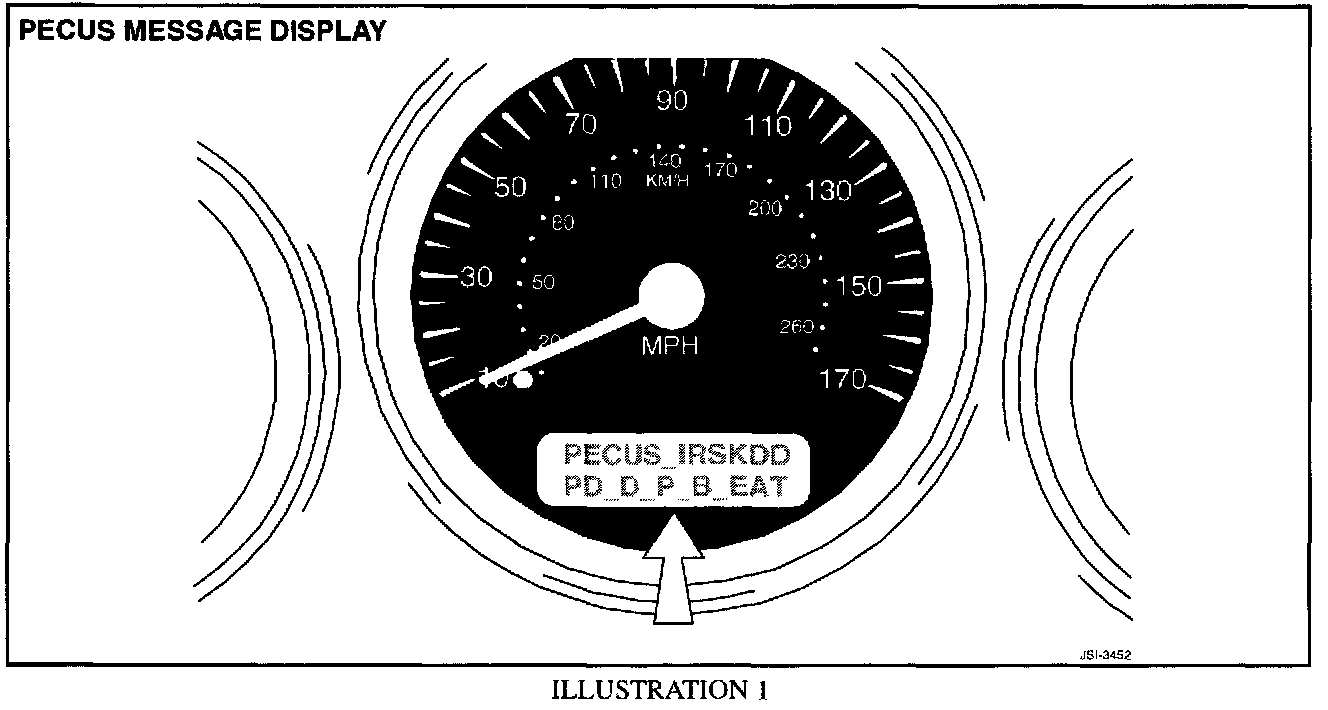

Each CM has a code, listed below, which will appear if a fault develops. Each code also has its own position in the Message Center display, as shown in Illustration 1.
PECUS (Programming Electronic Control Unit) always appears before this type of message.
I Instrument Pack D Driver Seat Control Module
R Driver Rear Door Control Module P Passenger Seat Control Module
S Security and Locking Control Module B Body Processor Module
K Passenger Rear Door Control Module E Engine Control Module
DD Driver Door Control Module A ABS Control Module
PD Passenger Door Control Module T Transmission Control Module
