Marker Lamp: Description and Operation

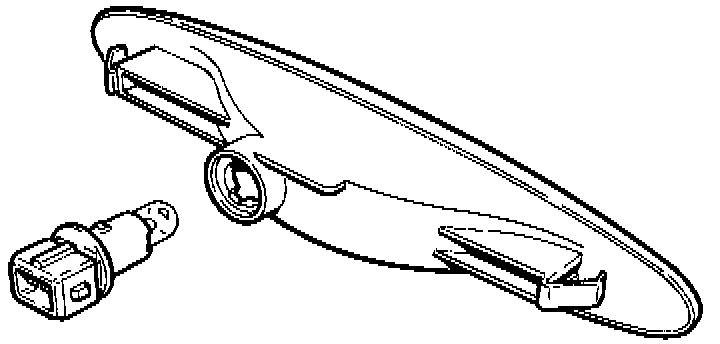

Side marker lamps, with reflective lenses, are installed in apertures in the outboard ends of the front and rear bumpers. Spring clips secure the lamps in the bumpers. Except for the color of the lens, all four lamps are identical. The lens of each front side marker lamp is amber and that of each rear side marker lamp is red.

Each lamp has a W 5 W bulb installed in a bulb holder. Access for bulb replacement is through the panel in the wheel arch liner (front lamps) or from under the vehicle (rear lamps).
