Interior Lighting

�v�%���%���%�ޓ%q�%Interior Lighting:

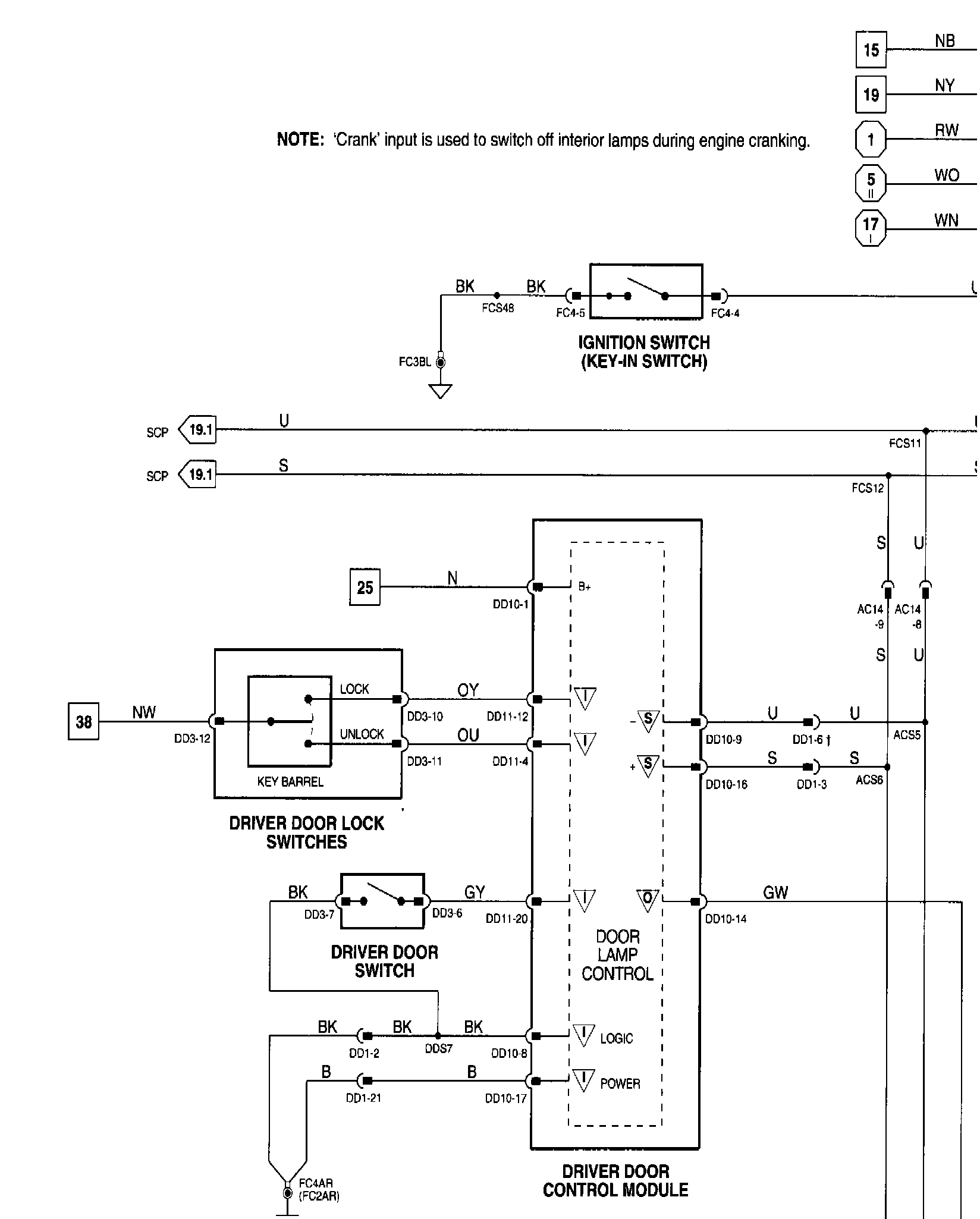

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

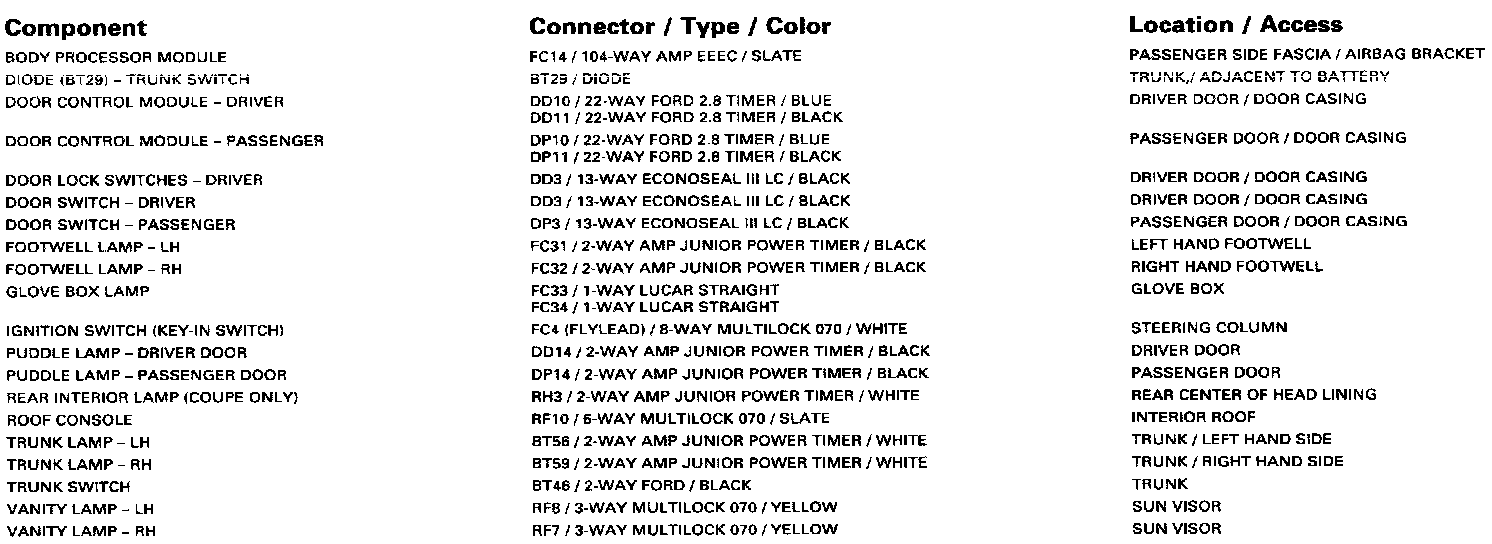

Interior Lighting: Components:

Components Informations

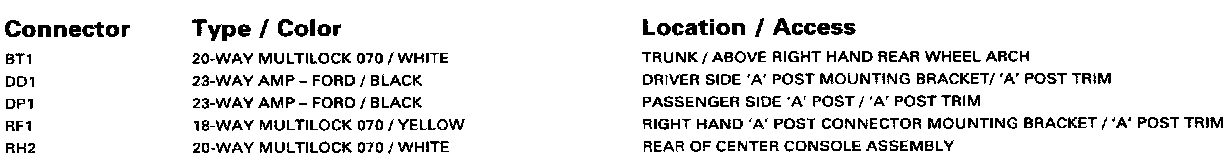

Interior Lighting: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

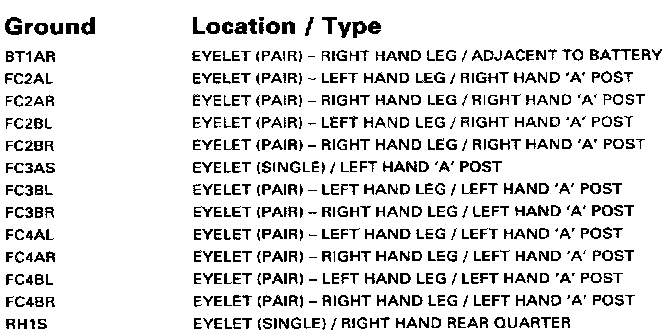

Interior Lighting: Grounds:

Grounds Informations

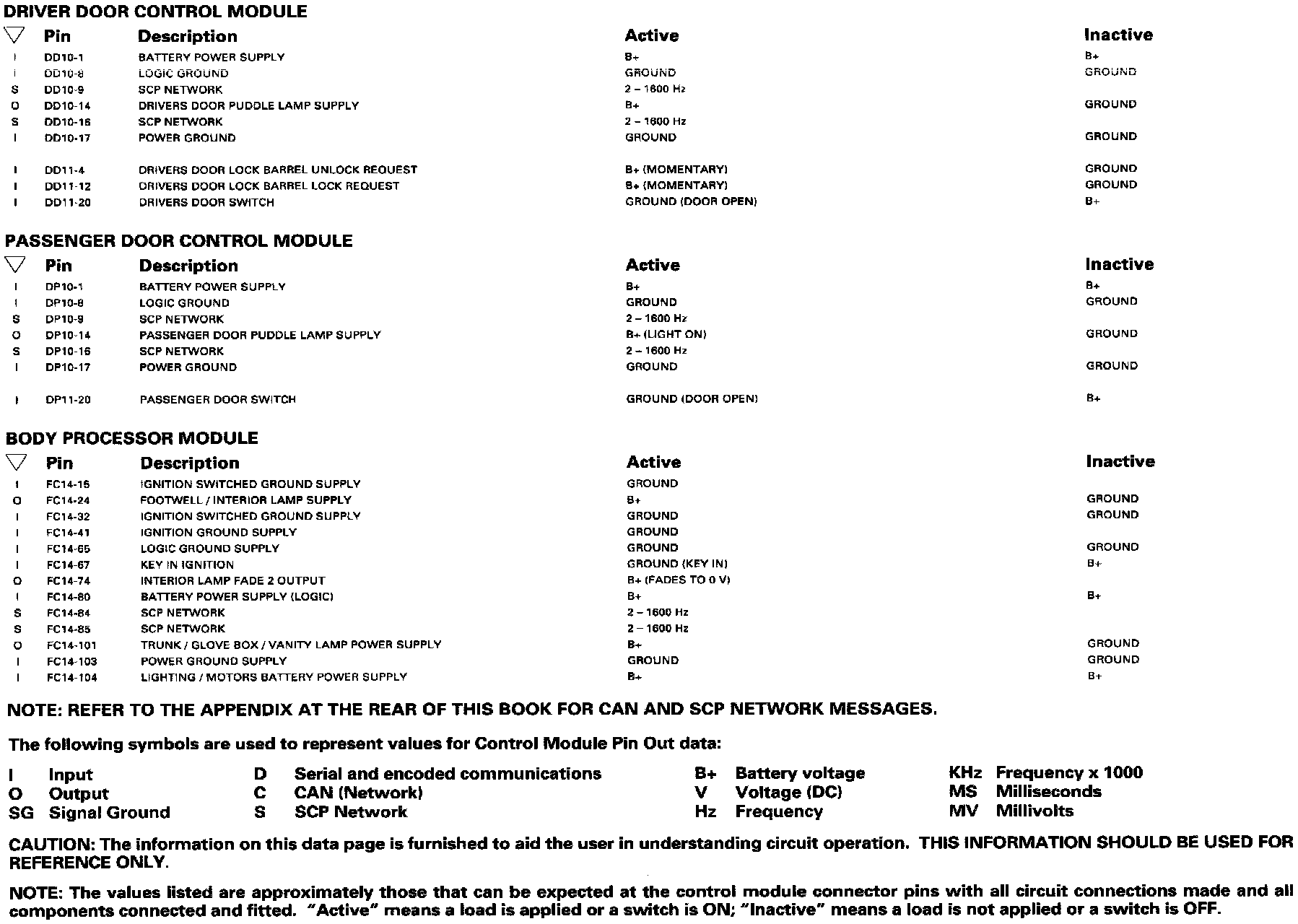

Interior Lighting: Control Module Pin Out Information:

Control Module Pin Out Informations
