Block Diagram

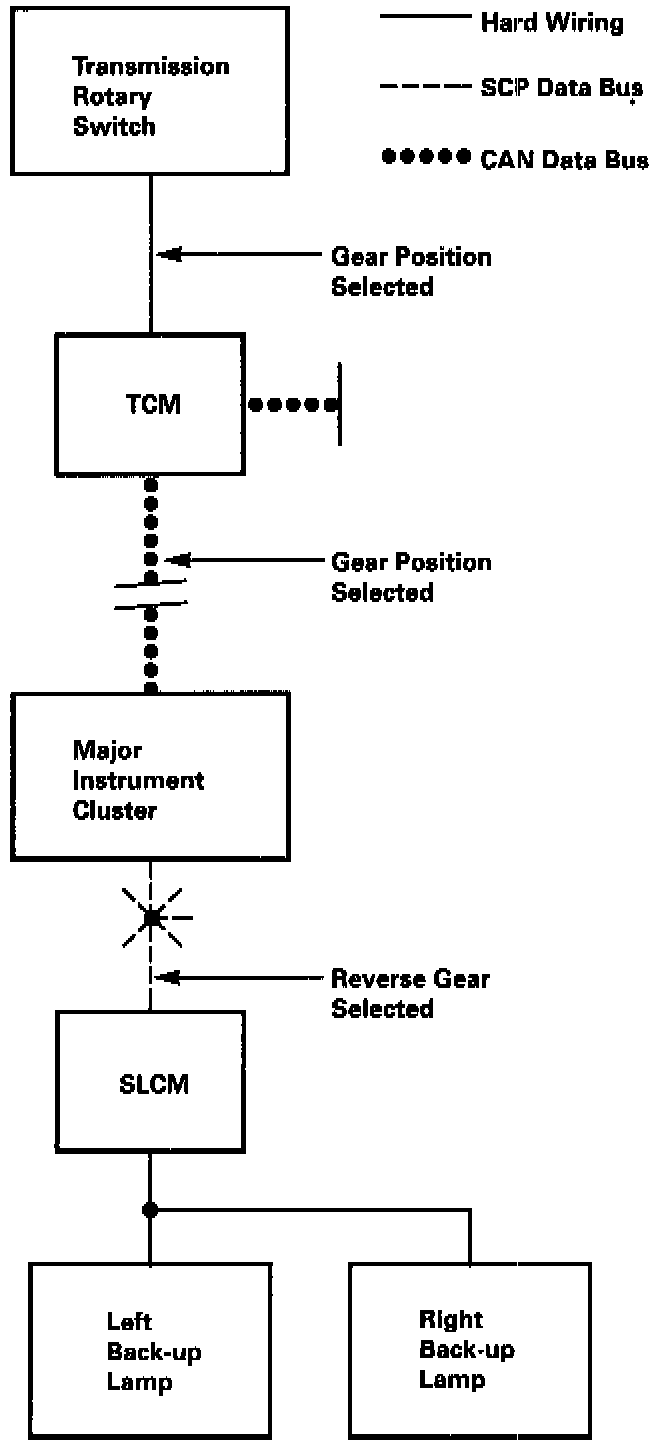

Back-up Lamps Control:

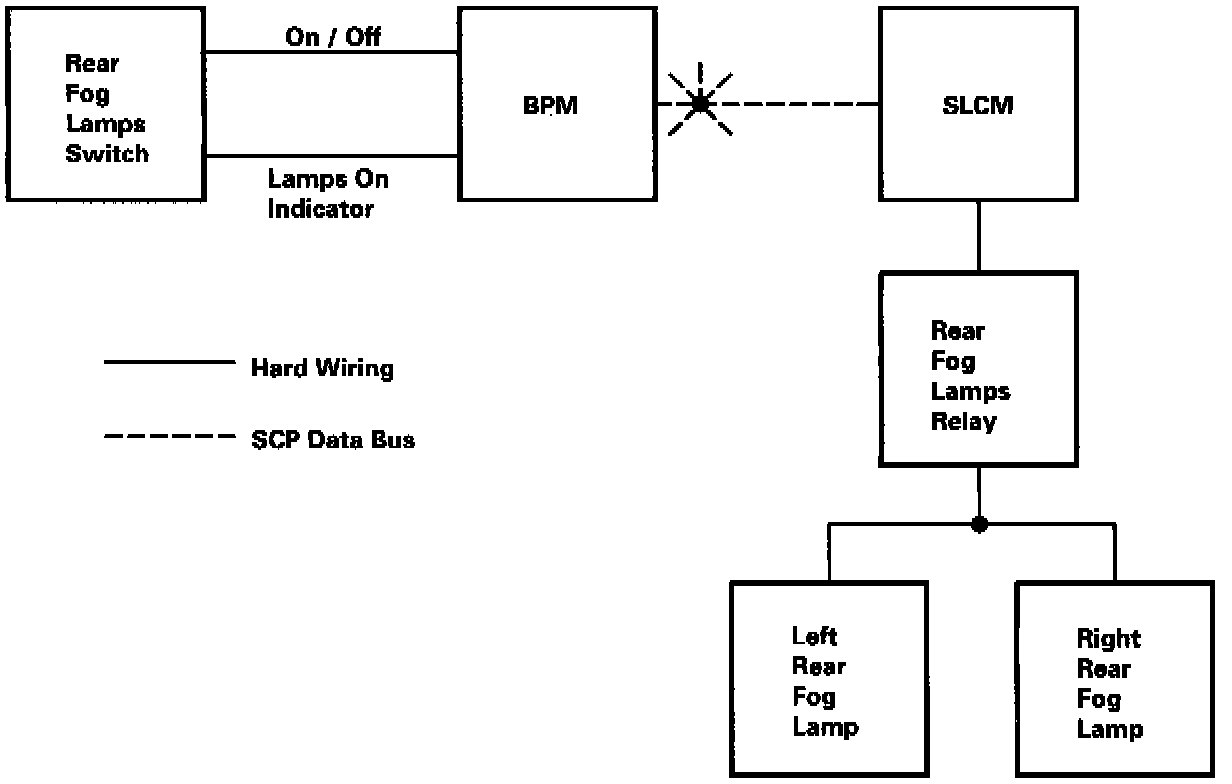

Rear Fog Lamps Control:

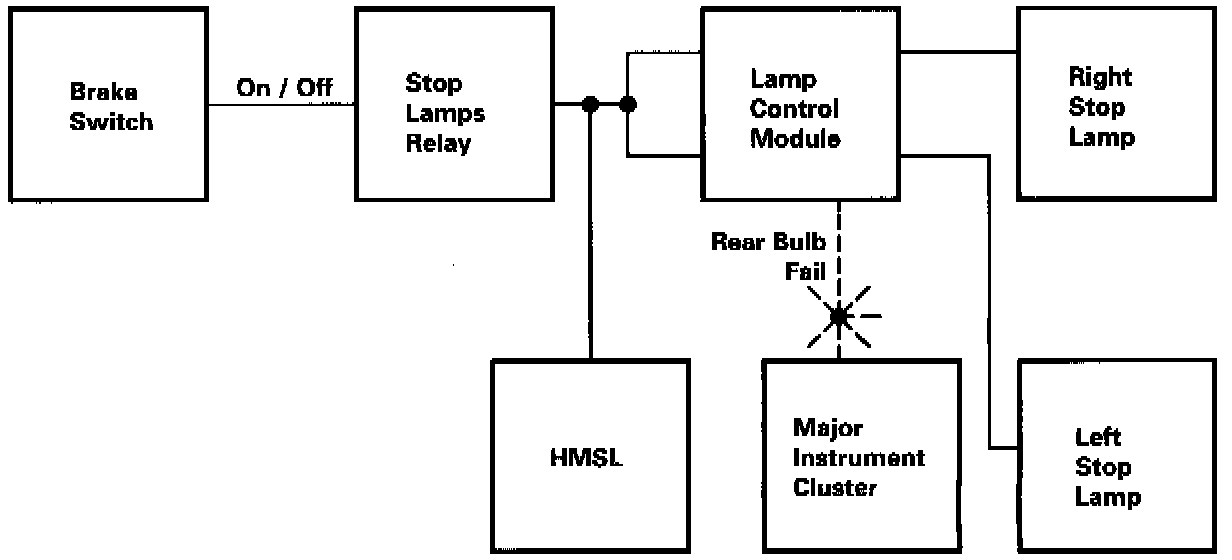

Stop Lamps Control:

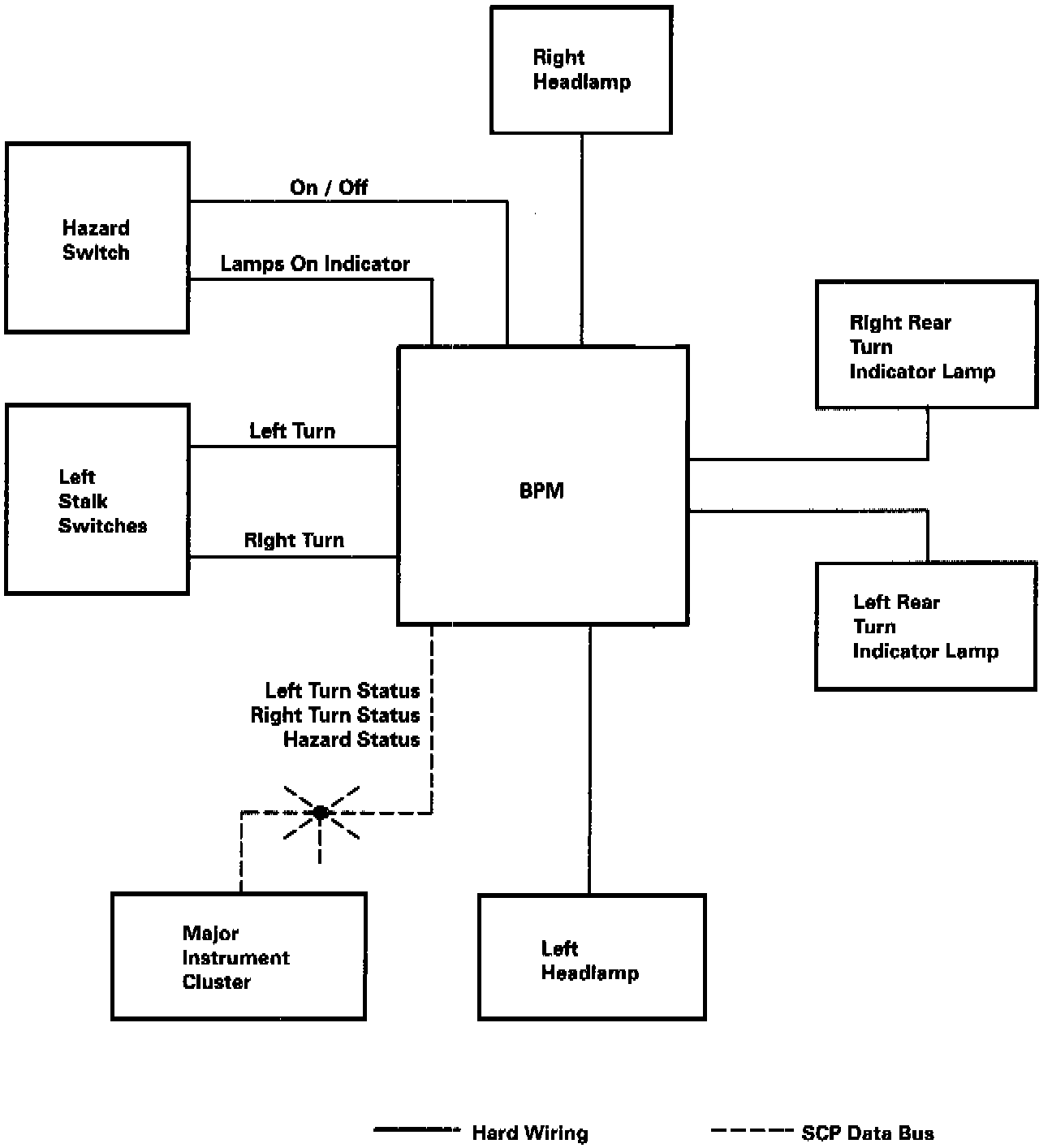

Turn Indicator Lamps Control:

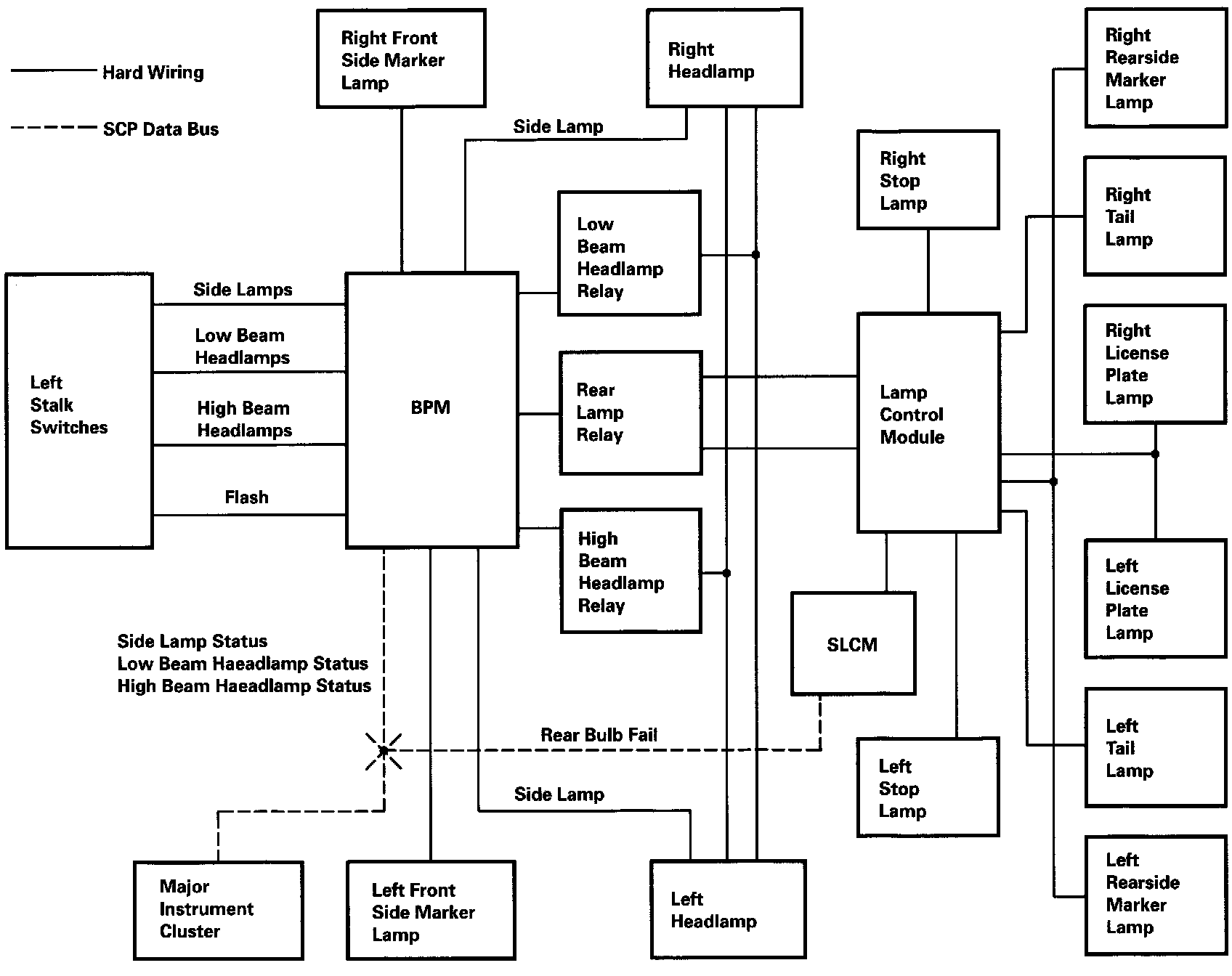

Exterior Lighting:
