Air Conditioning Unit

Air Conditioning Unit

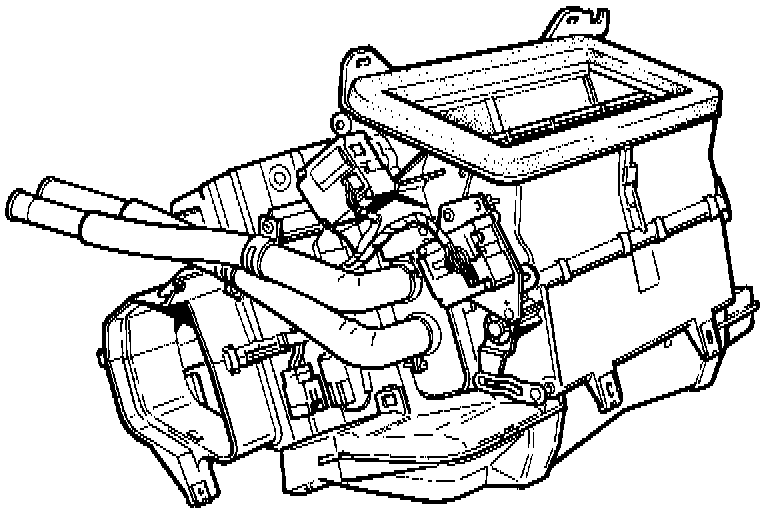

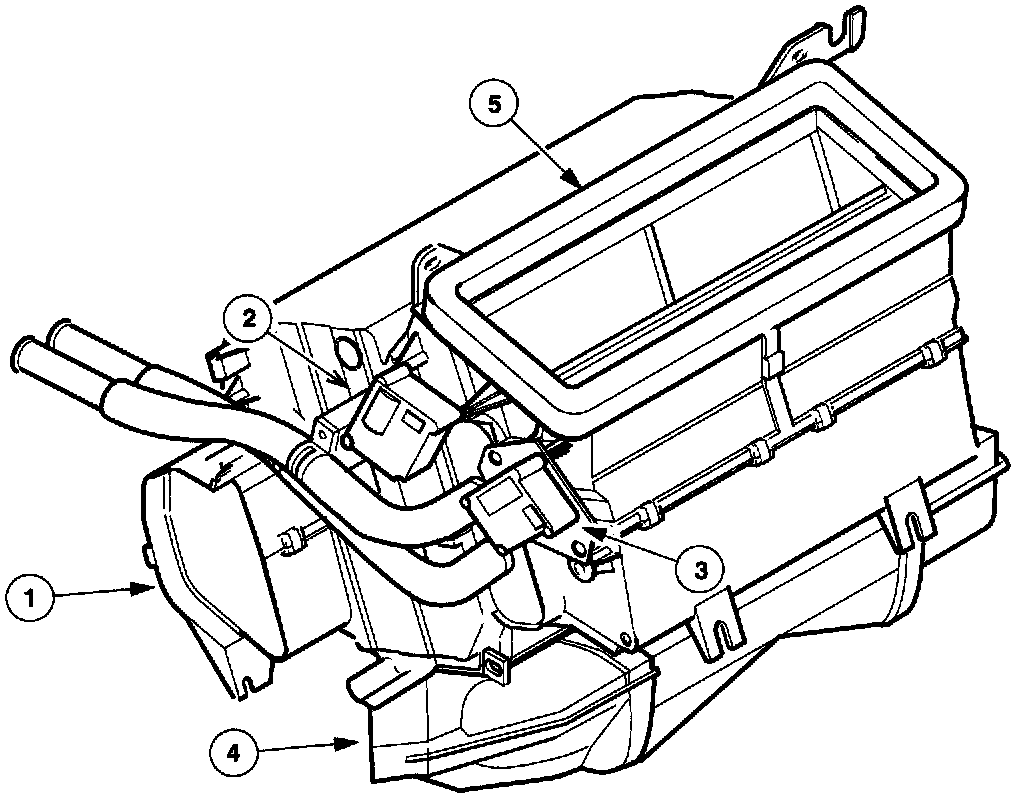

Item Description
1 Left-hand air inlet
2 Cool air bypass servomotor
3 Front footwell air outlet servomotor
4 Front footwell air outlet
5 Outlet to upper air distribution unit

The heater/air conditioning unit:
- Is located centrally behind the fascia panel.
- Houses the heater matrix and air conditioning evaporator.
- Contains the air distribution flaps.

Air Conditioning/Heater Unit:

The A/C unit casing incorporates two servo motors which alter flaps to change air direction within the unit casing and/or cabin. The motors are driven by Air Conditioning Control Module (A/CCM) signals both clockwise and anti-clockwise. As the 95MY sedan, the expansion valve is fitted into the A/C unit. Servo motor position is monitored by a feedback potentiometer in each motor housing. System servos are; right-hand and left-hand air intake fresh/recirculated air) on blower units, center vent, defrost on the air distribution box and foot and cool air by-pass, part of the A/C unit.
