���@��u����p(�Climate Control, Part2:

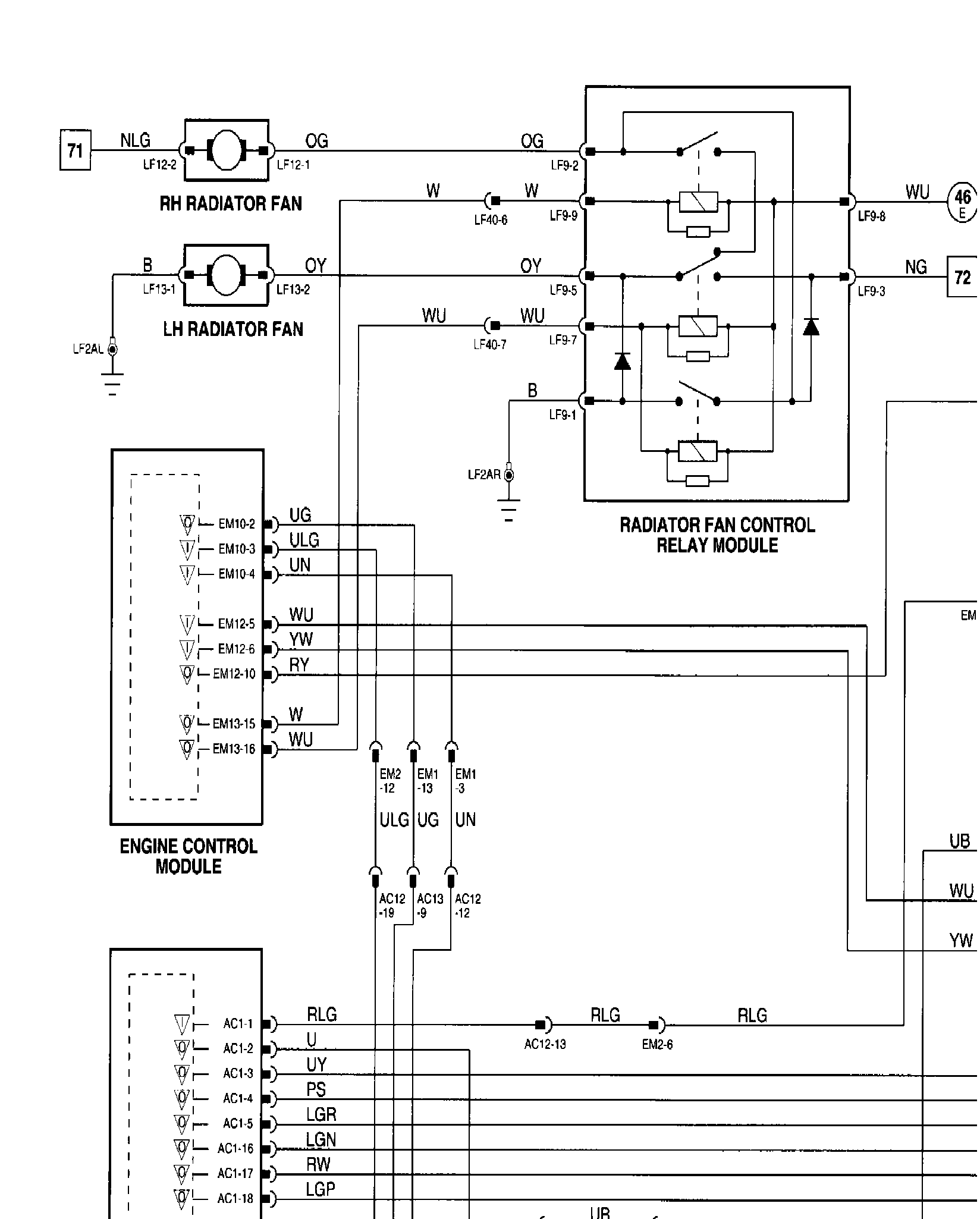

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

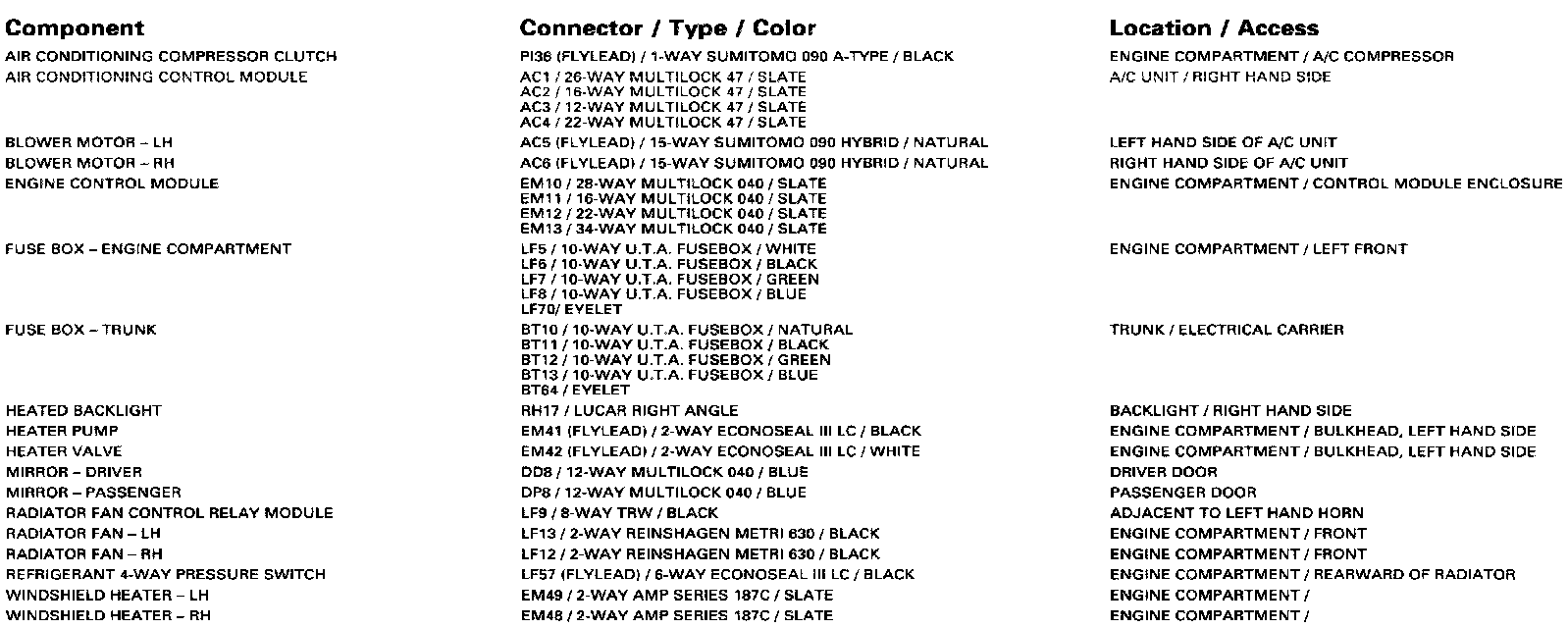

Climate Control, Part2: Components:

Components Informations

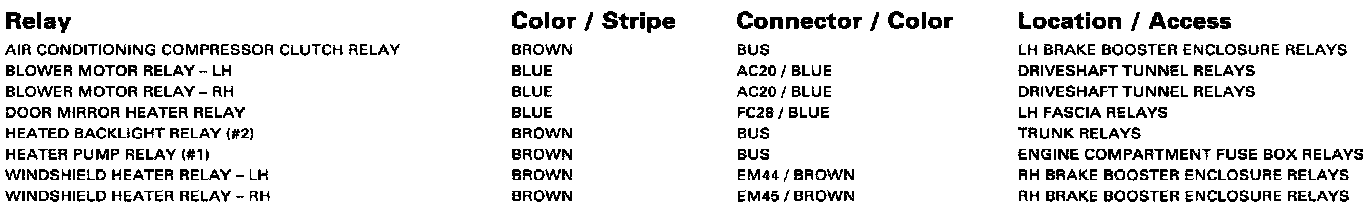

Climate Control, Part2: Relays:

Relays Informations

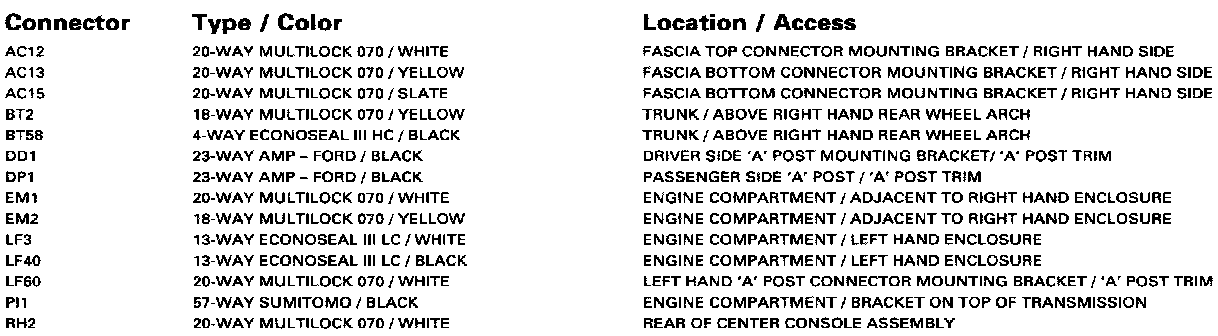

Climate Control, Part2: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

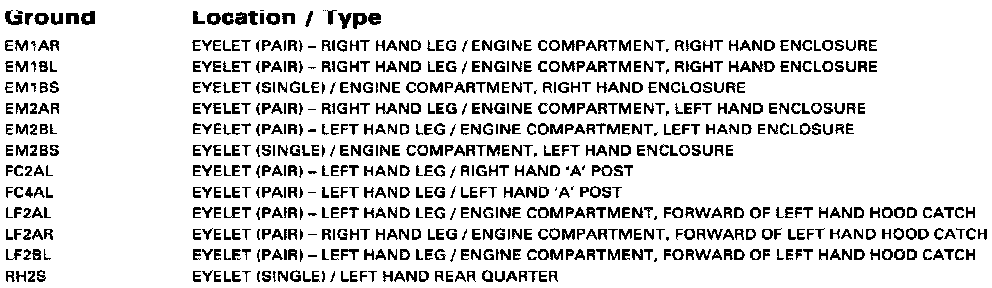

Climate Control, Part2: Grounds:

Grounds Informations

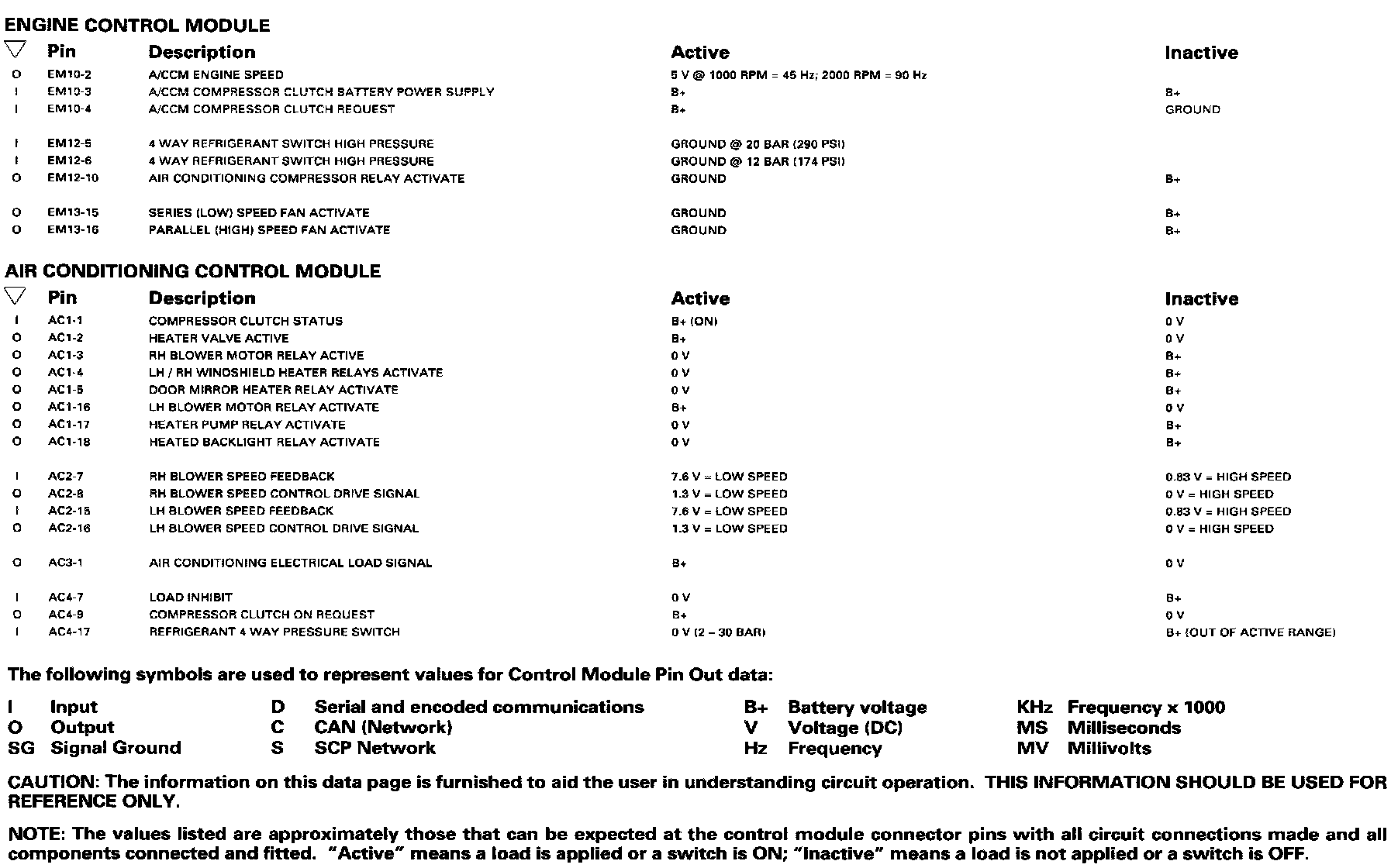

Climate Control, Part2: Control Module Pin Out Information:

Control Module Pin Out Informations
