Upper Air Distribution Unit

Upper Air Distribution Unit

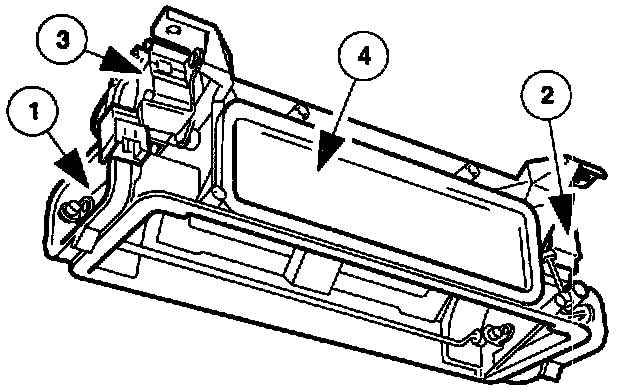

Upper Air Distribution Unit:





Item Description
1 Front windshield air outlet
2 Center fascia air outlet servomotor
3 Front windshield servomotor
4 Center fascia air outlet

The upper air distribution unit is mounted on top of the heater/air conditioning unit.
