Internal Components and Air Distribution

Internal Components and Air Distribution

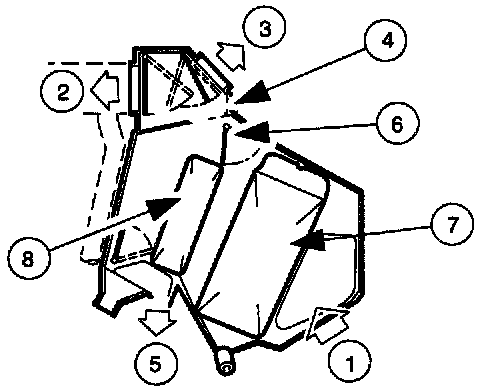

Internal Components And Distribution:

Item Description
1 Air in (from left- and right-hand blower units
2 Air to center fascia outlets
3 Air to defrost outlets
4 Air to left- and right-hand side outlets
5 Air to front footwell
6 Cool air bypass damper
7 Evaporator
8 Heater matrix

The unit houses the servomotor operated flaps which control the movement of air within the unit or to the cabin.

Flaps are provided for:
- Left-band air intake.
- Right-hand air intake.
- Center air outlet.
- Defrost air outlet. Foot and cool air by-pass.
- Foot and cool air by-pass
