Tensioner Pulley

Tensioner Pulley

Removal
1. Remove the drive belt for access.

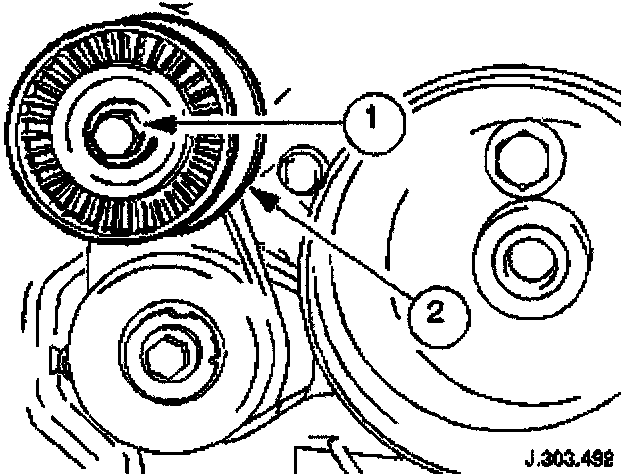

2. Remove the tensioner pulley from the arm.
Remove the securing bolt, left hand thread, from the tensioner pulley.
Remove the tensioner pulley from the arm.

Installation
1. Installation is the reverse of the removal procedure. Tighten the pulley securing bolt, left hand thread, to the correct torque figure. Ensure that the belt is correctly and squarely located on each pulley.
