Drive Belt Tensioner: Description and Operation

Automatic Belt Tensioner

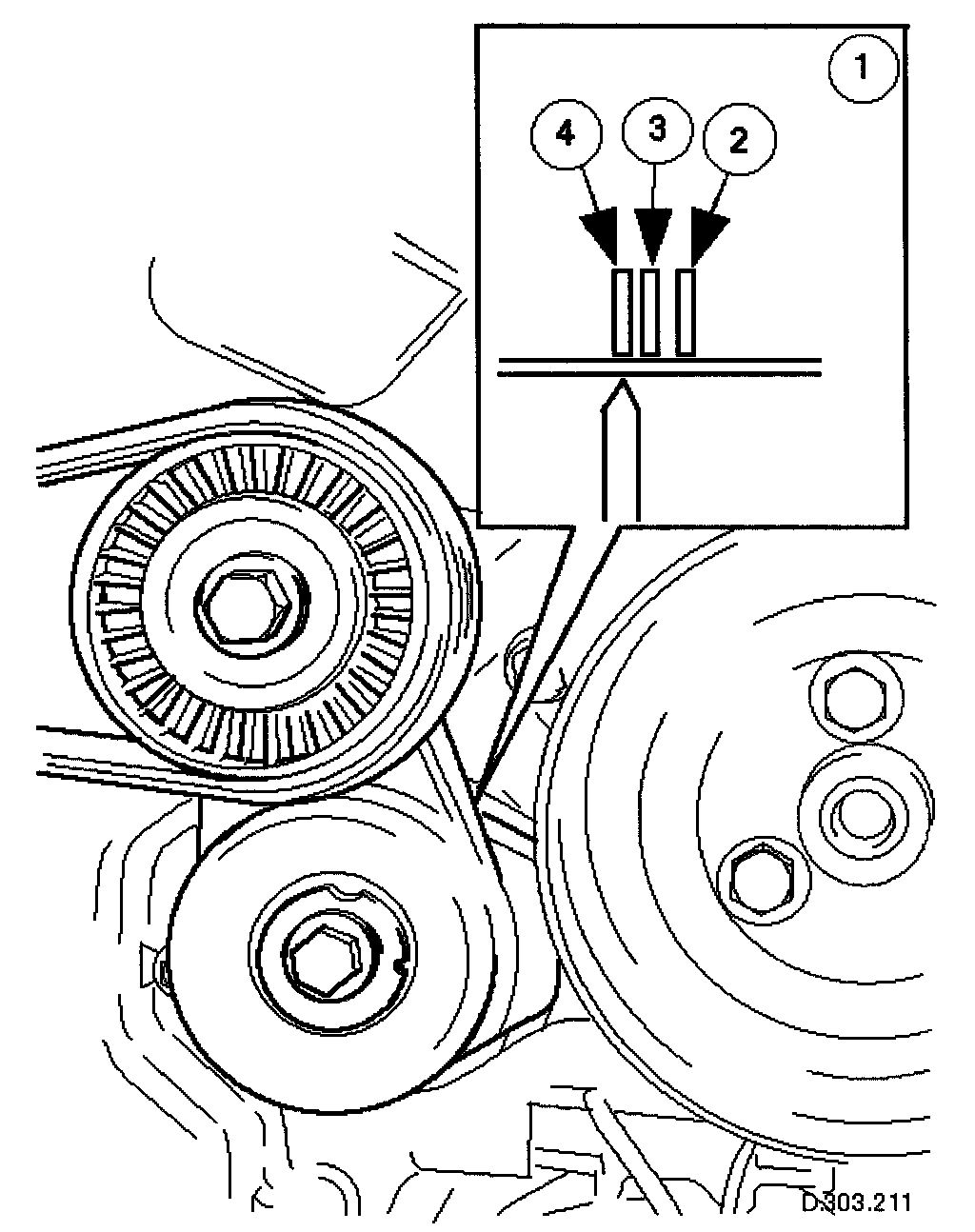

The automatic belt tensioner consists of an idler pulley which is free to rotate on a bearing, located at the end of a spring-loaded pivot arm.
The pivot arm can be turned counter-clockwise (viewed from the front of the engine) for belt removal and installation.

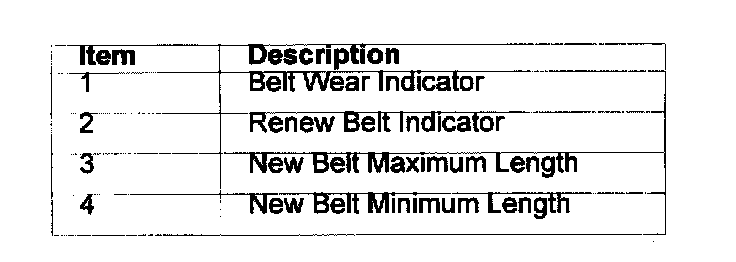

A belt-wear indicator is incorporated on the rear horizontal face of the pivot arm.
