Cooling Fan Shroud 26.25.30

Fan Motor Mounting Frame 26.25.30

Removal
1. Remove the Twin Fan and Motor Assembly.
2. With twin fan and motor assembly on the bench, remove both fan and motor units.

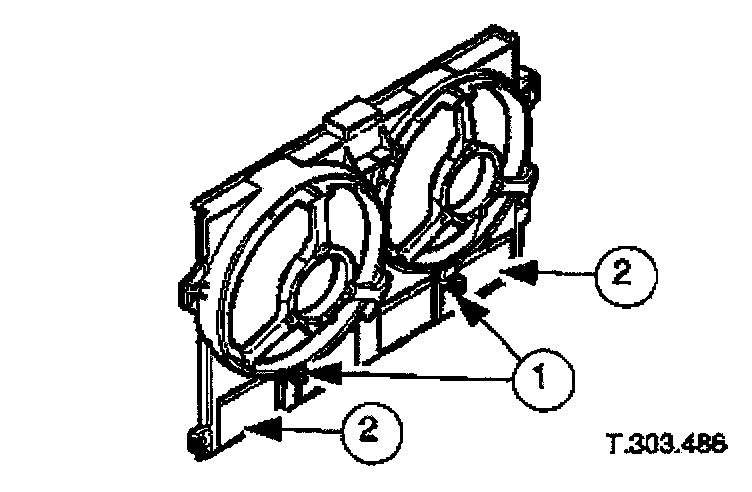

3. Remove the components from the mounting frame.
Remove the harness and pipe securing clips.
Remove the rubber vent flaps.

Installation
1. Installation is the reverse of the removal procedure.
