Coolant Level Probe

REMOVAL
1. Open the engine compartment and fit paintwork protection sheets.
2. Remove the expansion tank.

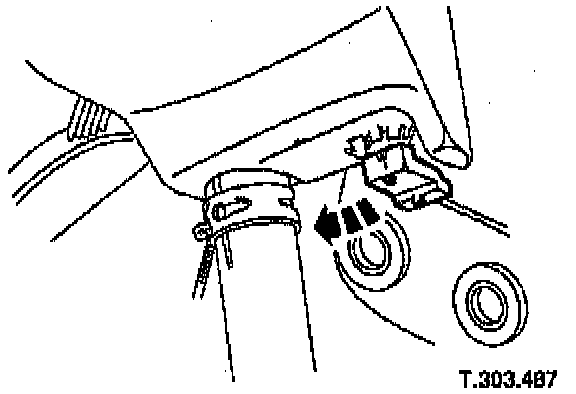

3. Remove the coolant level probe.
^ Use a lever to release the probe from the expansion tank and remove it.

4. Clean the expansion tank probe aperture.

INSTALLATION
1. Installation is the reverse of the removal procedure.
