Suspension Control ( Automatic - Electronic )

���~�����Ց�Suspension Adaptive Damping:

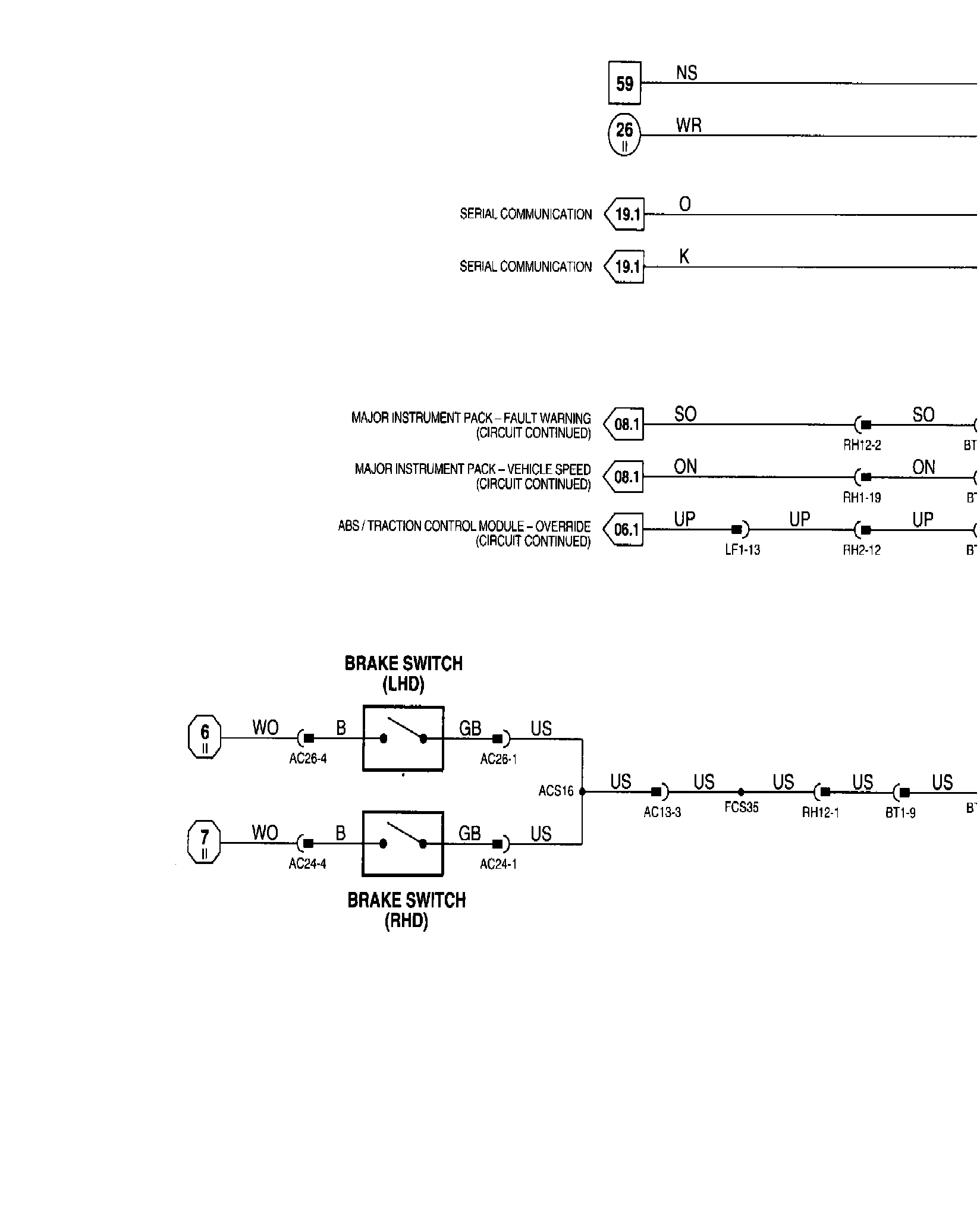

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

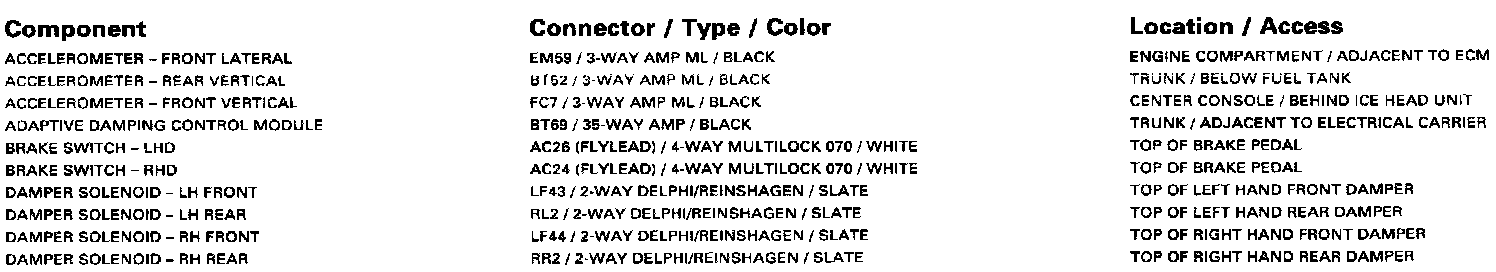

Suspension Adaptive Damping: Components:

Components Informations

Suspension Adaptive Damping: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

Suspension Adaptive Damping: Grounds:

Grounds Informations

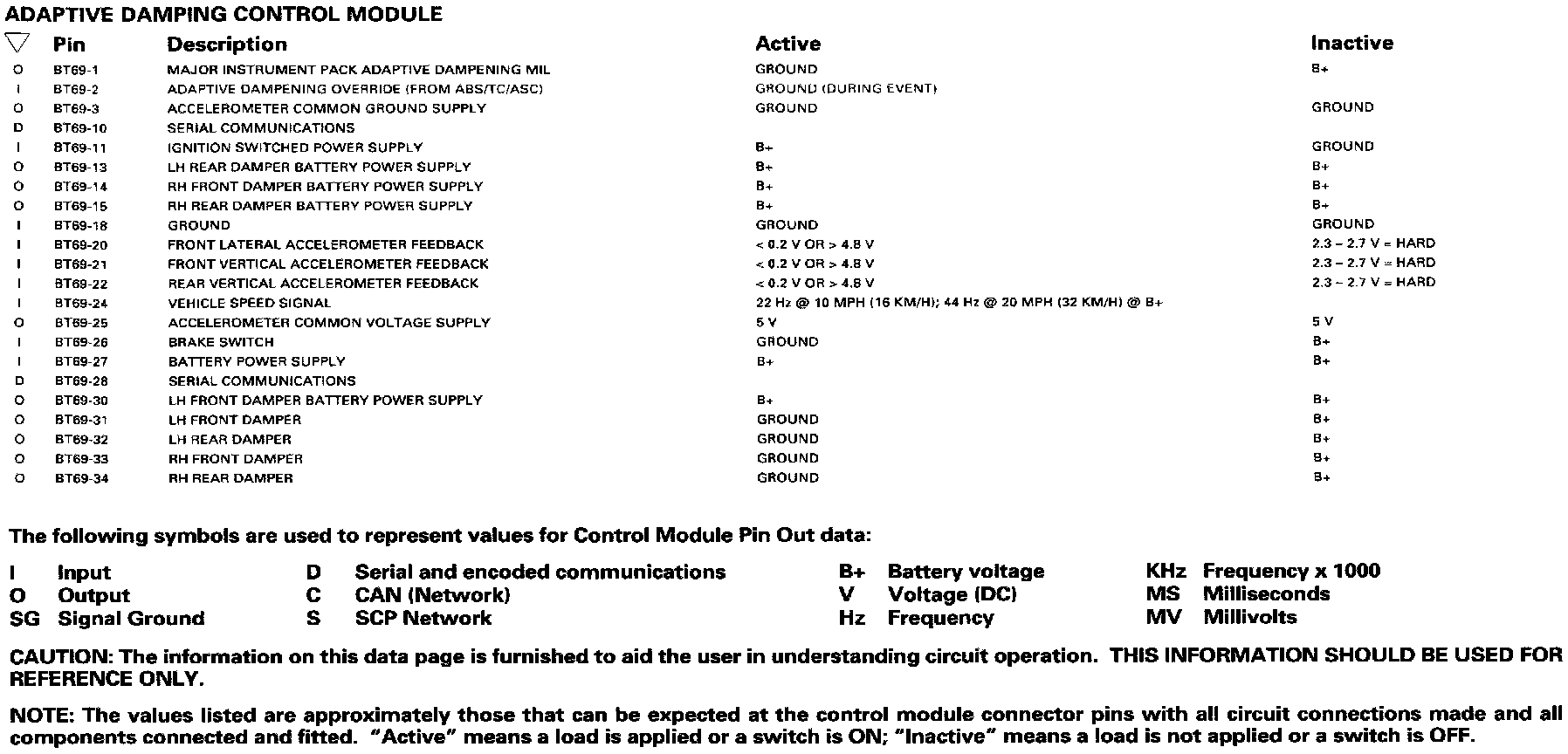

Suspension Adaptive Damping: Control Module Pin Out Information:

Control Module Pin Out Informations
