System Diagram

Ua�Power Assisted Steering:

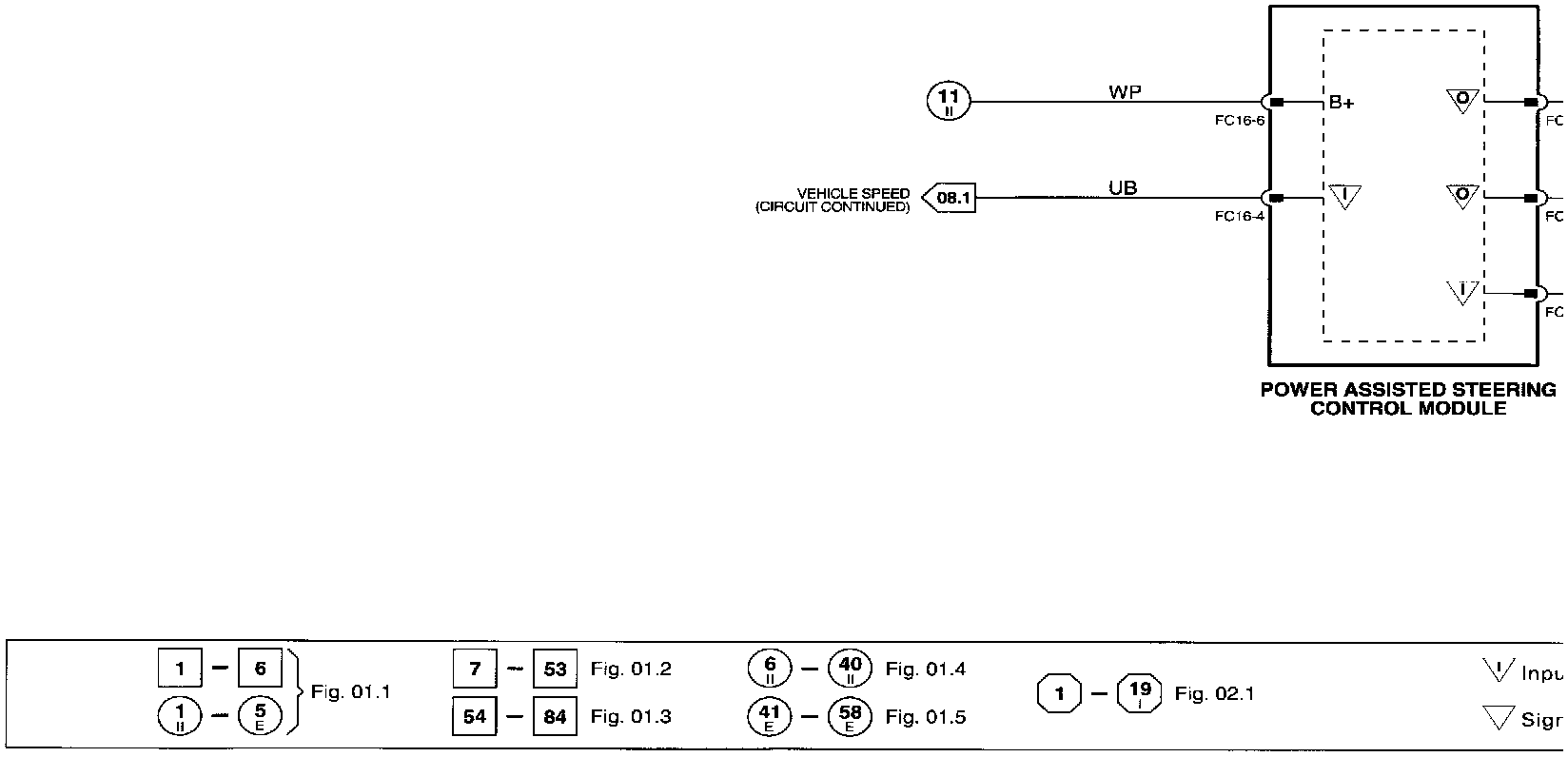

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

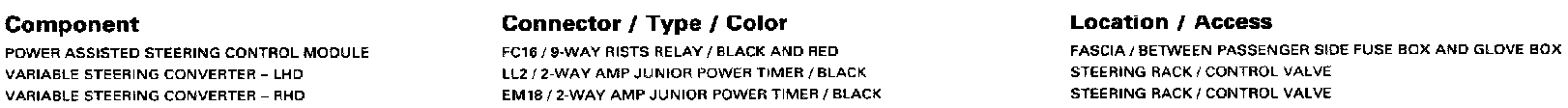

Power Assisted Steering: Components:

Components Informations

Power Assisted Steering: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

Power Assisted Steering: Grounds:

Grounds Informations

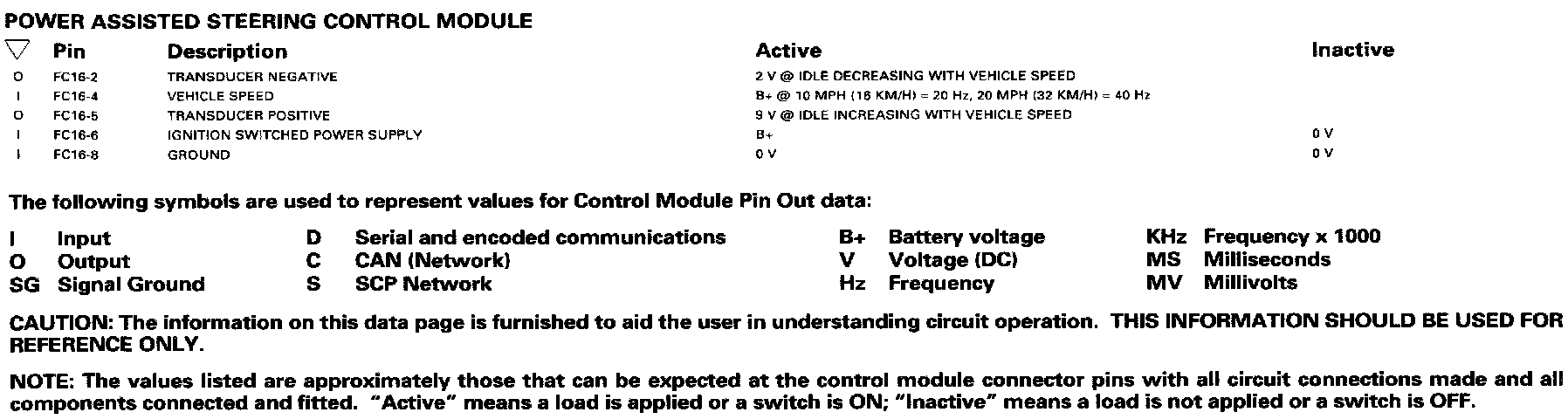

Power Assisted Steering: Control Module Pin Out Information:

Control Module Pin Out Informations
