System Diagram

�� �G�&R-Battery; Starter; Generator:

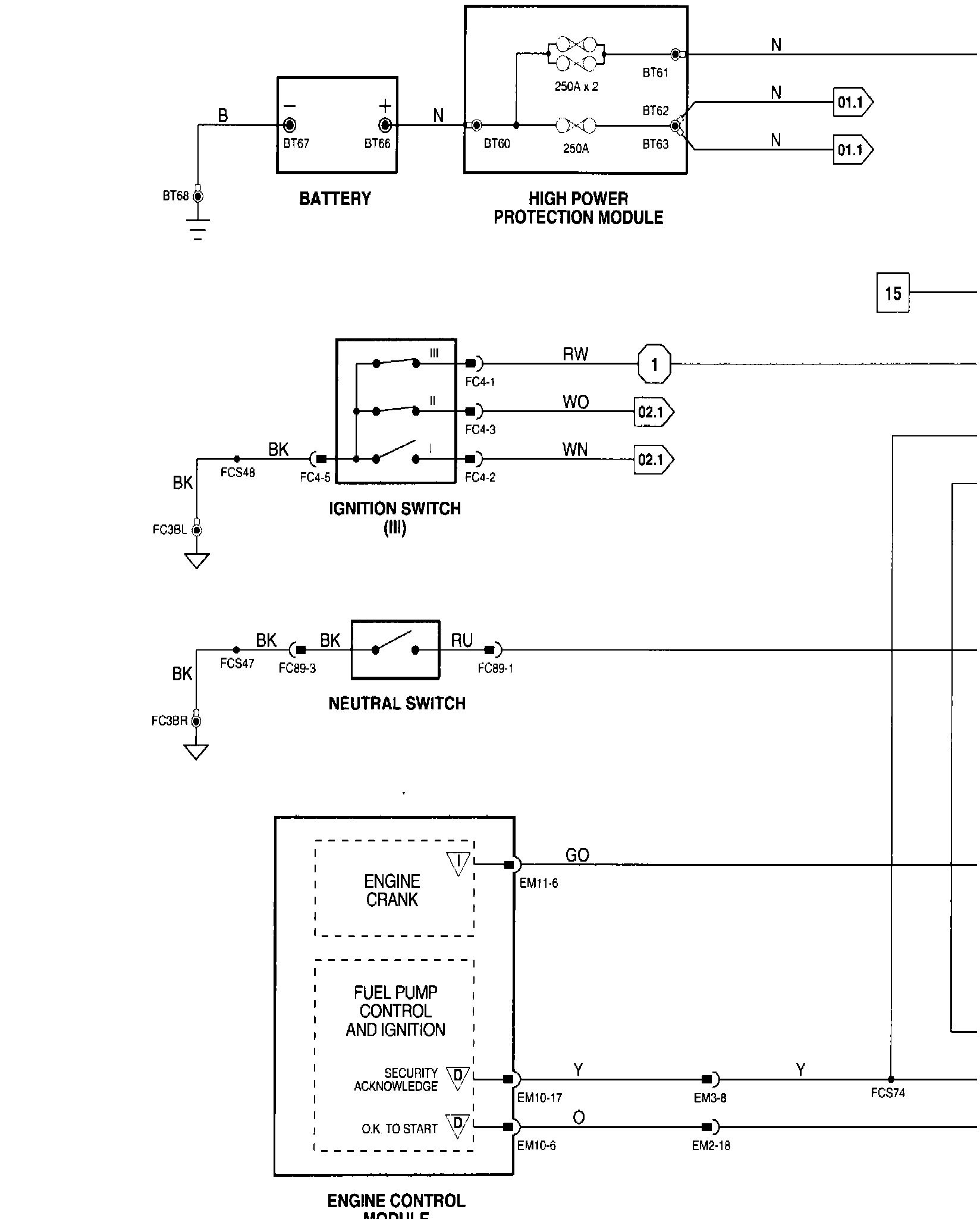

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

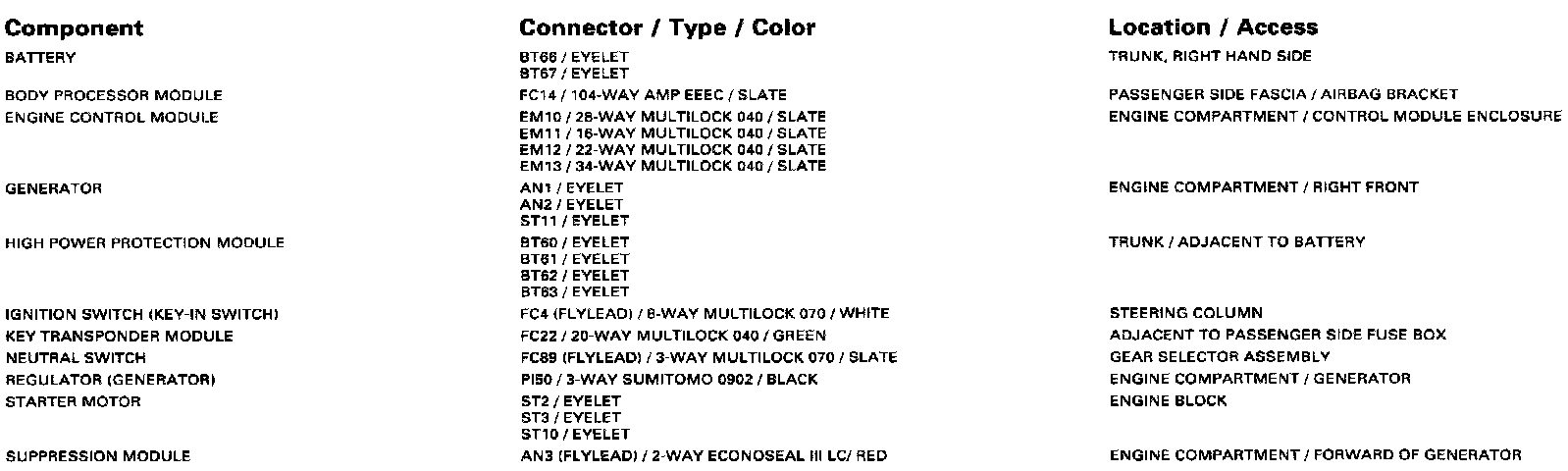

Battery; Starter; Generator: Components:

Components Informations

Battery; Starter; Generator: Relays:

Relays Informations

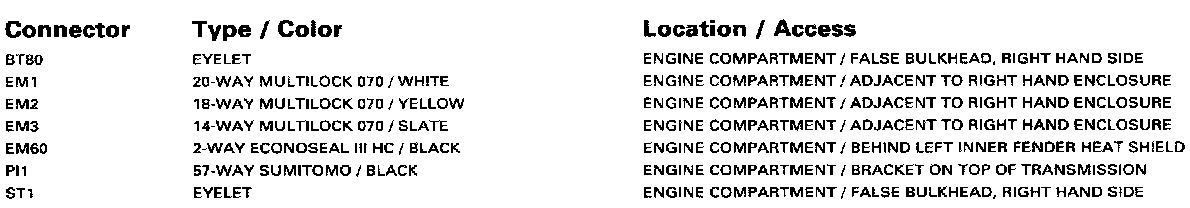

Battery; Starter; Generator: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

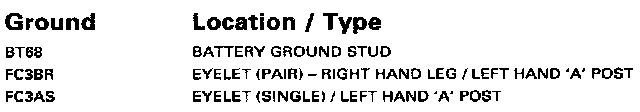

Battery; Starter; Generator: Grounds:

Grounds Informations

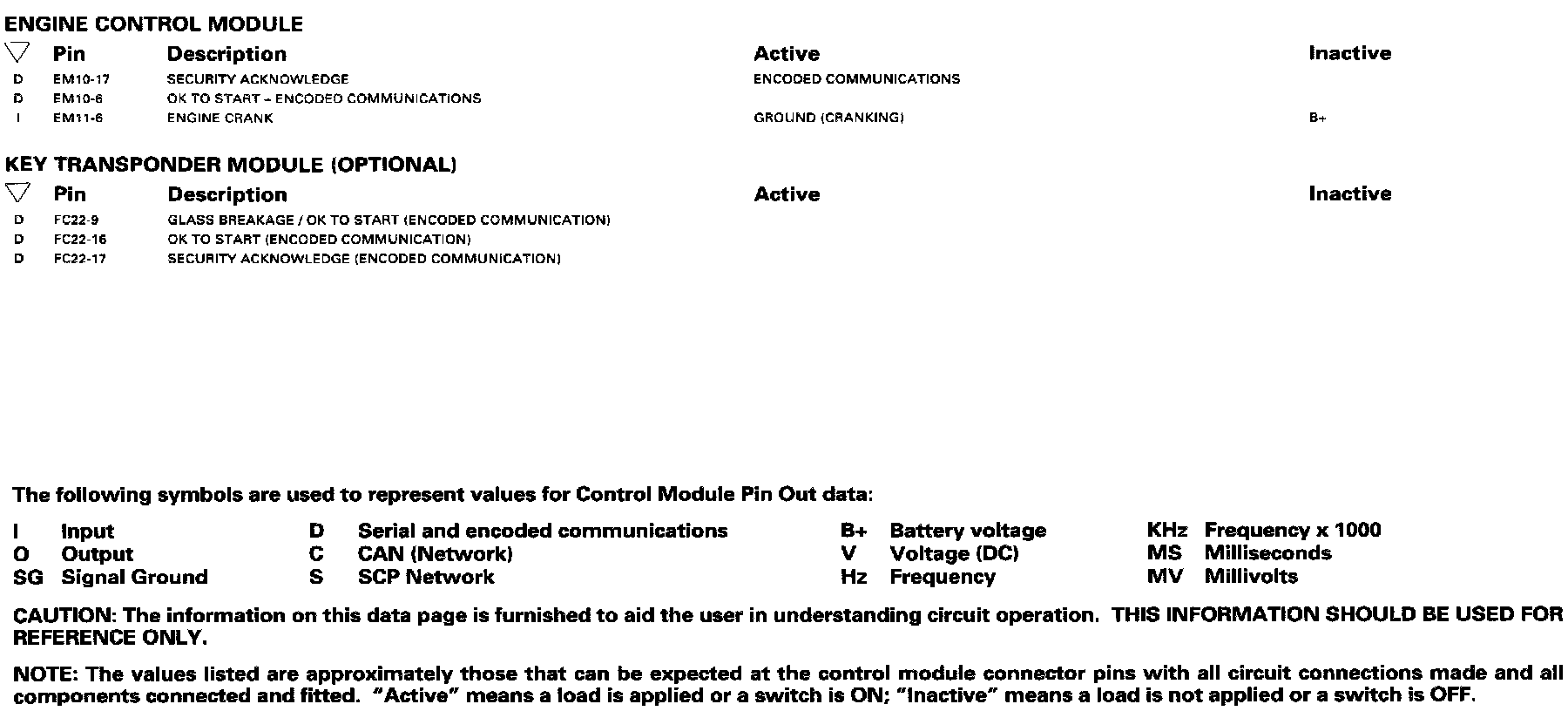

Battery; Starter; Generator: Control Module Pin Out Information:

Control Module Pin Out Informations
