Trunk, Engine Compartment, EMS Fuse Boxes

۾PH�Pp�PC�P�QBattery Power Distribution-Trunk, Engine Compartment, EMS Fuse Boxes:

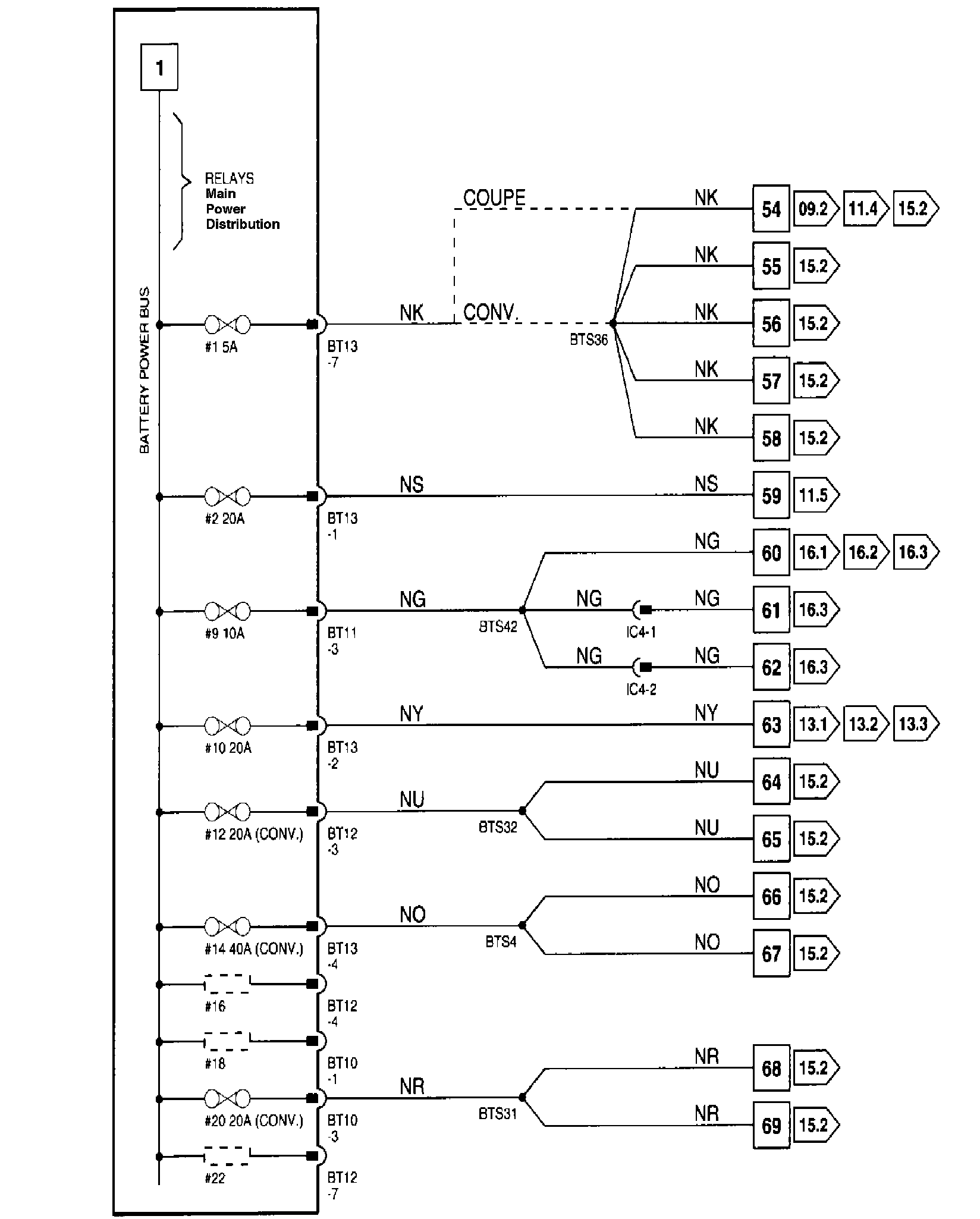

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

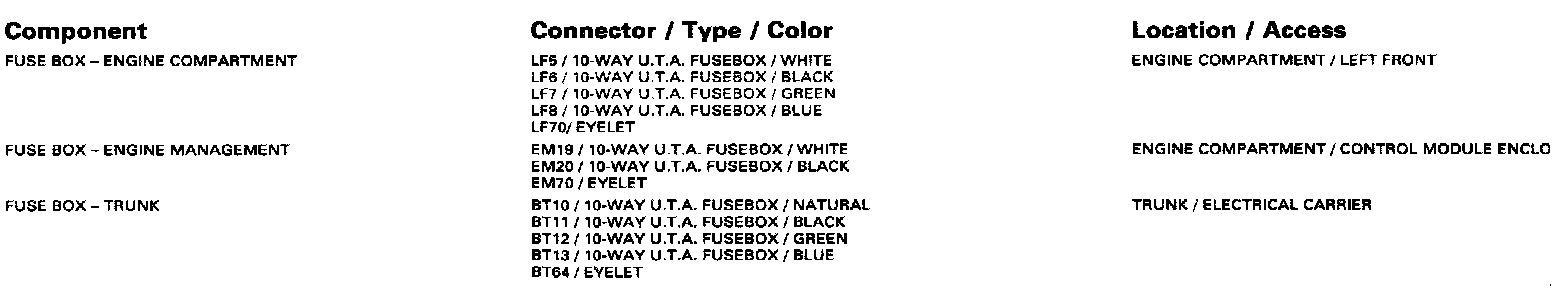

Battery Power Distribution-Trunk, Engine Compartment, EMS Fuse Boxes : Components:

Components Informations

Battery Power Distribution-Trunk, Engine Compartment, EMS Fuse Boxes : Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations
