Driver, Passenger Fuse Boxes

s�N��N3�Nw�N�OBattery Power Distribution-Driver And Passenger Side Fuse Boxes:

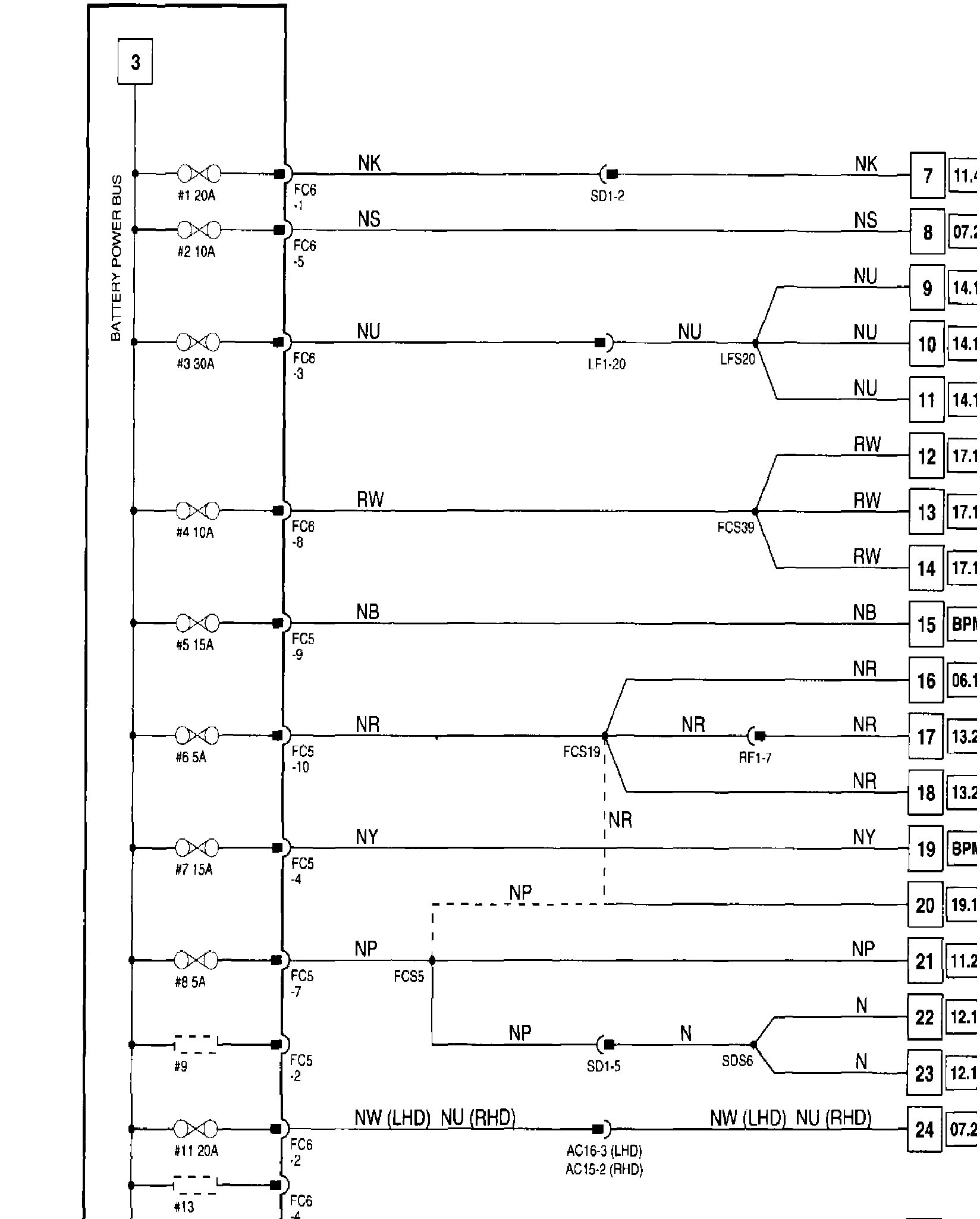

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

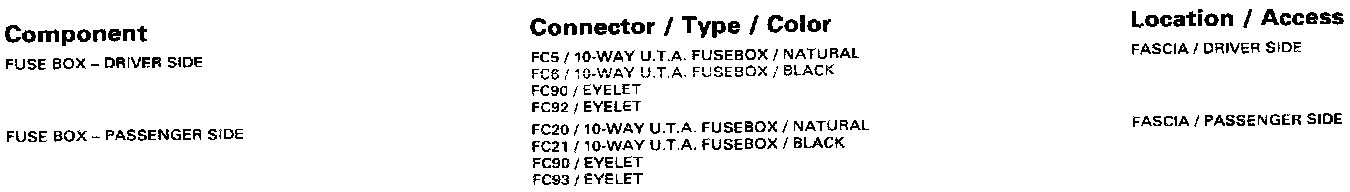

Battery Power Distribution-Driver And Passenger Side Fuse Boxes: Components:

Components Informations

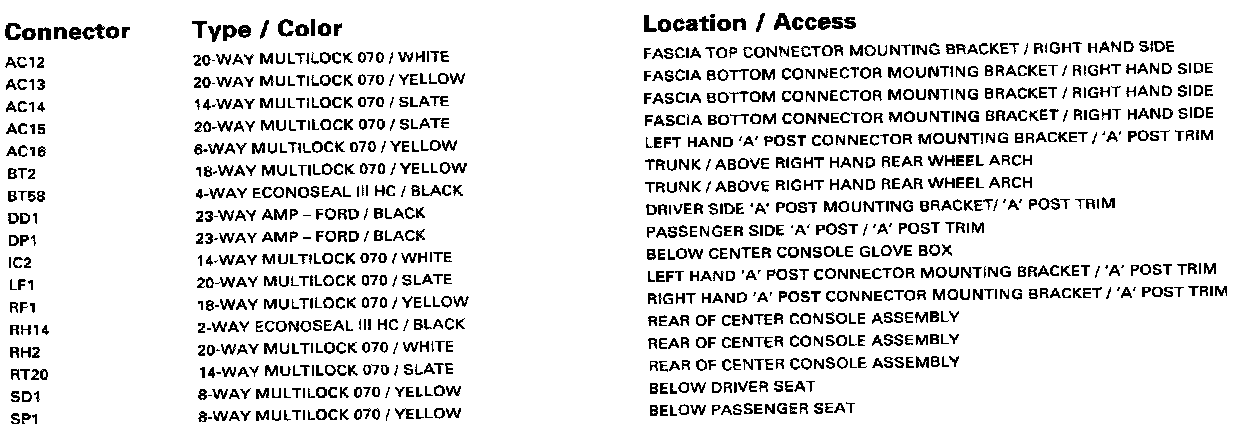

Battery Power Distribution-Driver And Passenger Side Fuse Boxes: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations
