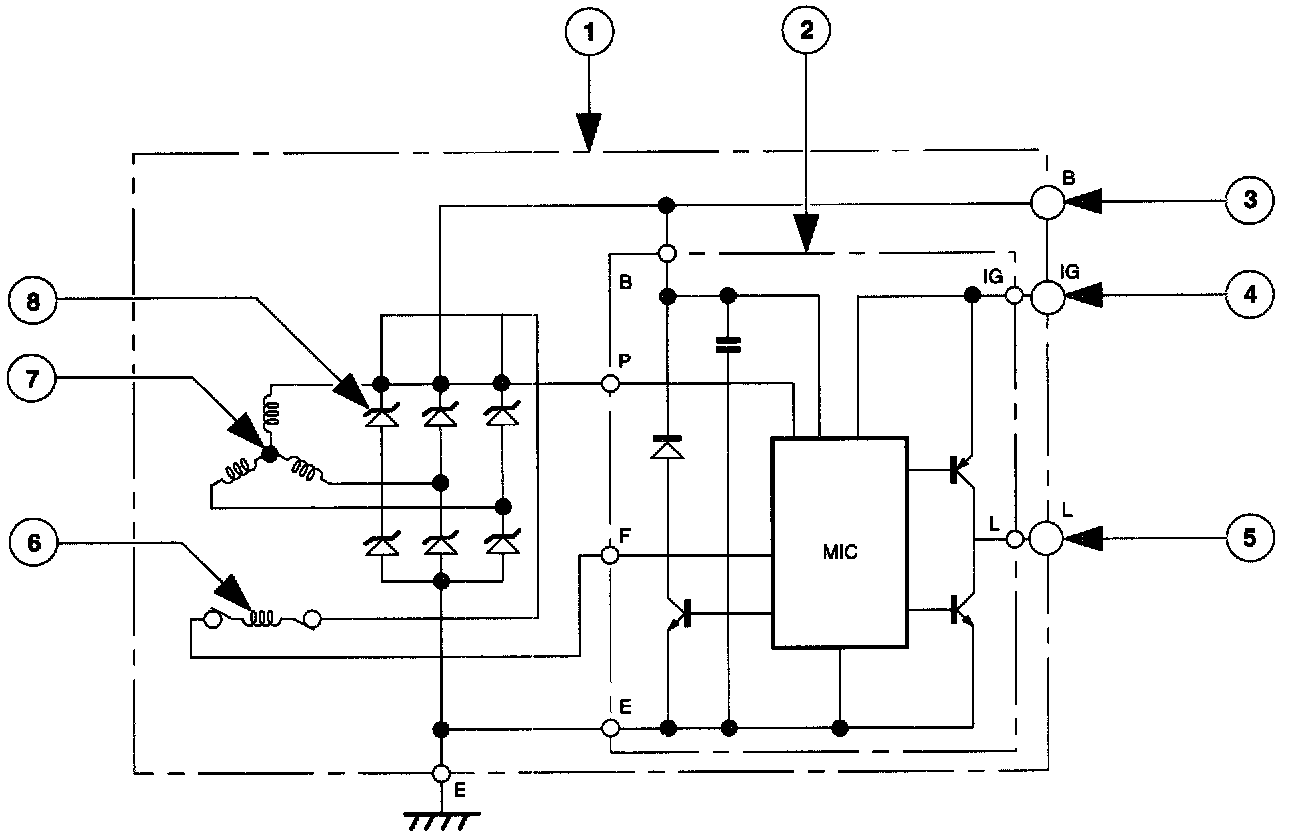

Alternator

Item Description
1 Generator Assembly
2 Voltage Regulator
3 Main Terminal "B+"
4 Ignition Supply Terminal "IG" to Rotor
5 Output Terminal L to Charge Lamp
6 Rotor
7 Stator
8 Rectifier Pack
