Restraints and Safety Systems

-X�e��}����}��Airbag System:

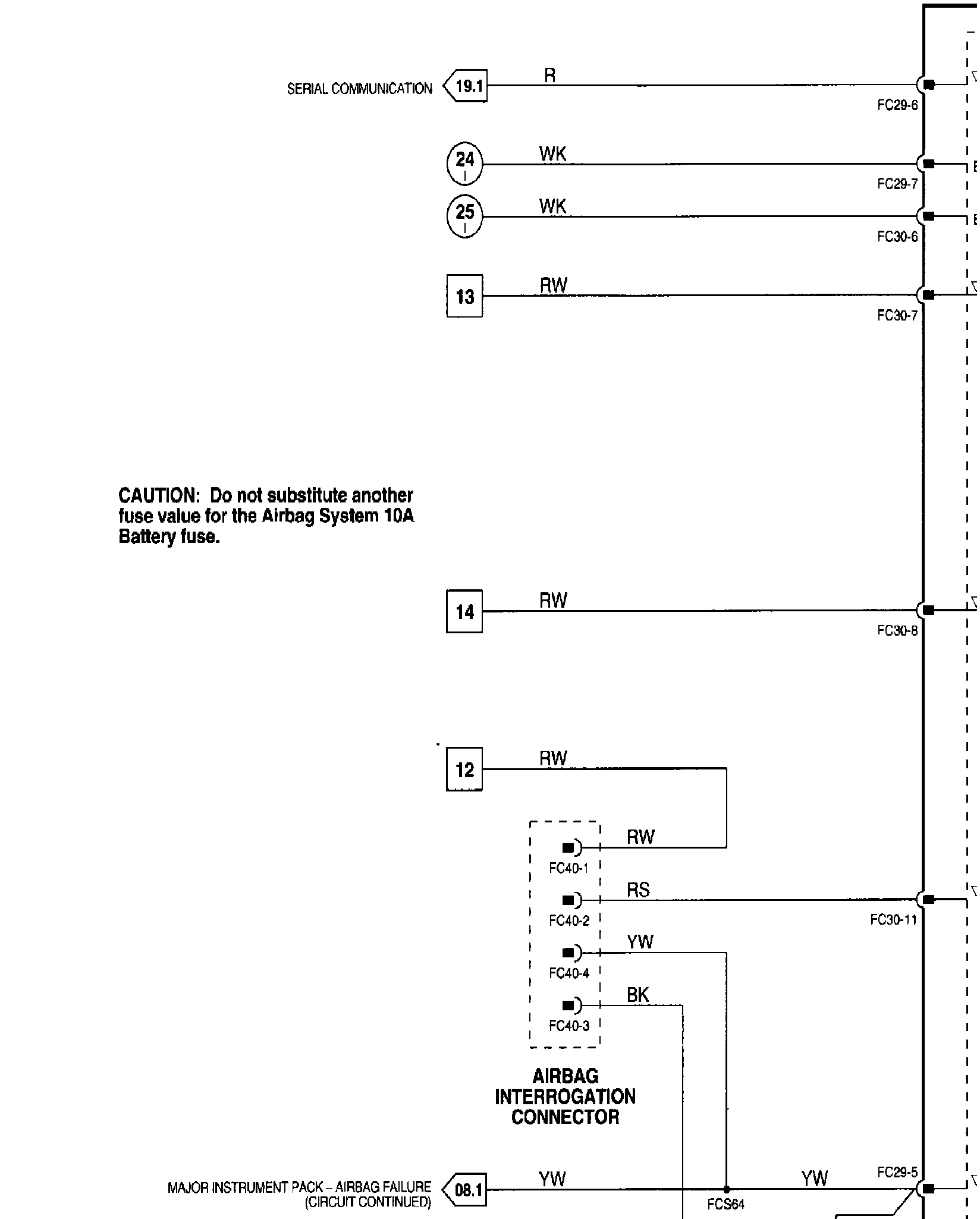

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

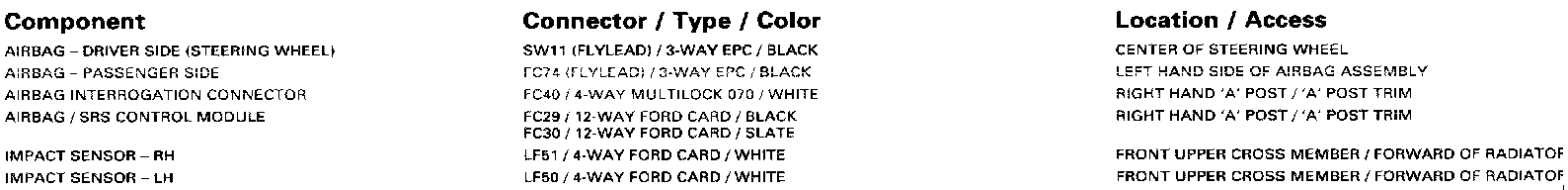

Airbag System: Components:

Components Informations

Airbag System: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

Airbag System: Grounds:

Grounds Informations

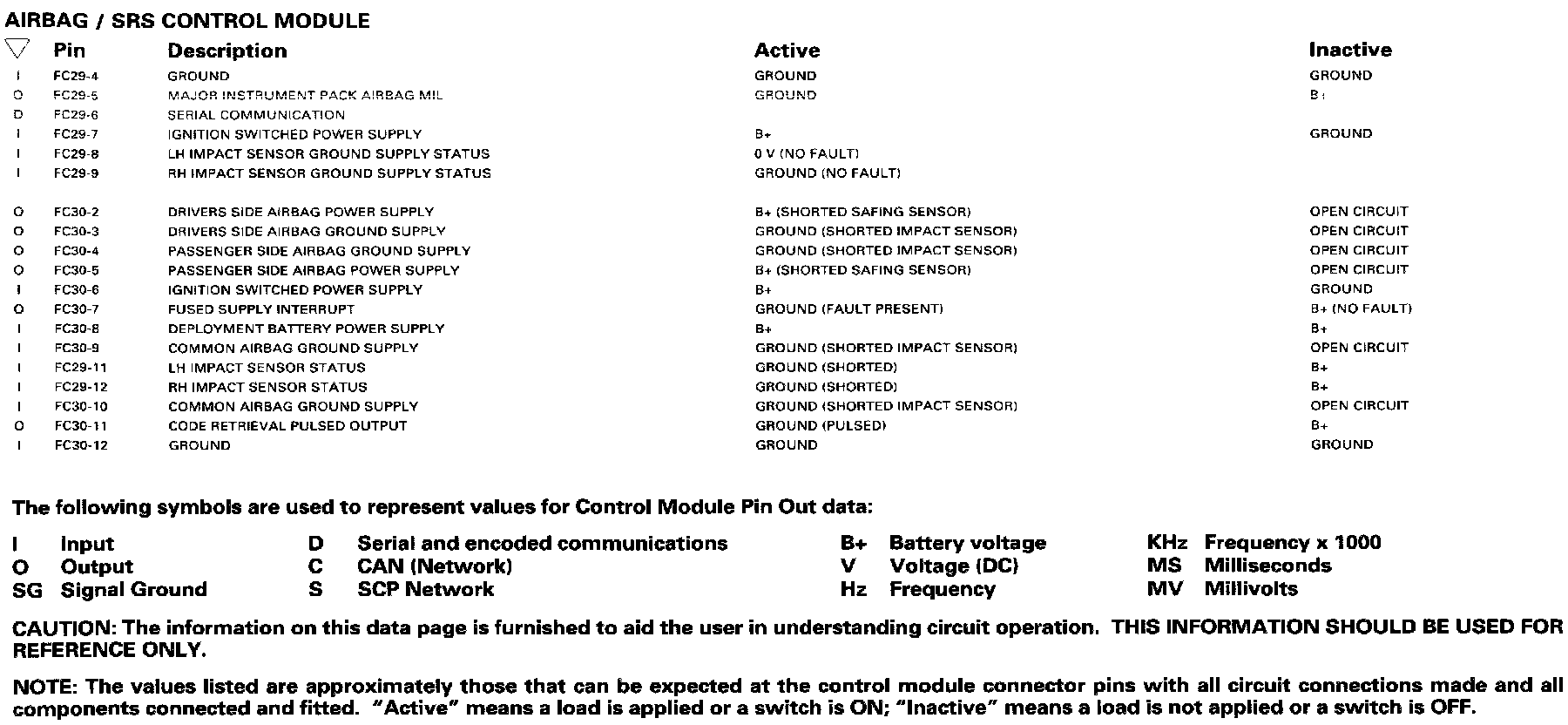

Airbag System: Control Module Pin Out Information:

Control Module Pin Out Informations
