Standard In-Car Entertainment

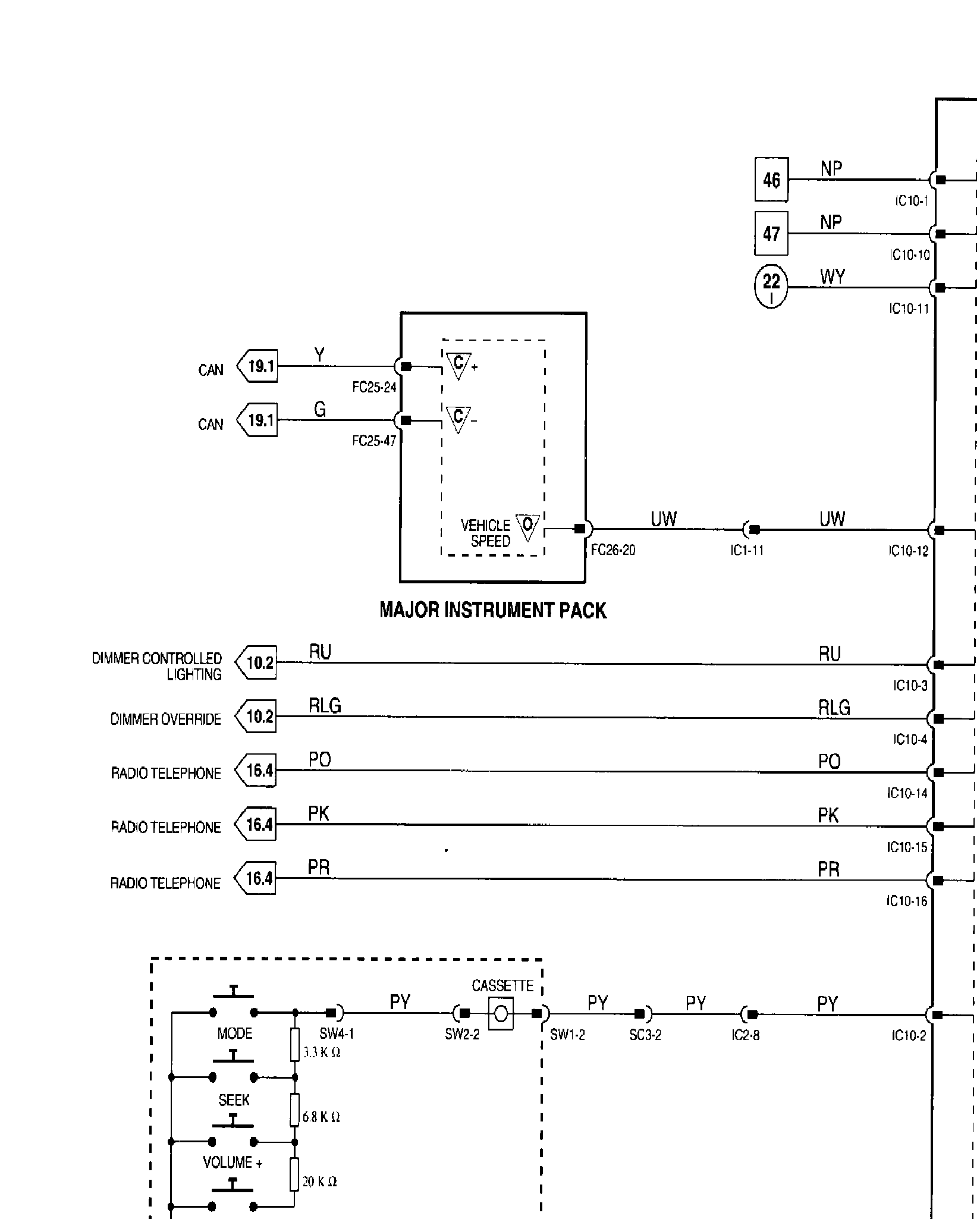

�0F �HF _F �oF (�F Wiring Diagram:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

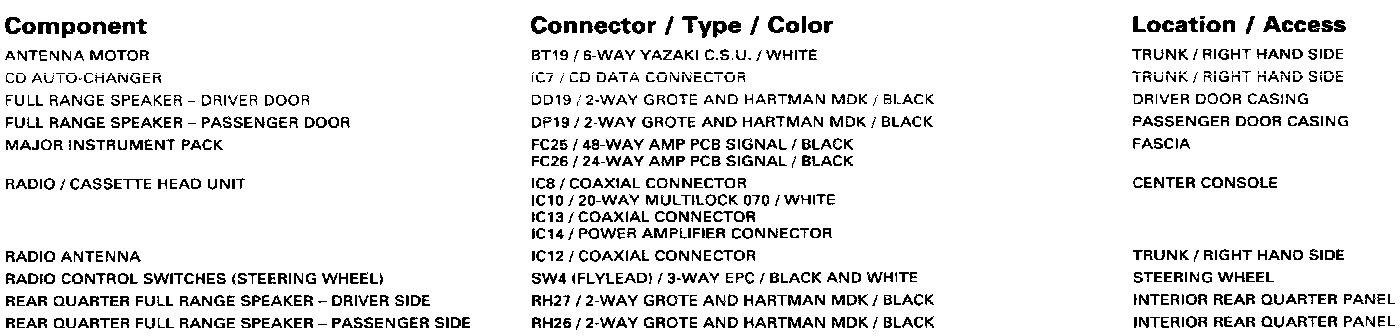

Components:
Harness-To-Harness Connectors:

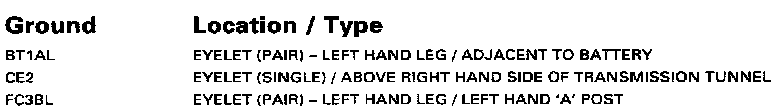

Convertible: Grounds:

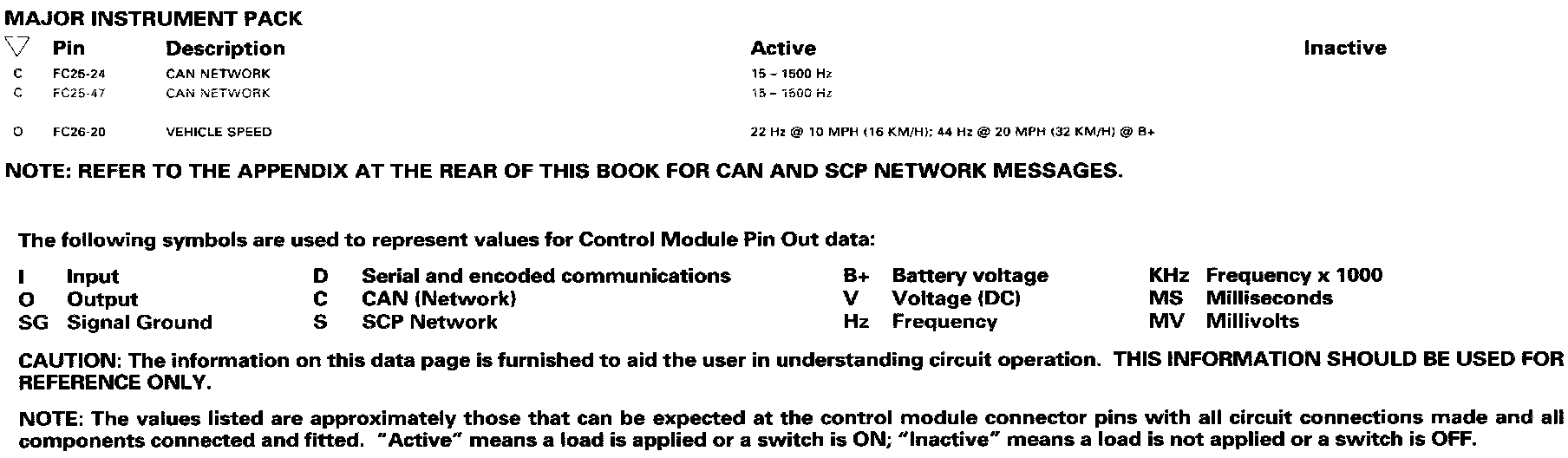

Control Module Pin Out Information:
