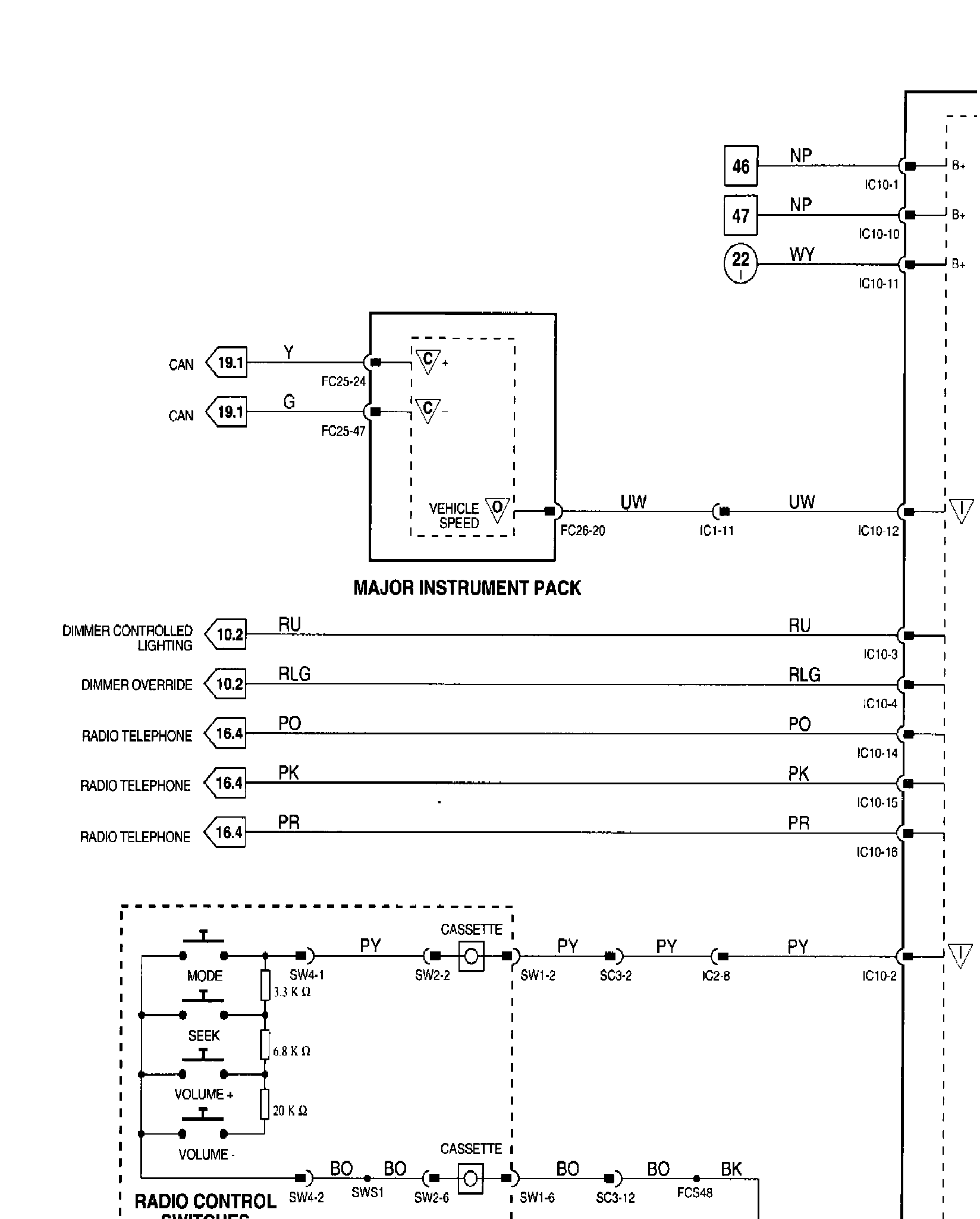

"LQ�]Qm�Qk�Q��QWiring Diagram:

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

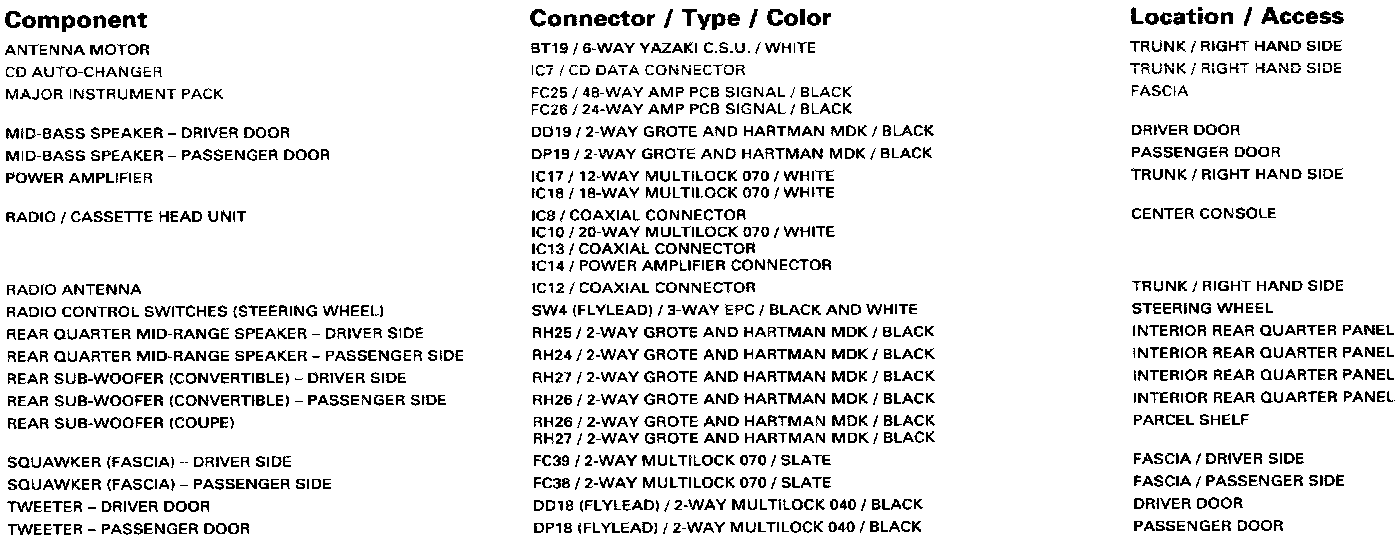

Components:

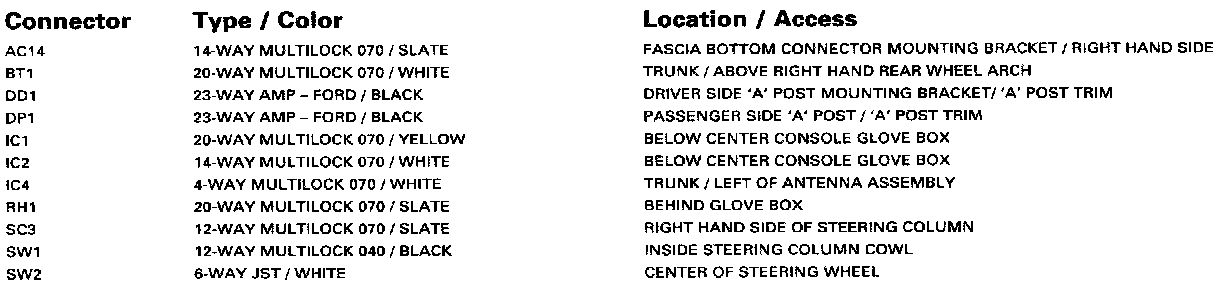

Harness-To-Harness Connectors:

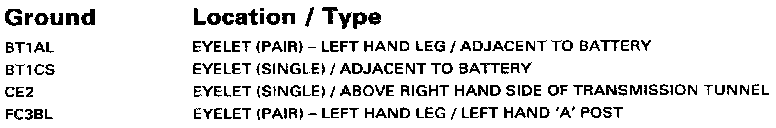

Grounds:

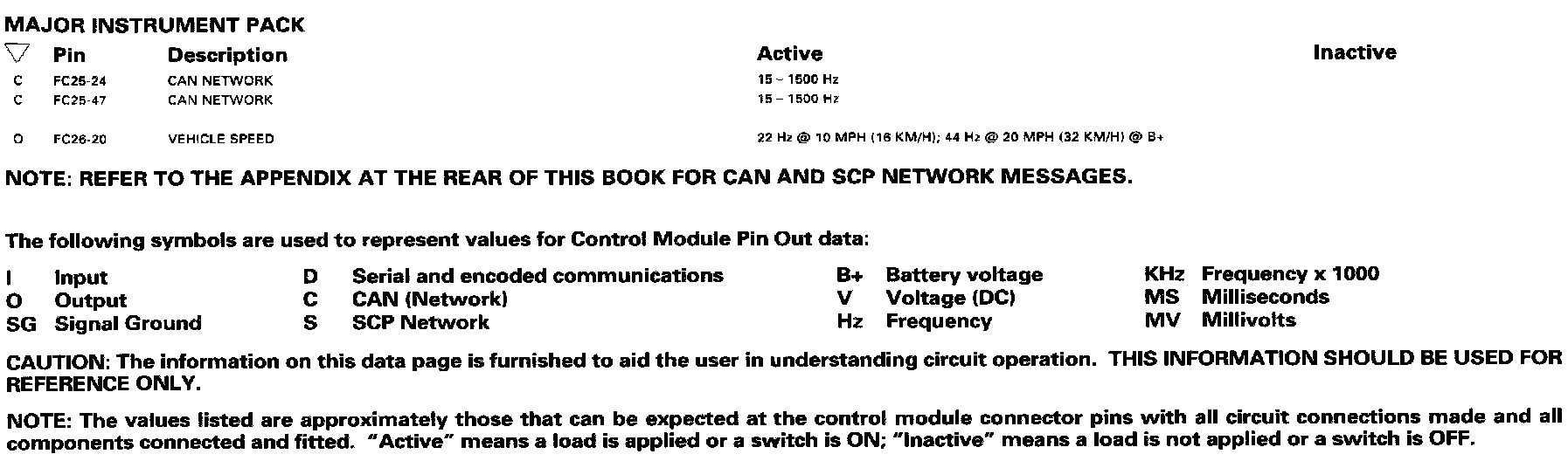

Control Module Pin Out Information:
