Engine Management, Part 2

ŏ��°�������6�AJ26 NAS Engine Management, Part2:

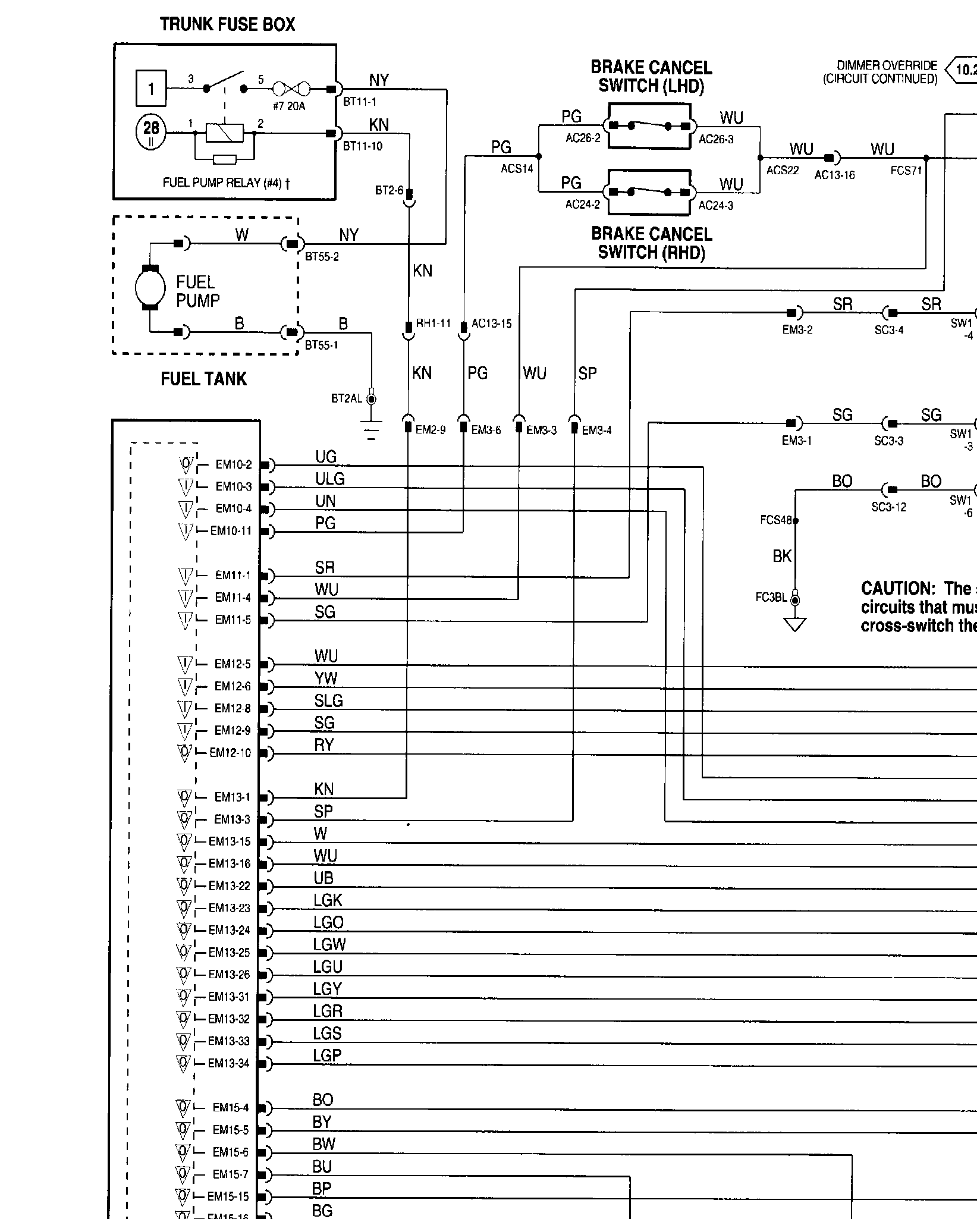

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

AJ26 NAS Engine Management, Part2: Components:

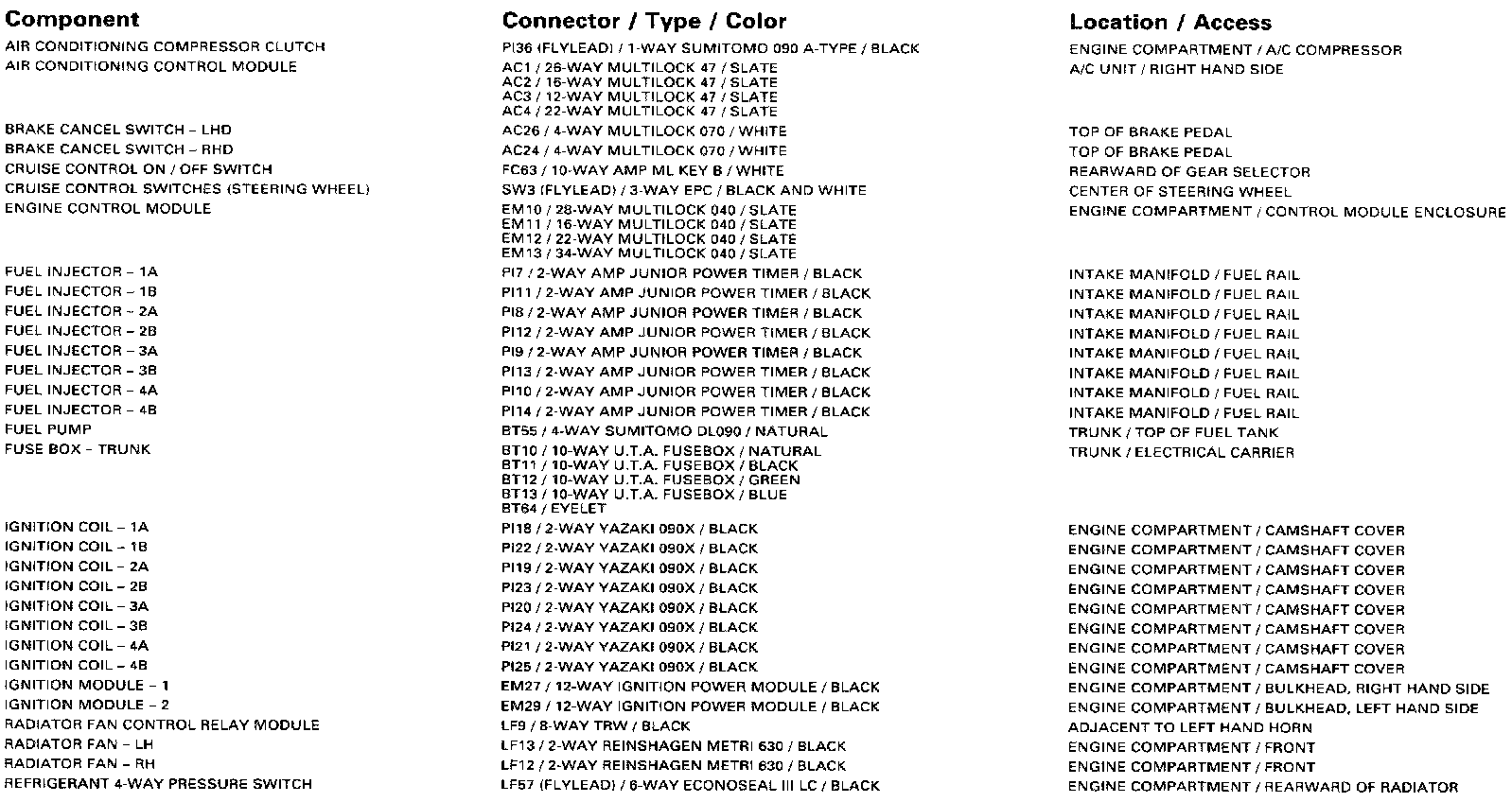

Components Informations

AJ26 NAS Engine Management, Part2: Relays:

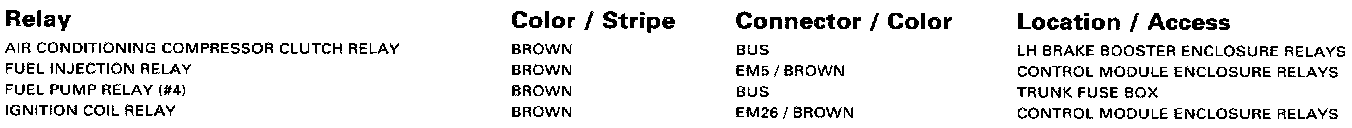

Relays Informations

AJ26 NAS Engine Management, Part2: Harness-To-Harness Connectors:

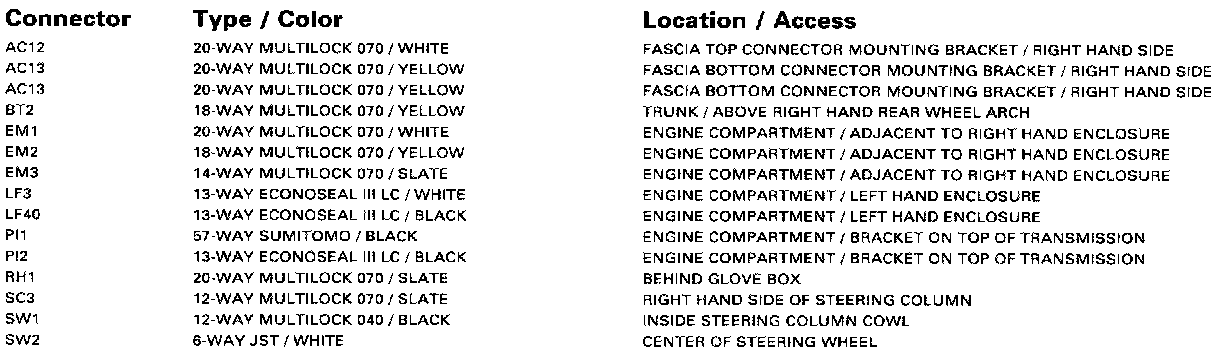

Harness-To-Harness Connector Informations

AJ26 NAS Engine Management, Part2: Grounds:

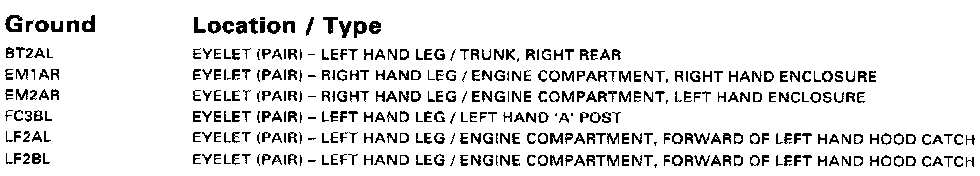

Grounds Informations

AJ26 NAS Engine Management, Part2: Control Module Pin Out Information:

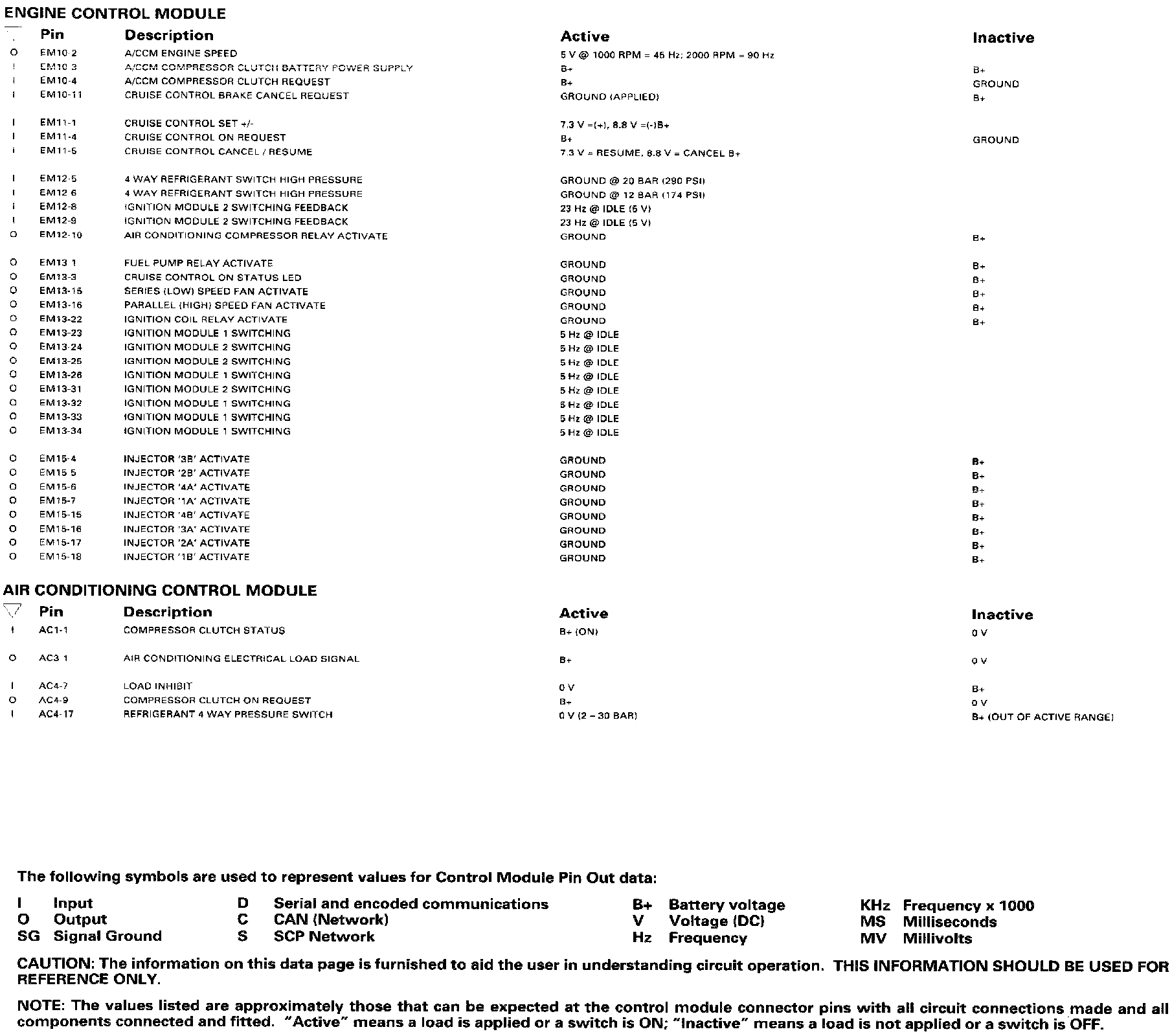

Control Module Pin Out Informations
