Engine Management, Part 1

���˱����k�16�AJ26 NAS Engine Management, Part1:

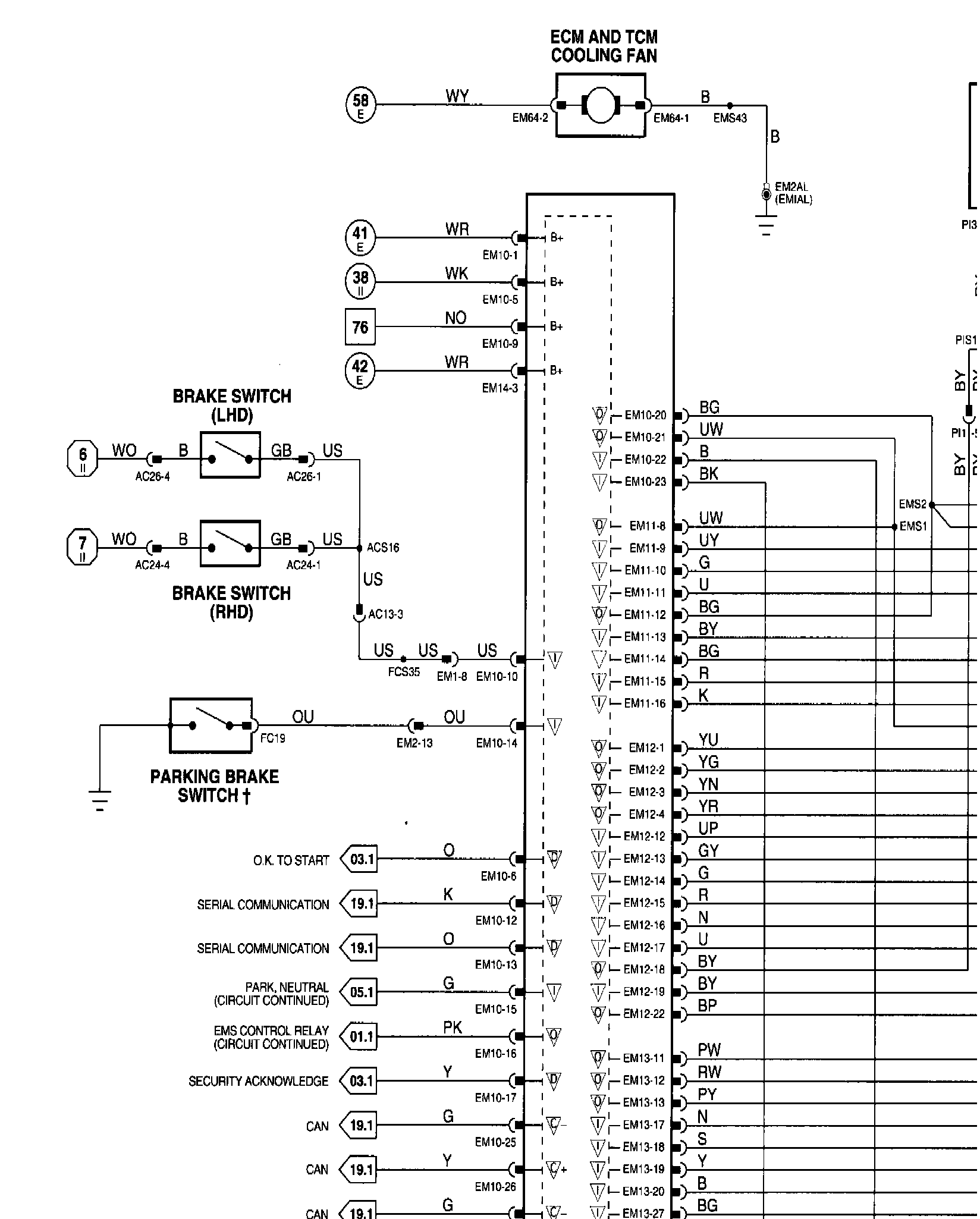

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

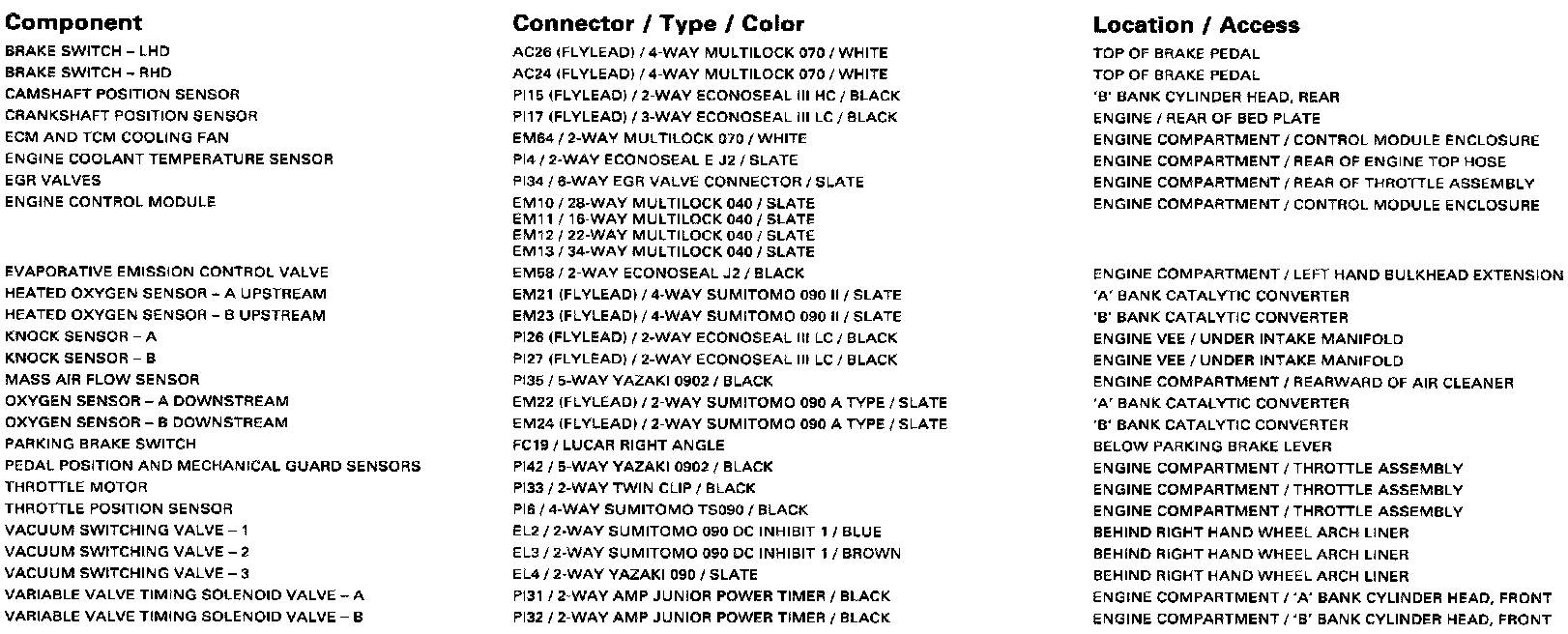

AJ26 NAS Engine Management, Part1: Components:

Components Informations

AJ26 NAS Engine Management, Part1: Relays:

Relays Informations

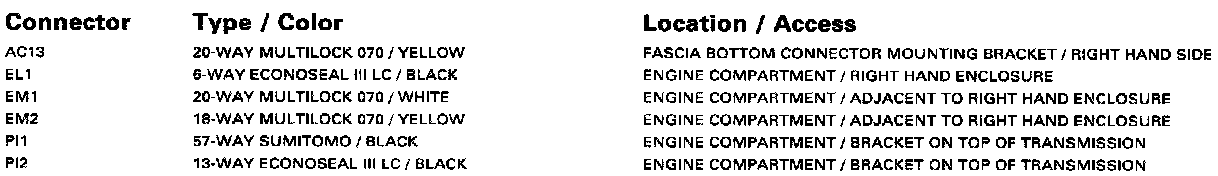

AJ26 NAS Engine Management, Part1: Harness-to-Harness Connectors:

Harness-To-Harness Connector Informations

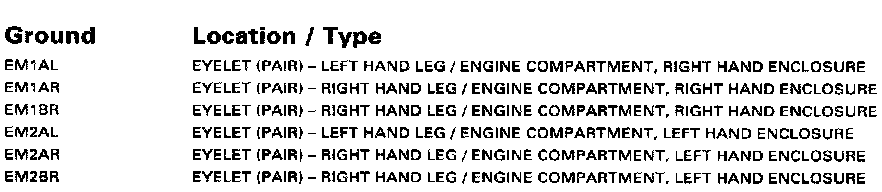

AJ26 NAS Engine Management, Part1: Grounds:

Grounds Informations

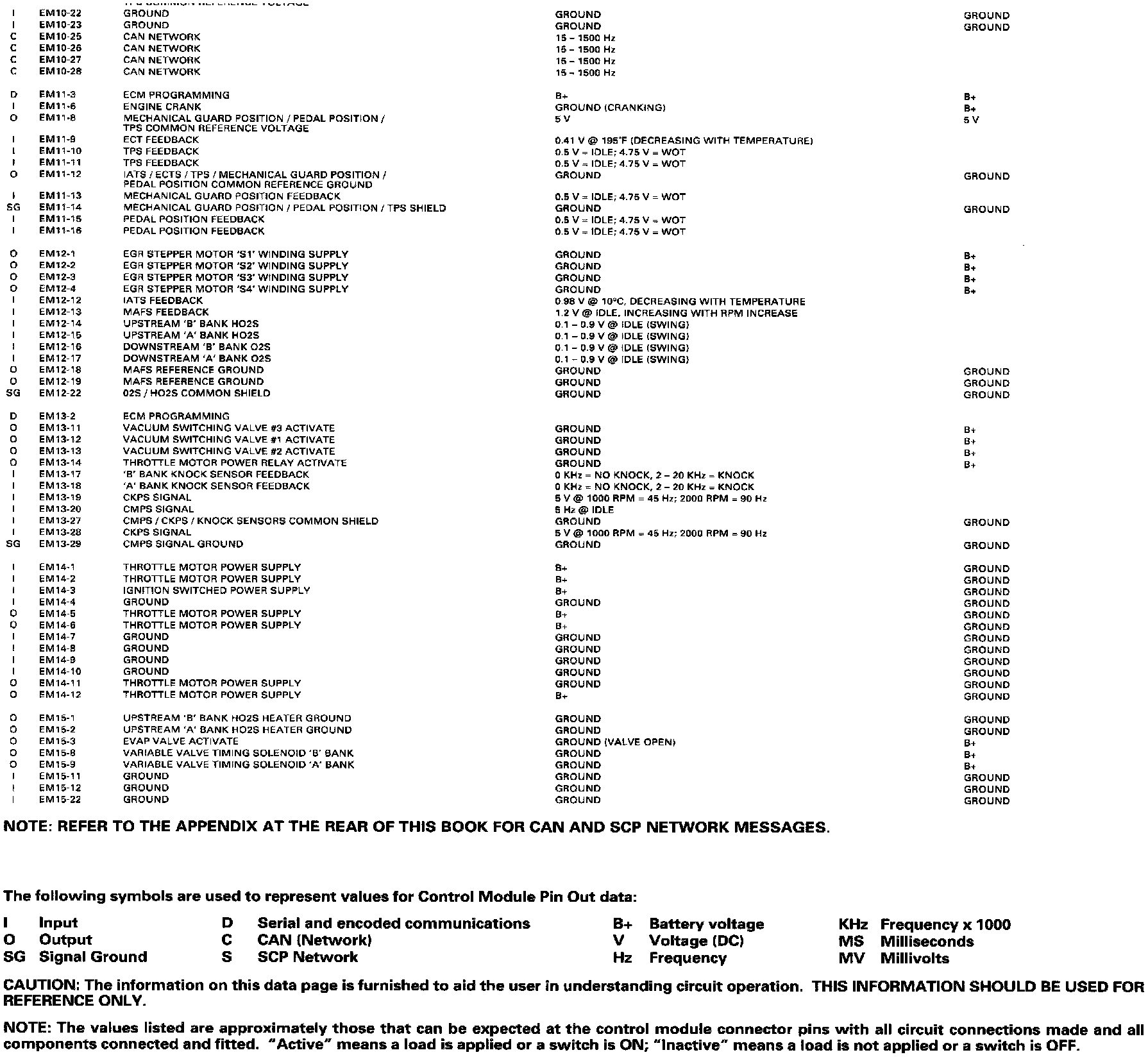

�F�AJ26 NAS Engine Management, Part1: Control Module Pin Out Information:

Control Module Pin Out Informations
