Circuit Diagrams (Extracts Only)



These diagrams are extracts only. Complete Engine Management diagrams are also available. See Powertrain Management / Diagrams / Electrical. Electrical Diagrams

ECM Supply Voltage:

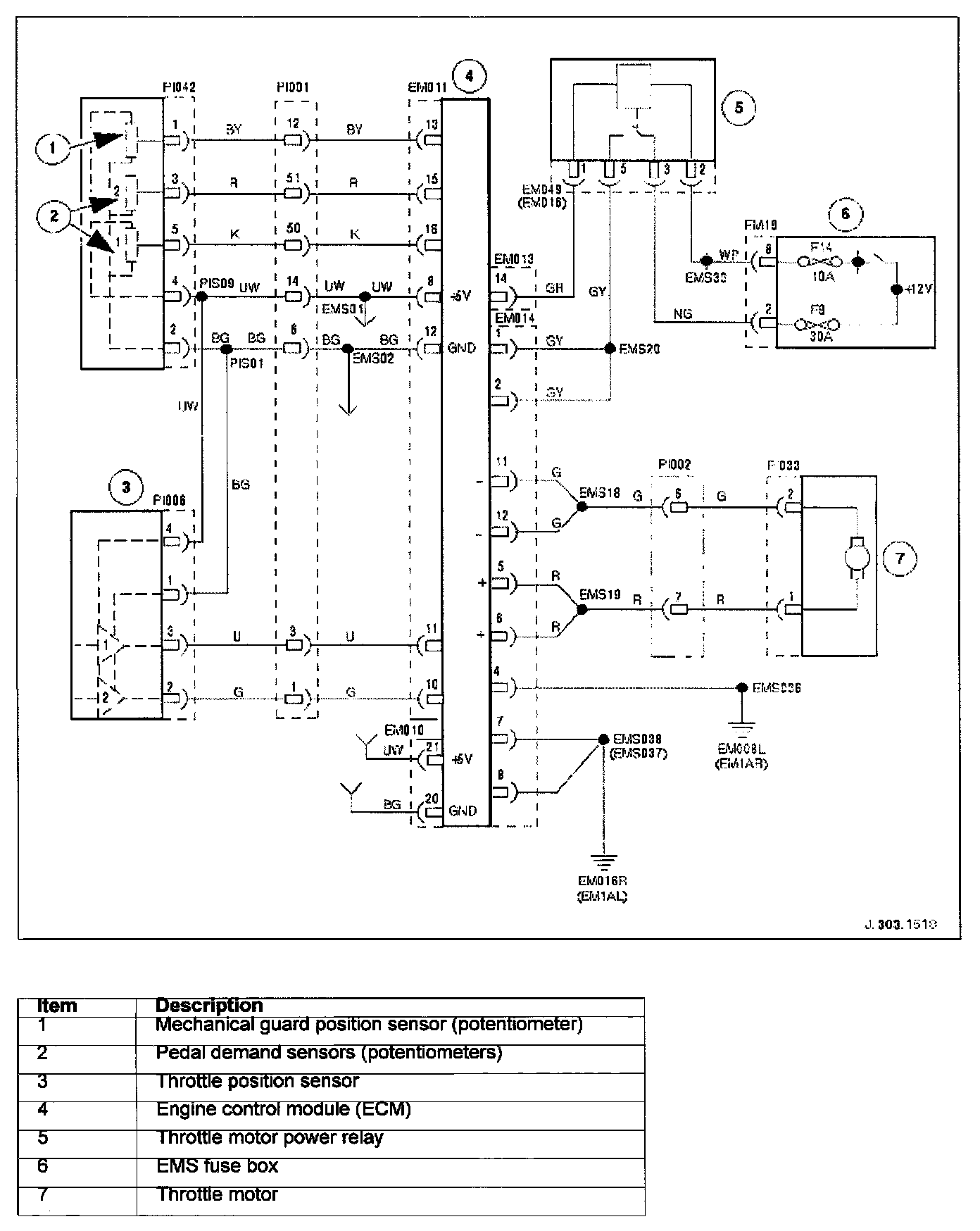

Throttle Sensors And Control:

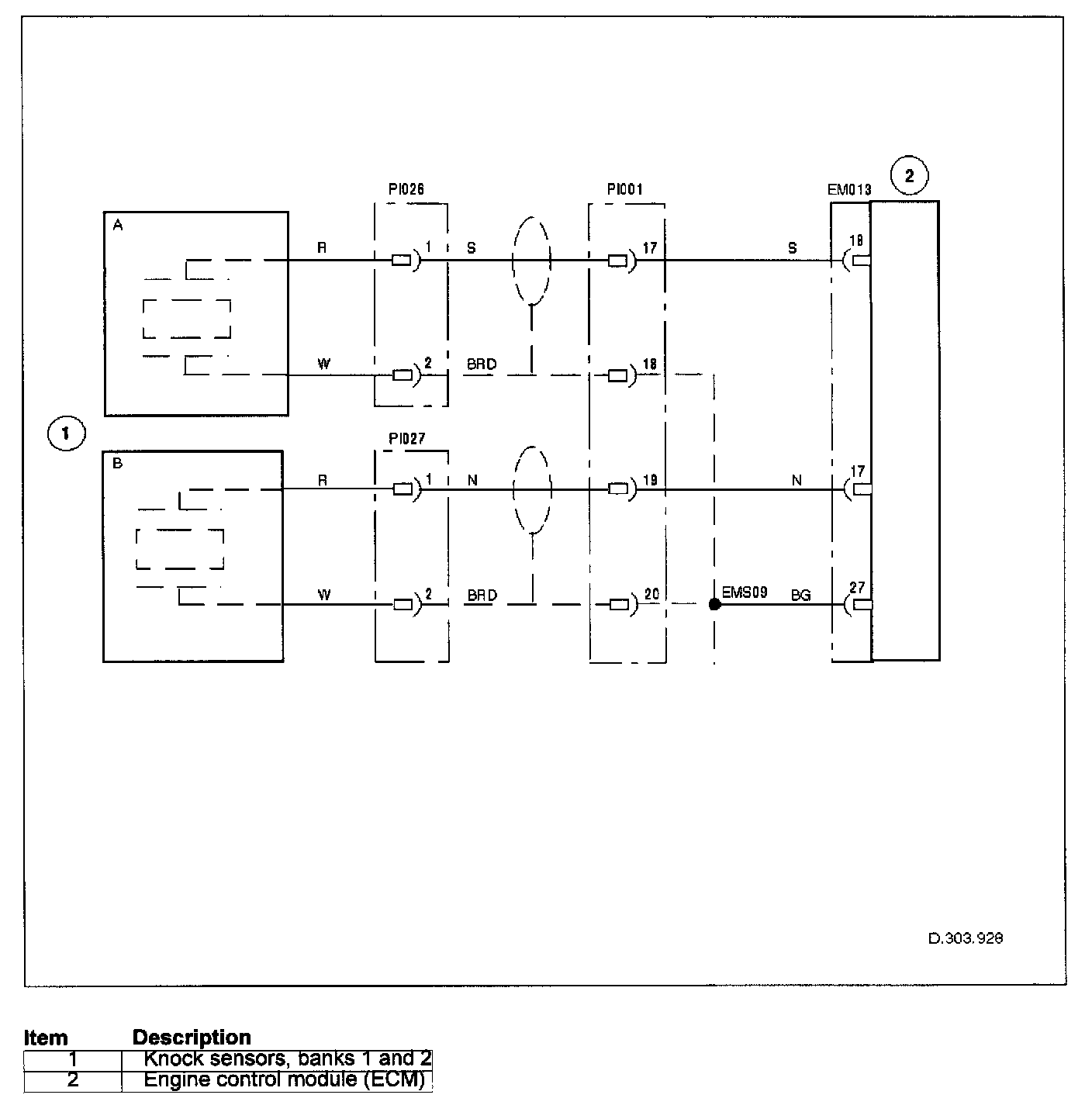

Knock Sensor:

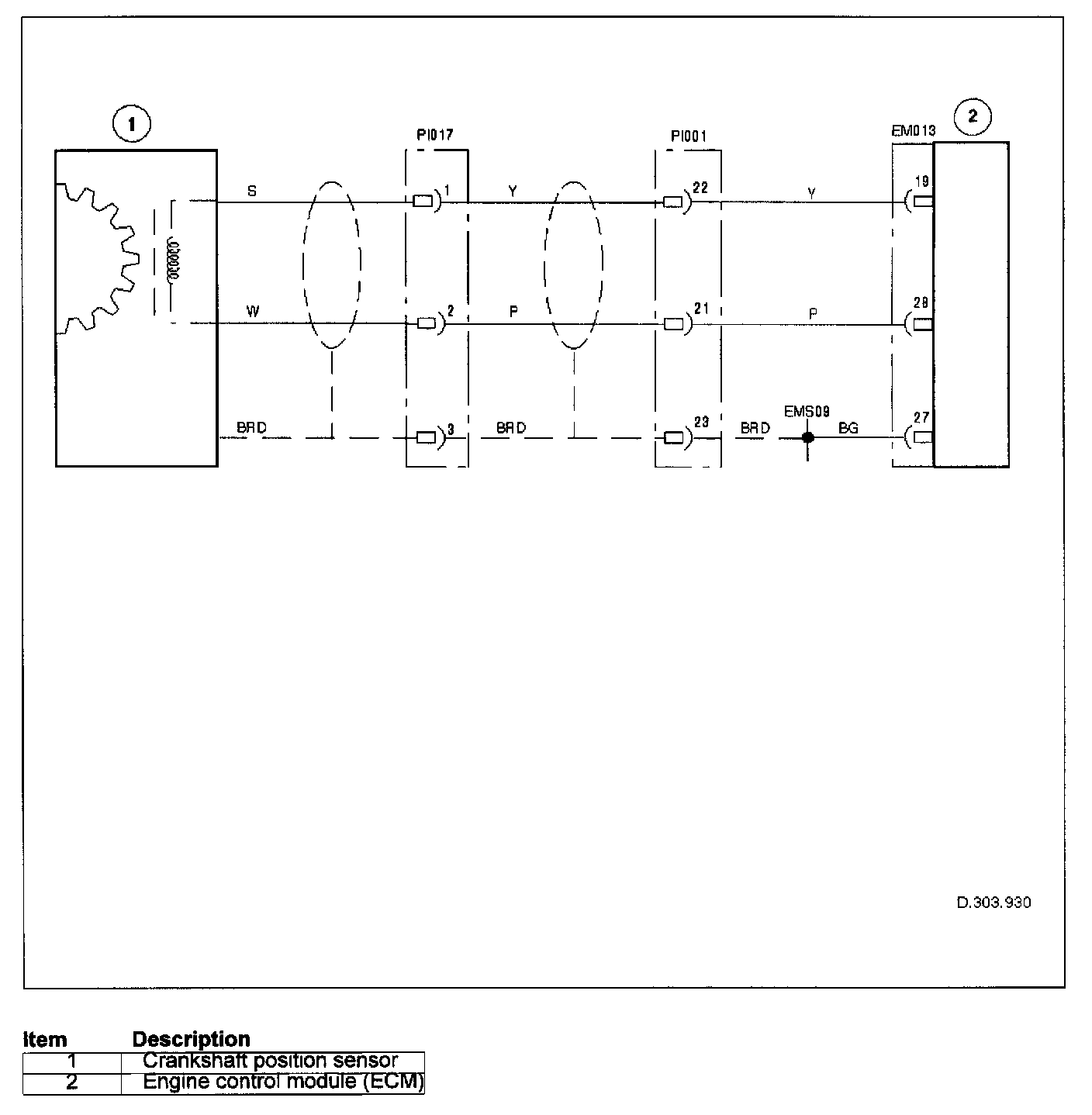

Crankshaft Position Sensor:

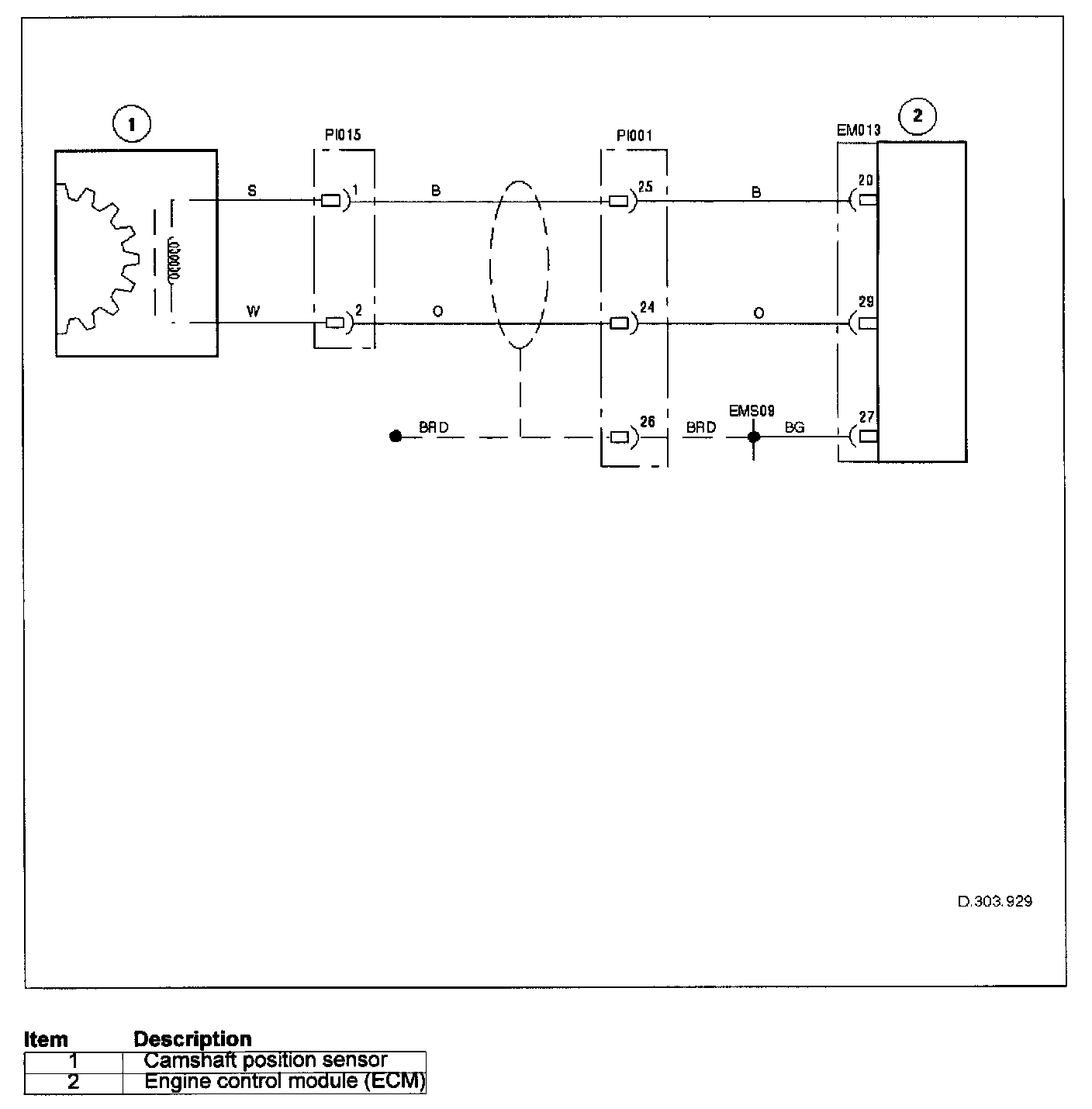

Camshaft Position Sensor:

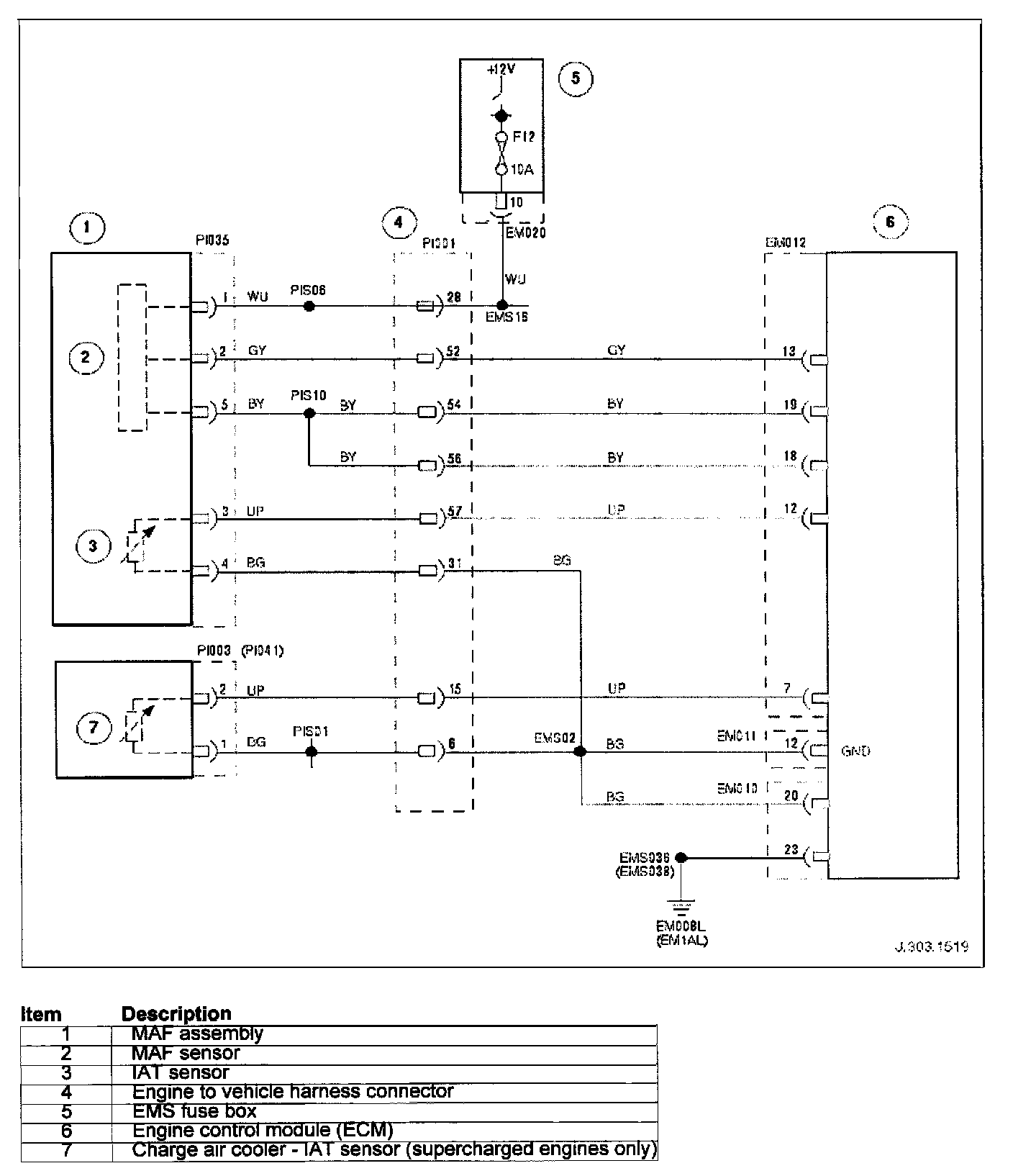

MAF And IAT Sensors:

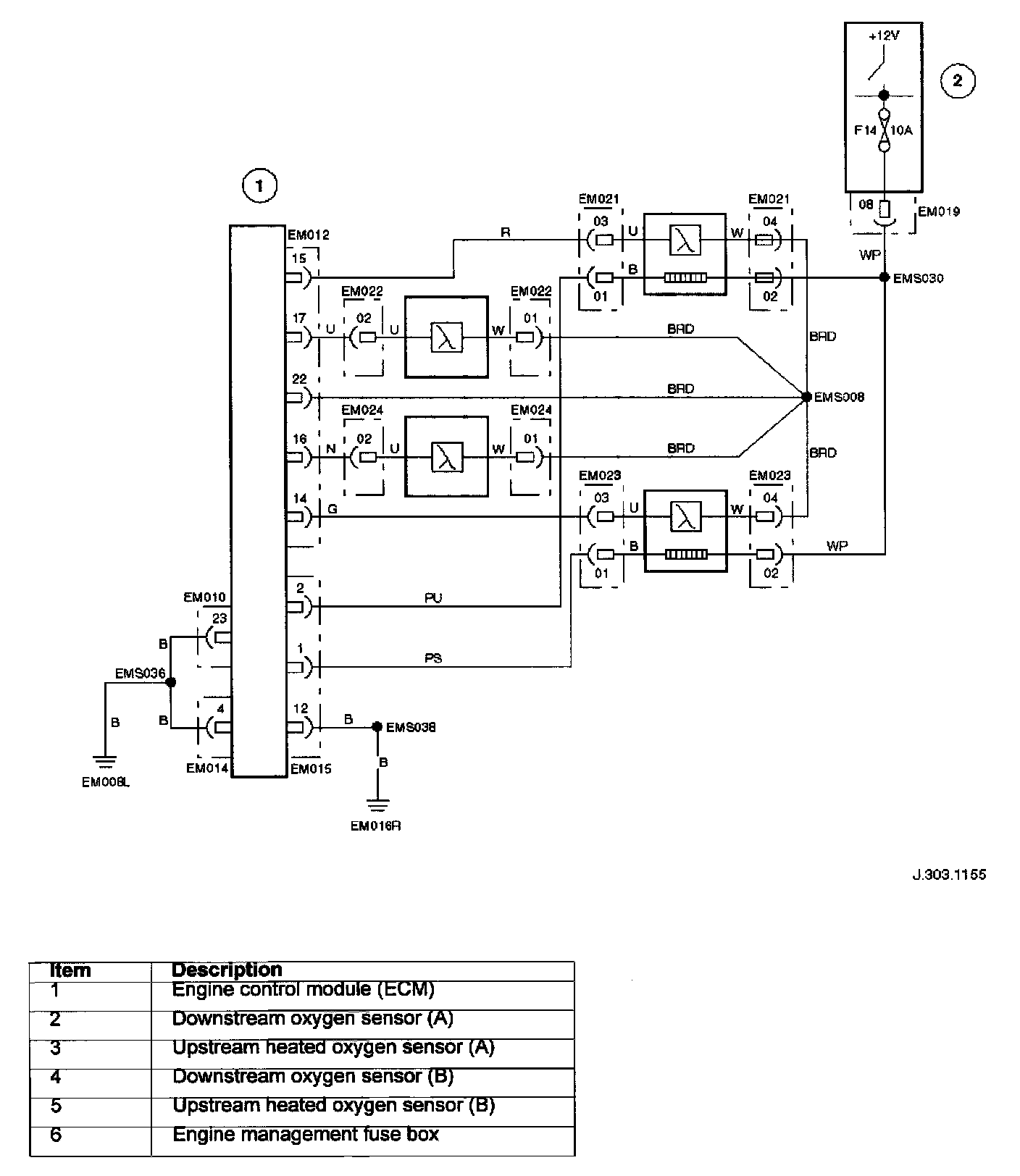

Oxygen Sensors:
