System Diagram

NOTE: For complete Engine Management wiring diagrams, see Powertrain Management / Diagrams / Electrical. Electrical Diagrams

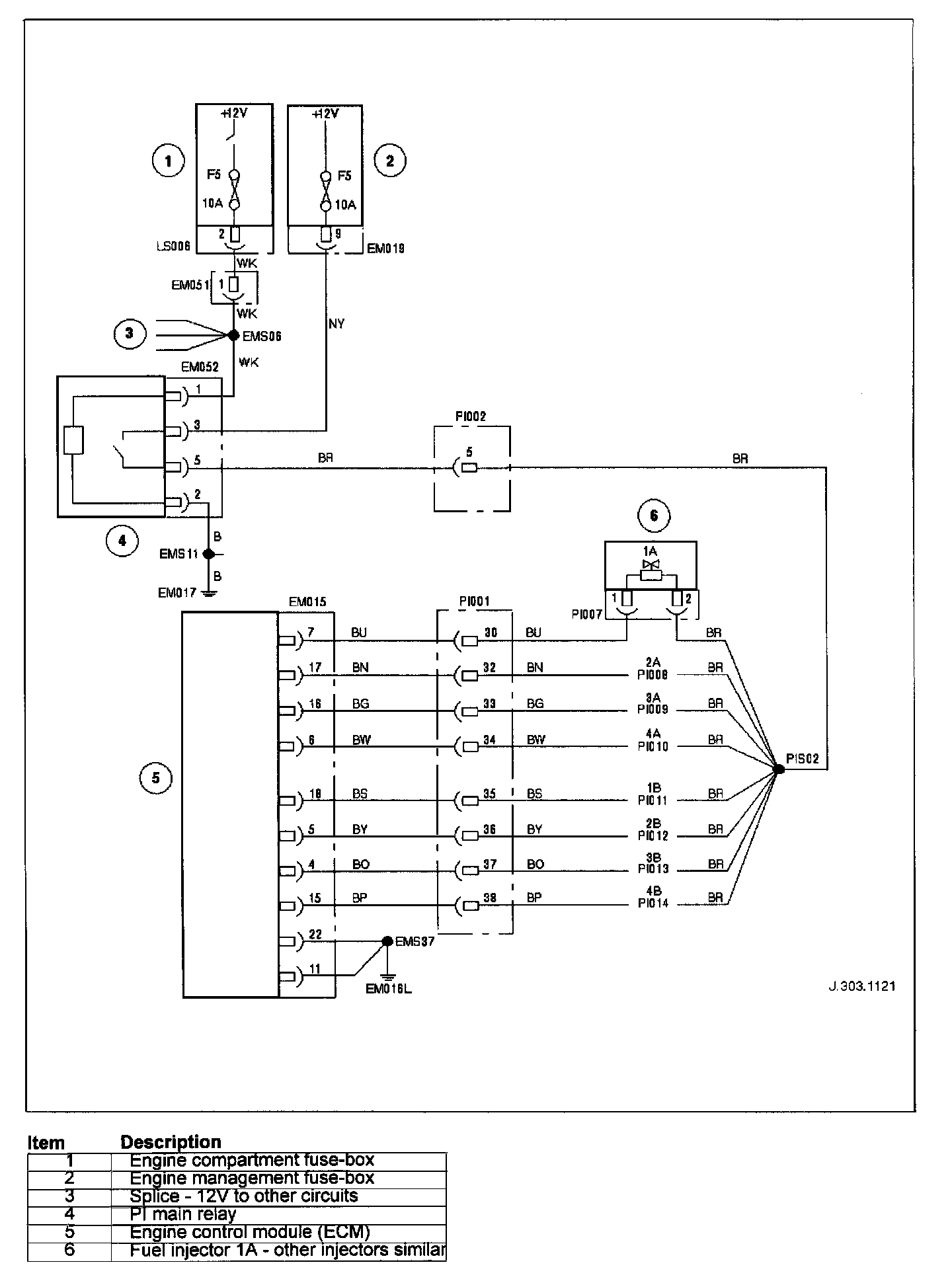

Circuit Diagram, Fuel Injection System:

Circuit references to injectors:
'A' refers to bank 1;
'B' refers to bank 2.
