��V%I�V%&,W%�QW%�uW%Exterior Lighting - Rear:

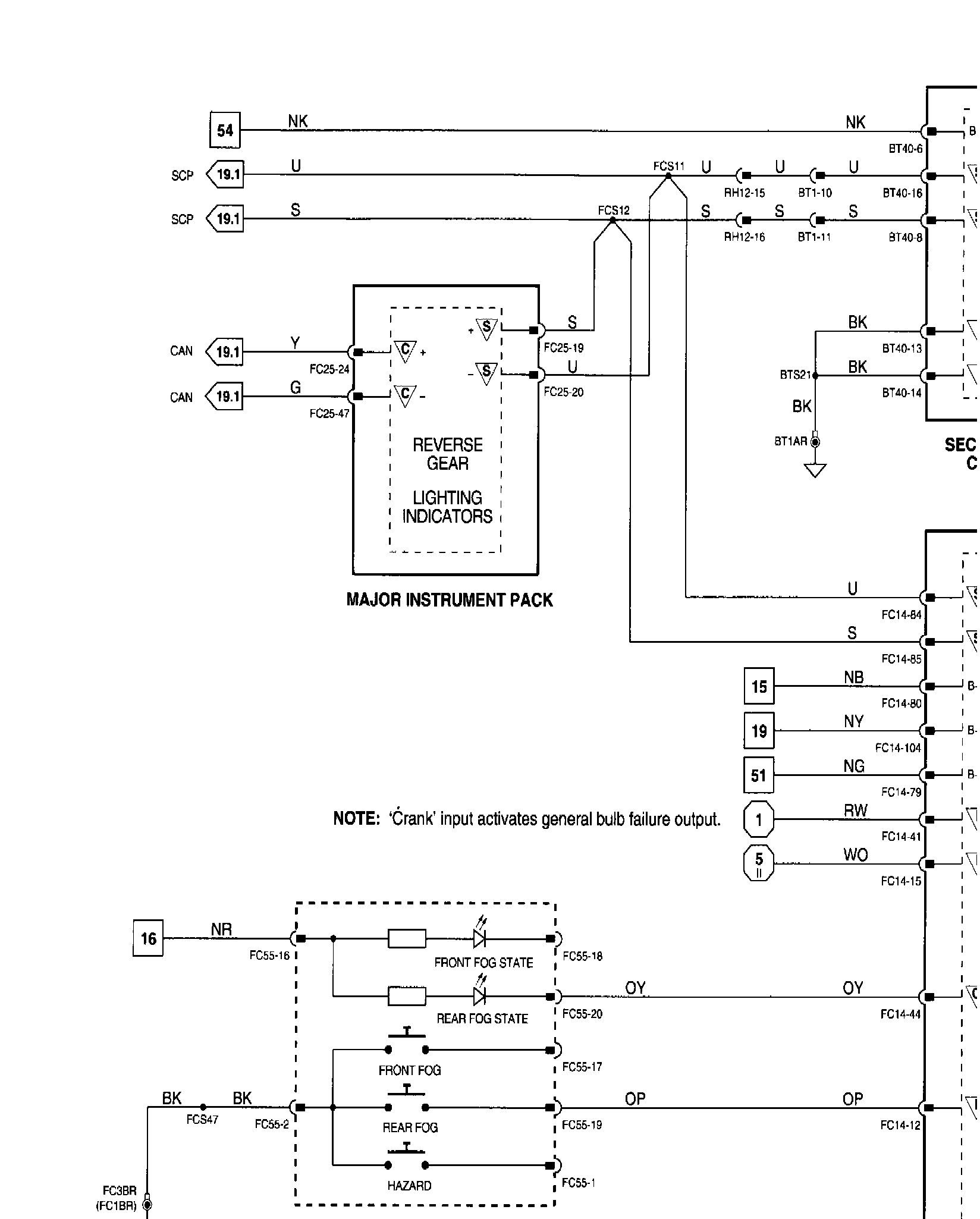

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

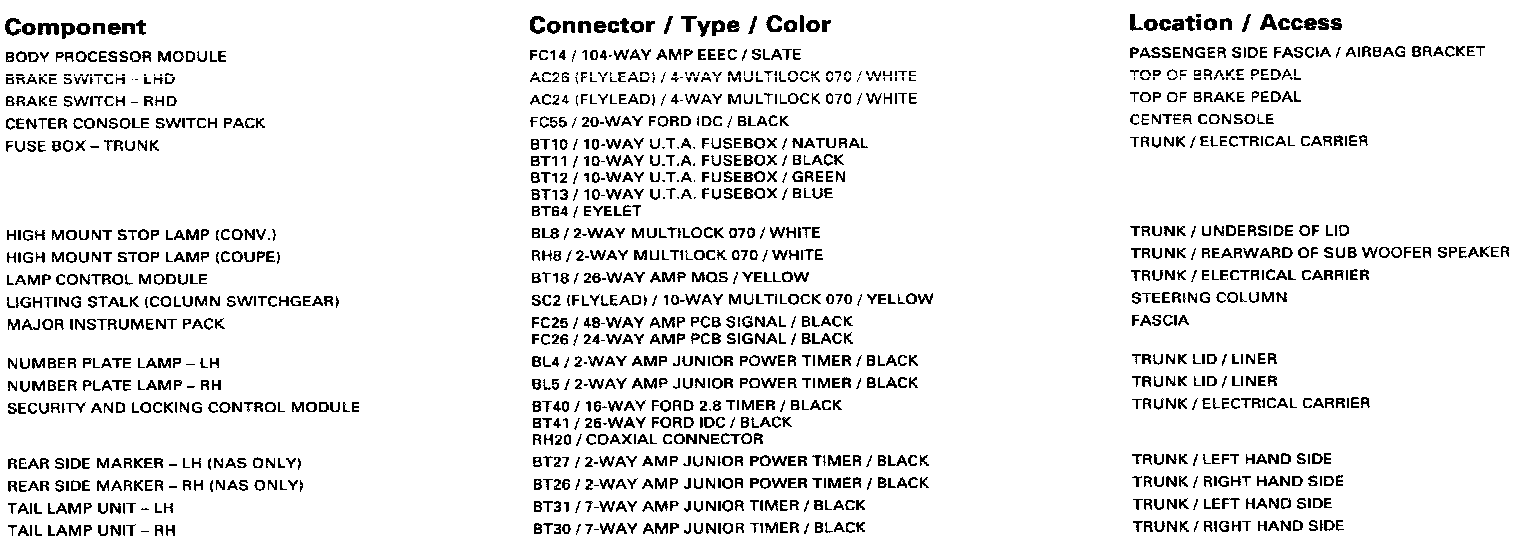

Exterior Lighting - Rear: Components:

Components Informations

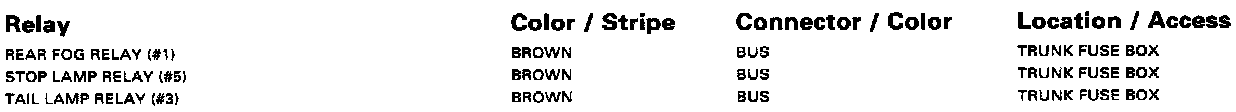

Exterior Lighting - Rear: Relays:

Relays Informations

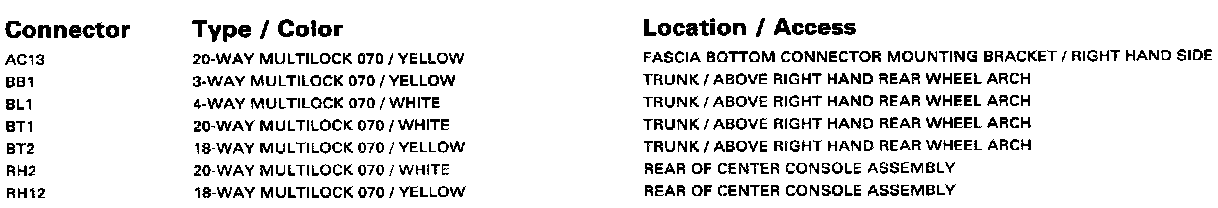

Exterior Lighting - Rear: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

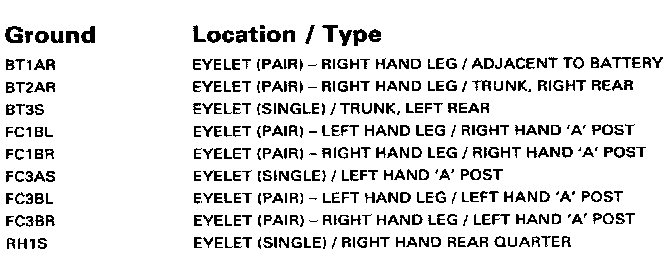

Exterior Lighting - Rear: Grounds:

Grounds Informations

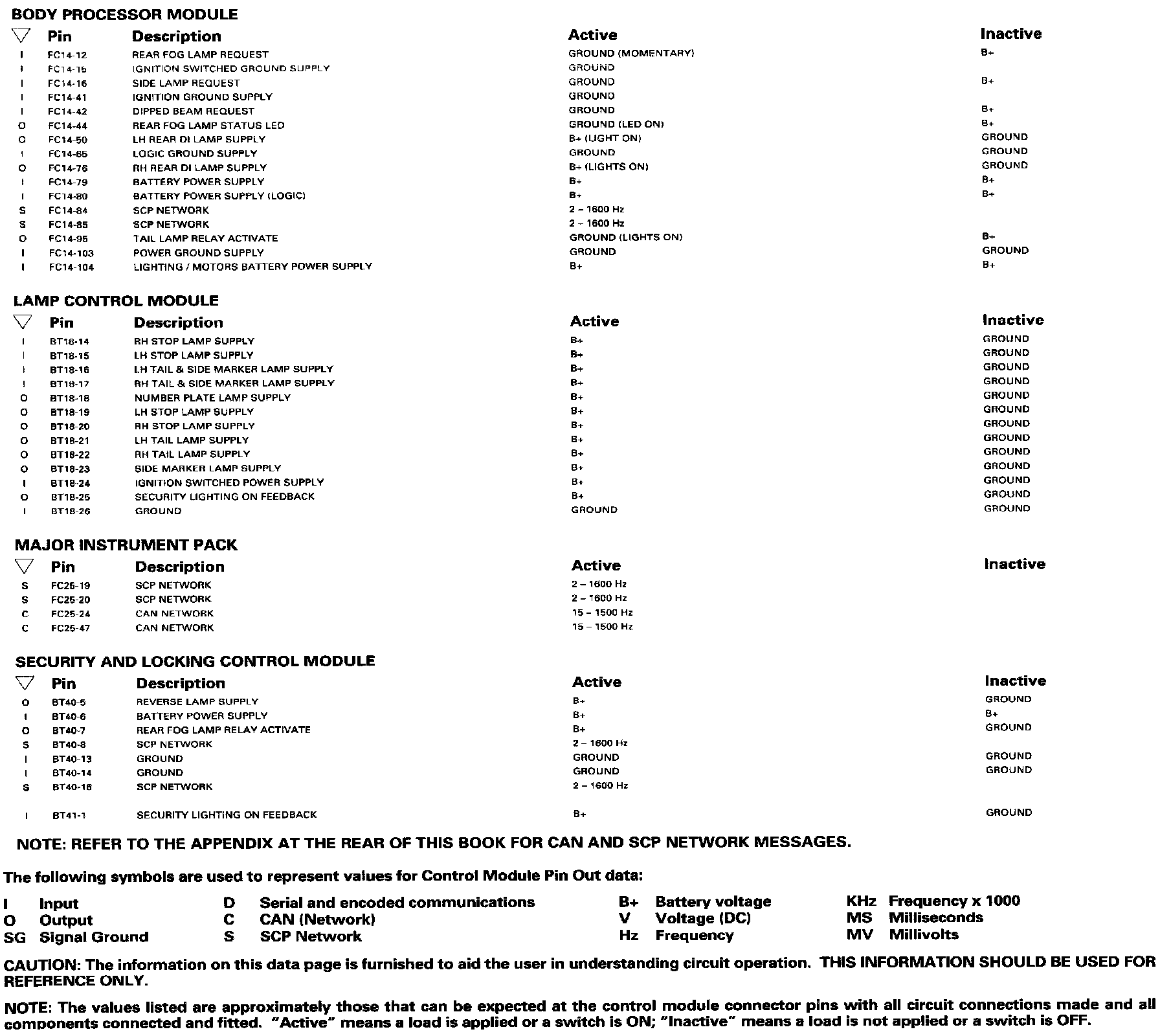

Exterior Lighting - Rear: Control Module Pin Out Information:

Control Module Pin Out Informations
