�L%y�L%��L%��L%zM%Exterior Lighting - Front:

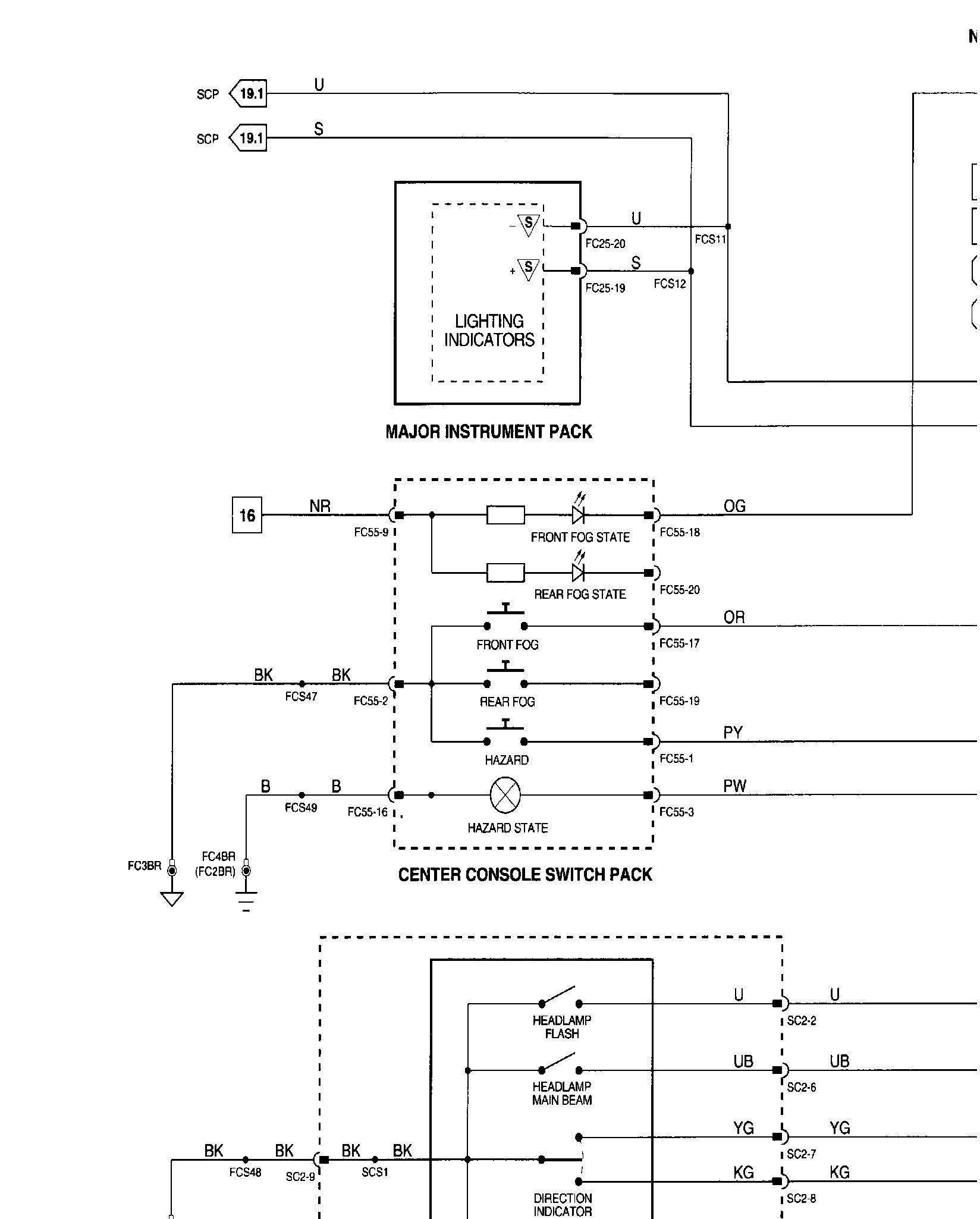

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

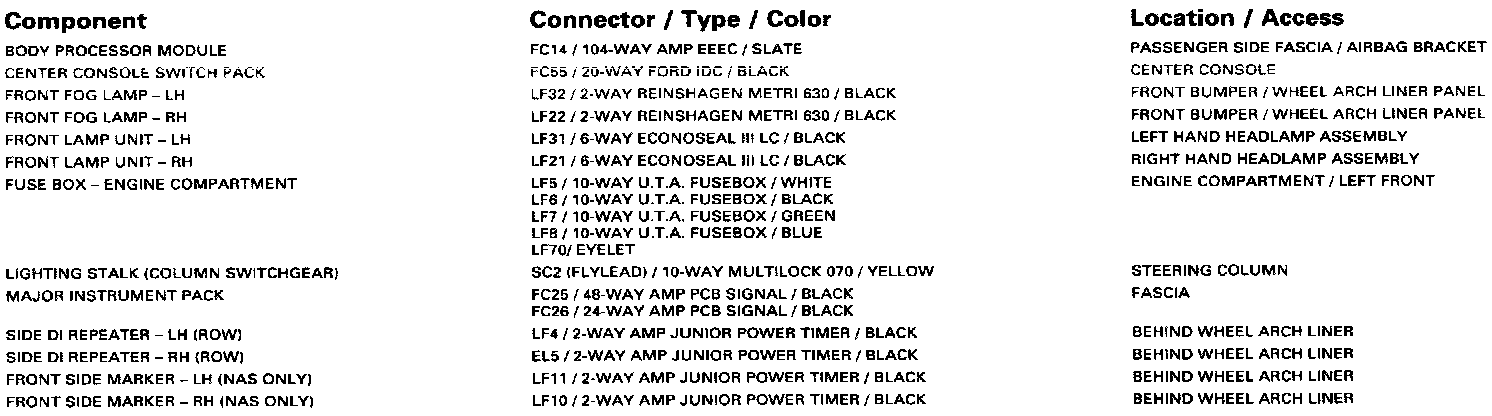

Exterior Lighting - Front: Components:

Components Informations

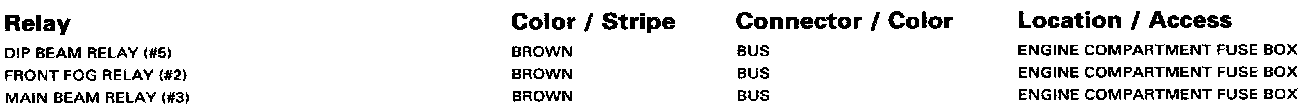

Exterior Lighting - Front: Relays:

Relays Informations

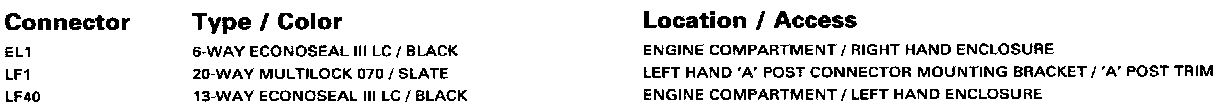

Exterior Lighting - Front: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

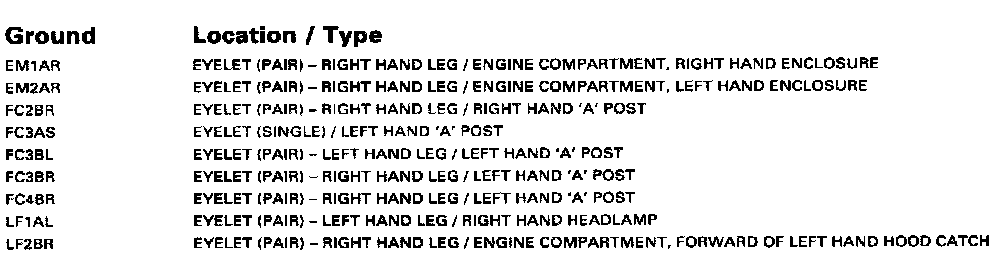

Exterior Lighting - Front: Grounds:

Grounds Informations

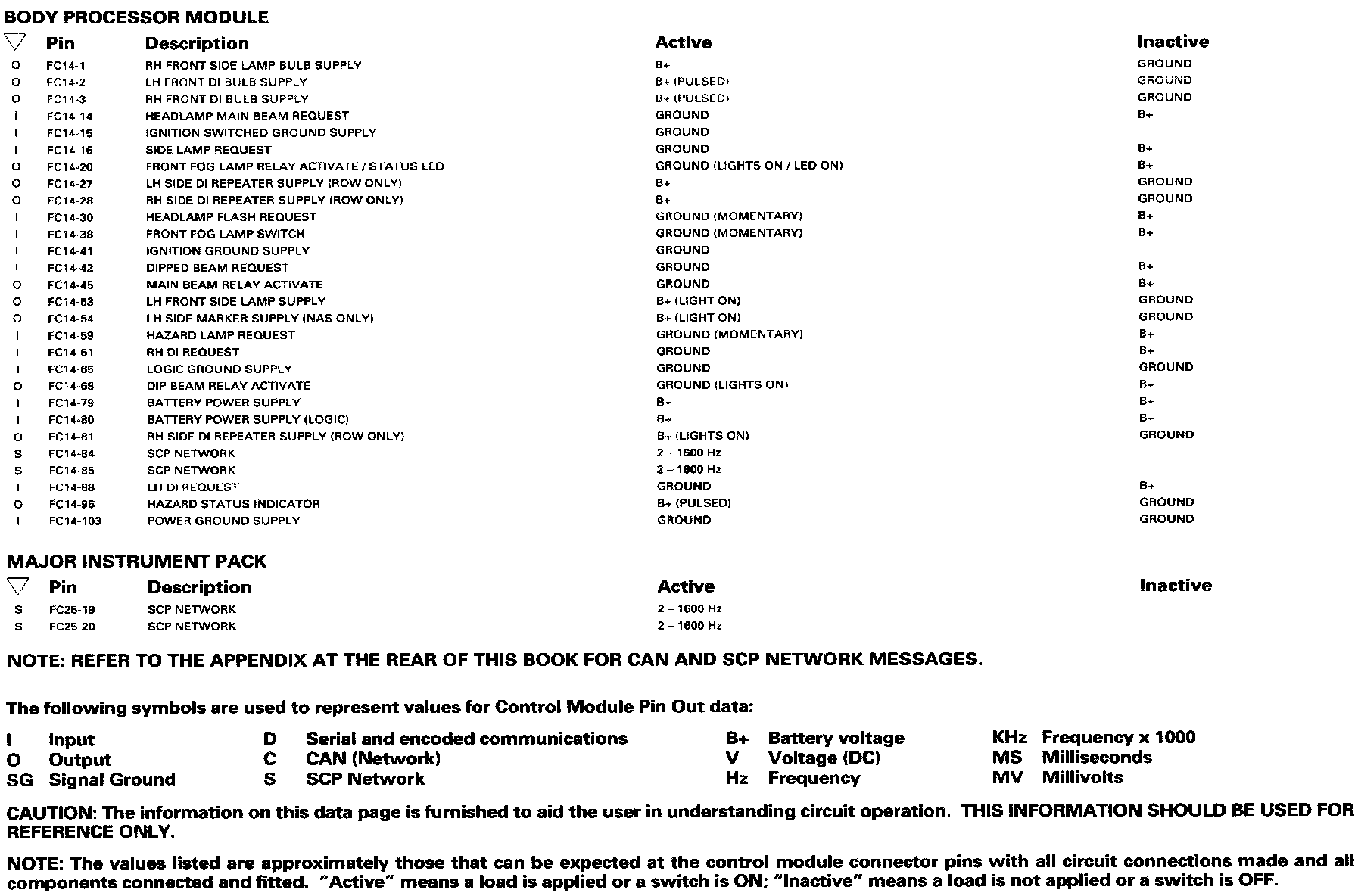

Exterior Lighting - Front: Control Module Pin Out Information:

Control Module Pin Out Informations
