Dimmer Controlled Lighting

�PE%�YE%%�E%�E%��E%Dimmer Controlled Lighting:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

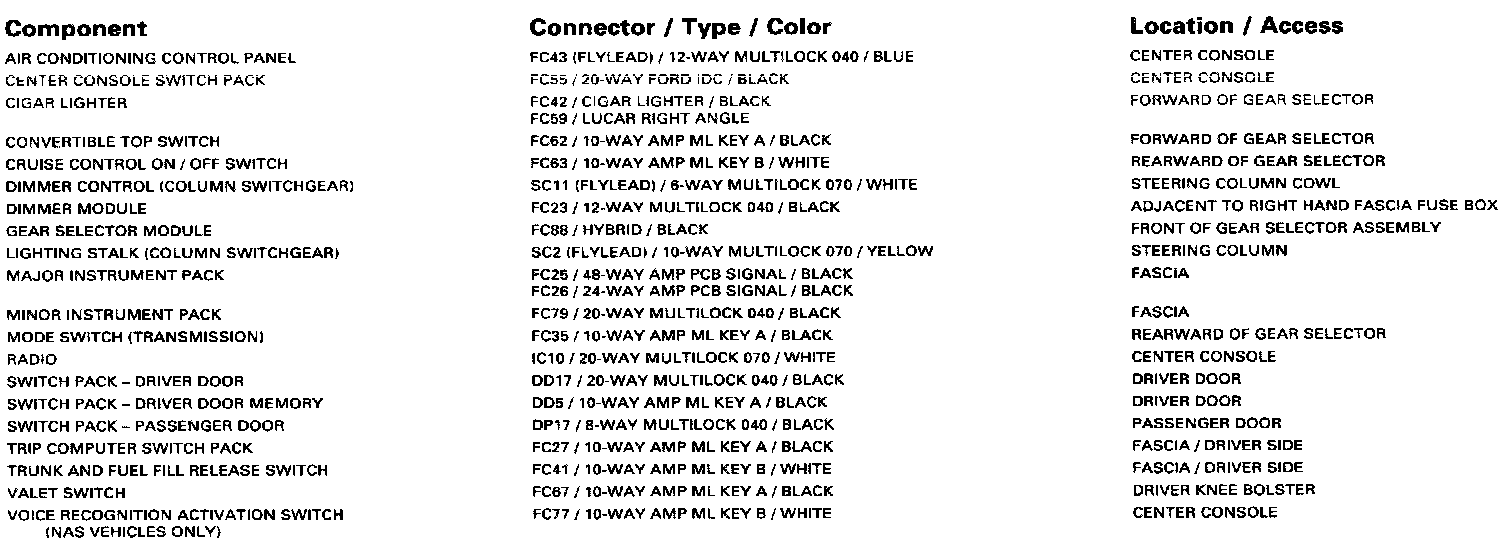

Dimmer Controlled Lighting: Components:

Components Informations

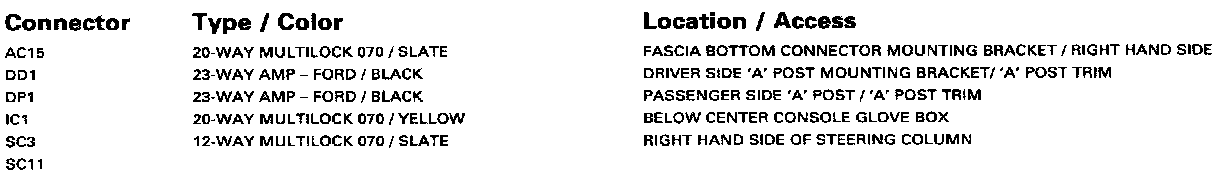

Dimmer Controlled Lighting: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

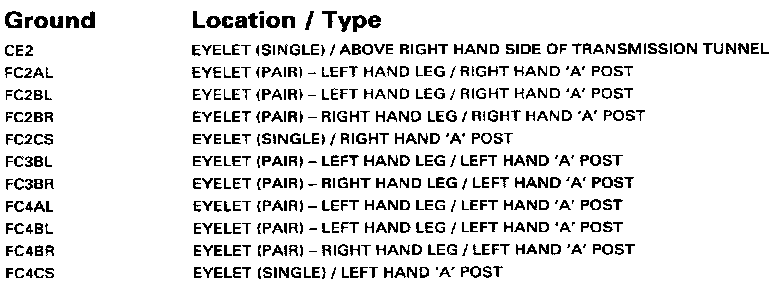

Dimmer Controlled Lighting: Grounds:

Grounds Informations

Dimmer Controlled Lighting: Harness-To-Harness Connectors:

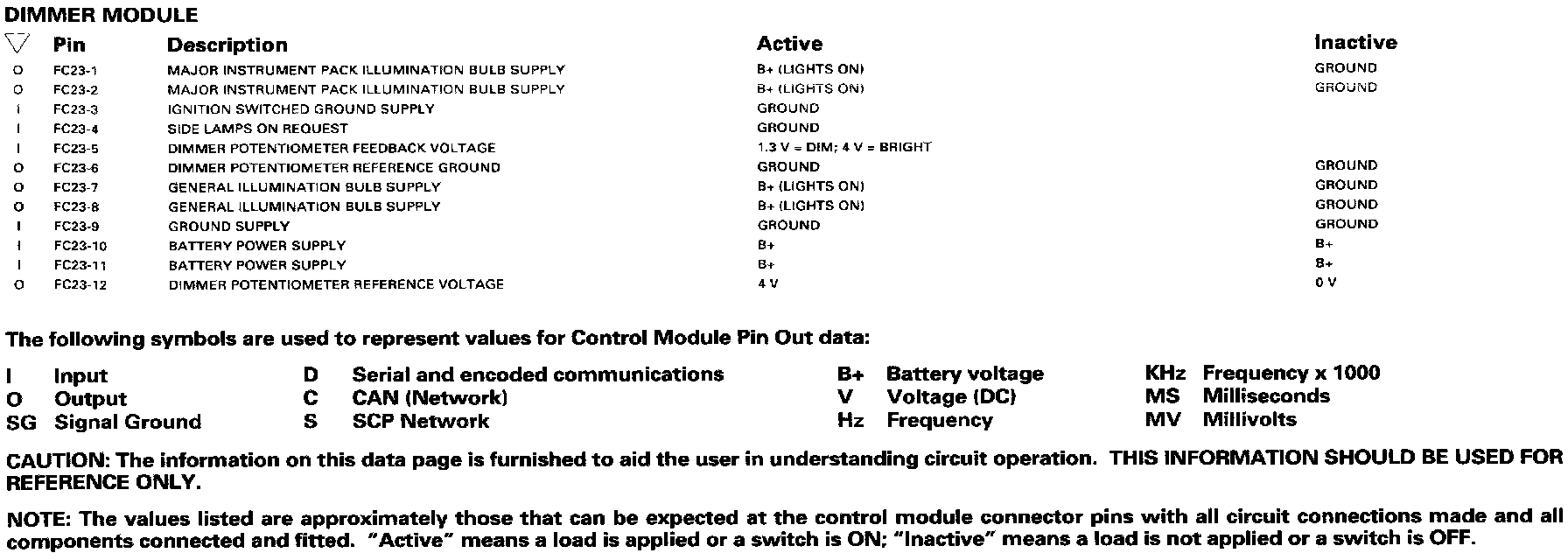

Control Module Pin Out Informations
