Fig 07.1
��$��M��n����Climate Control, Part1:

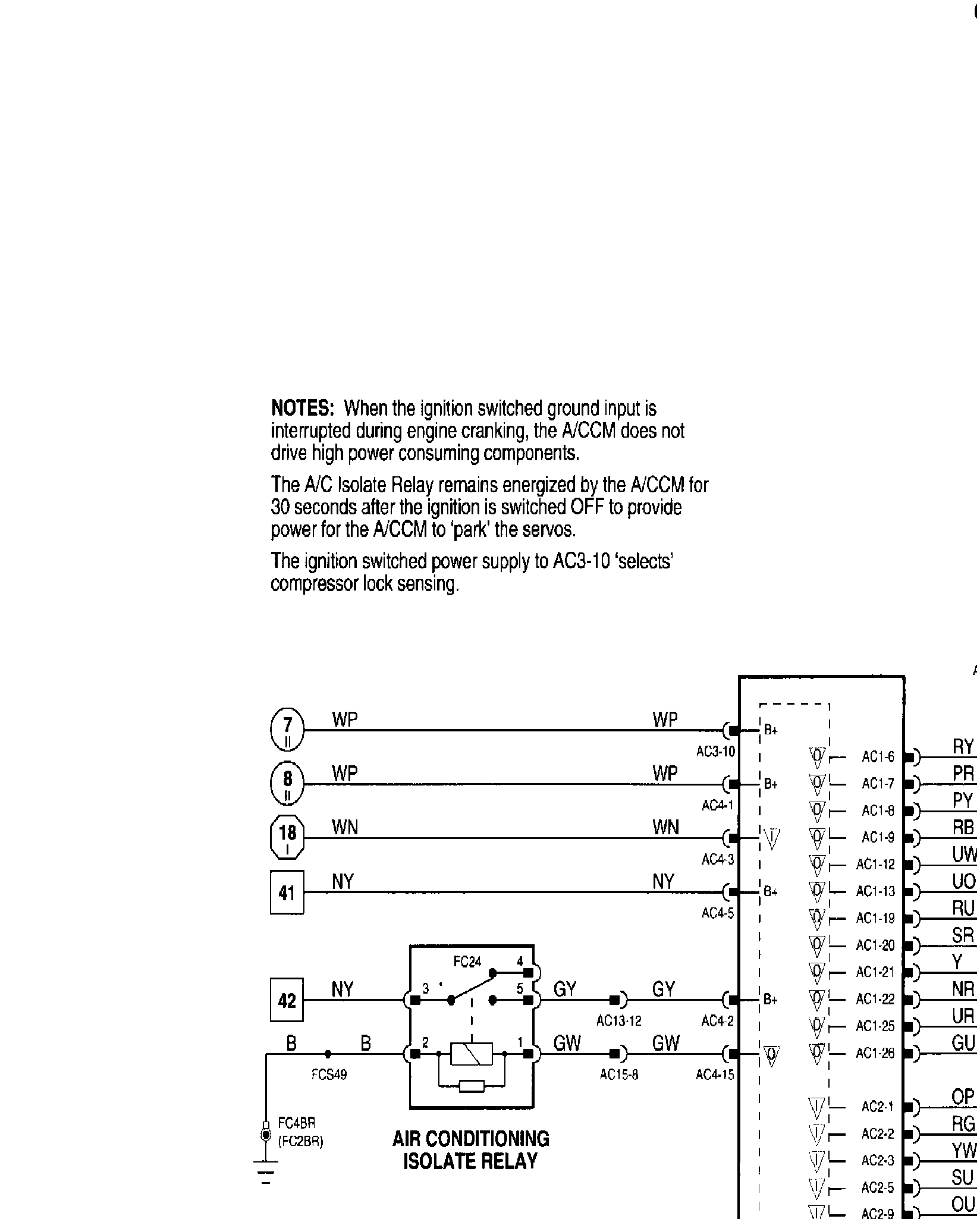

Wiring Diagram
Climate Control, Part1: Components:
Components Informations
Climate Control, Part1: Relays:
Relays Informations

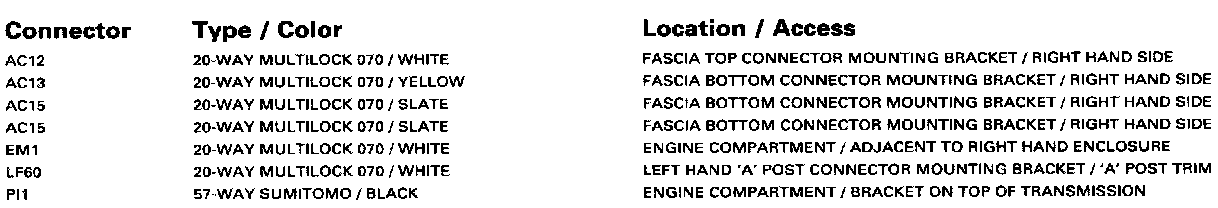

Climate Control, Part1: Harness-To-Harness Connectors:
Harness-To-Harness Connector Informations

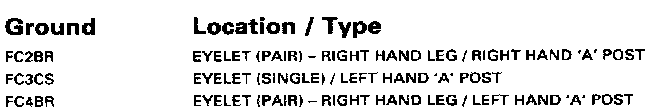

Climate Control, Part1: Grounds:
Grounds Informations

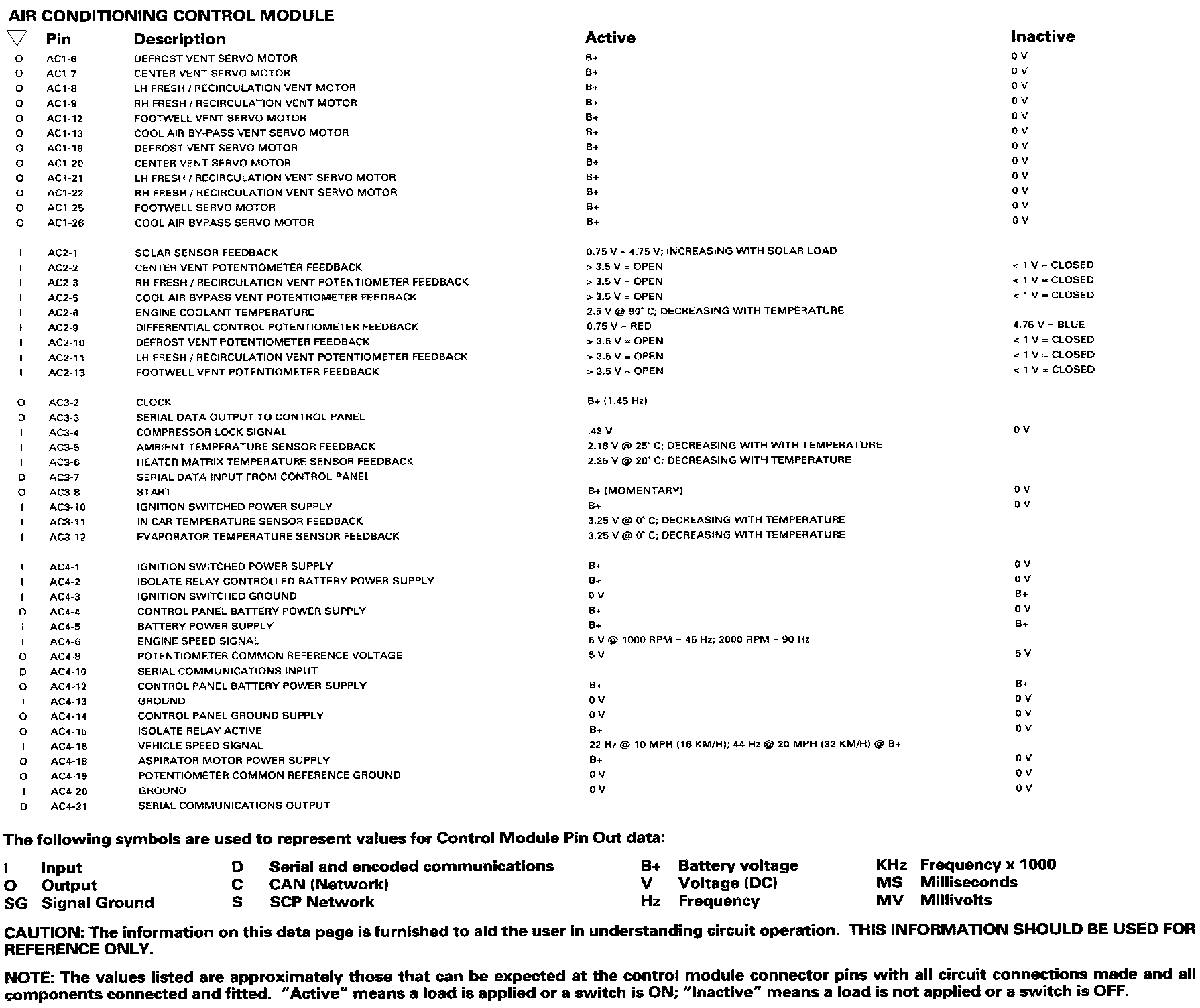

Climate Control, Part1: Control Module Pin Out Information:
Control Module Pin Out Informations
