Fig 05.2
��C'E�C'ɼC'�C'��C'Gear Shift Interlock:

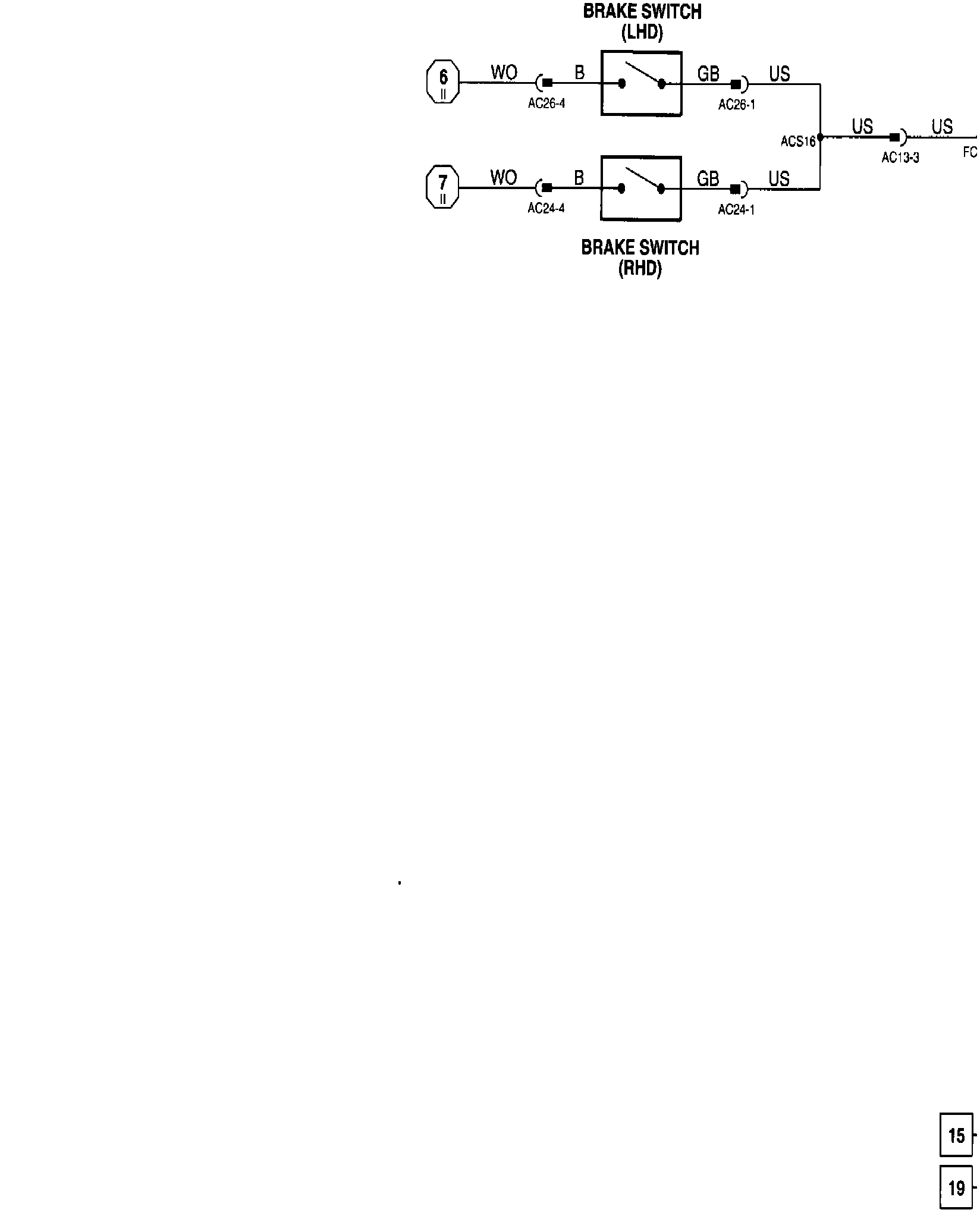

Wiring Diagram

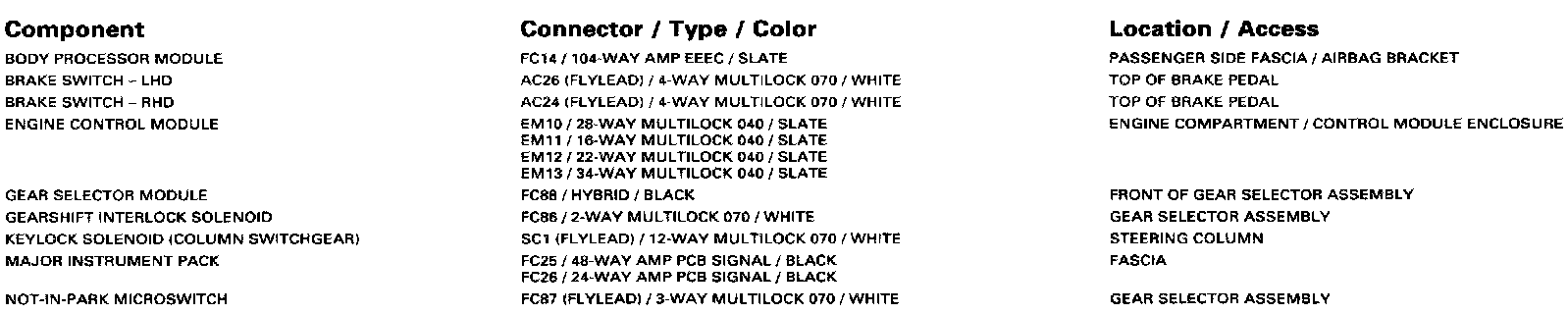

Gear Shift Interlock: Components:
Components Informations
Gear Shift Interlock: Harness-To-Harness Connectors:
Harness-To-Harness Connector Informations

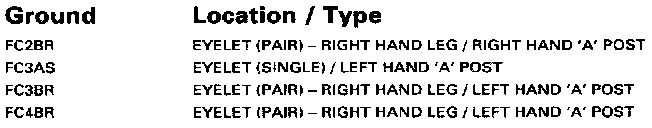

Gear Shift Interlock: Grounds:
Grounds Informations

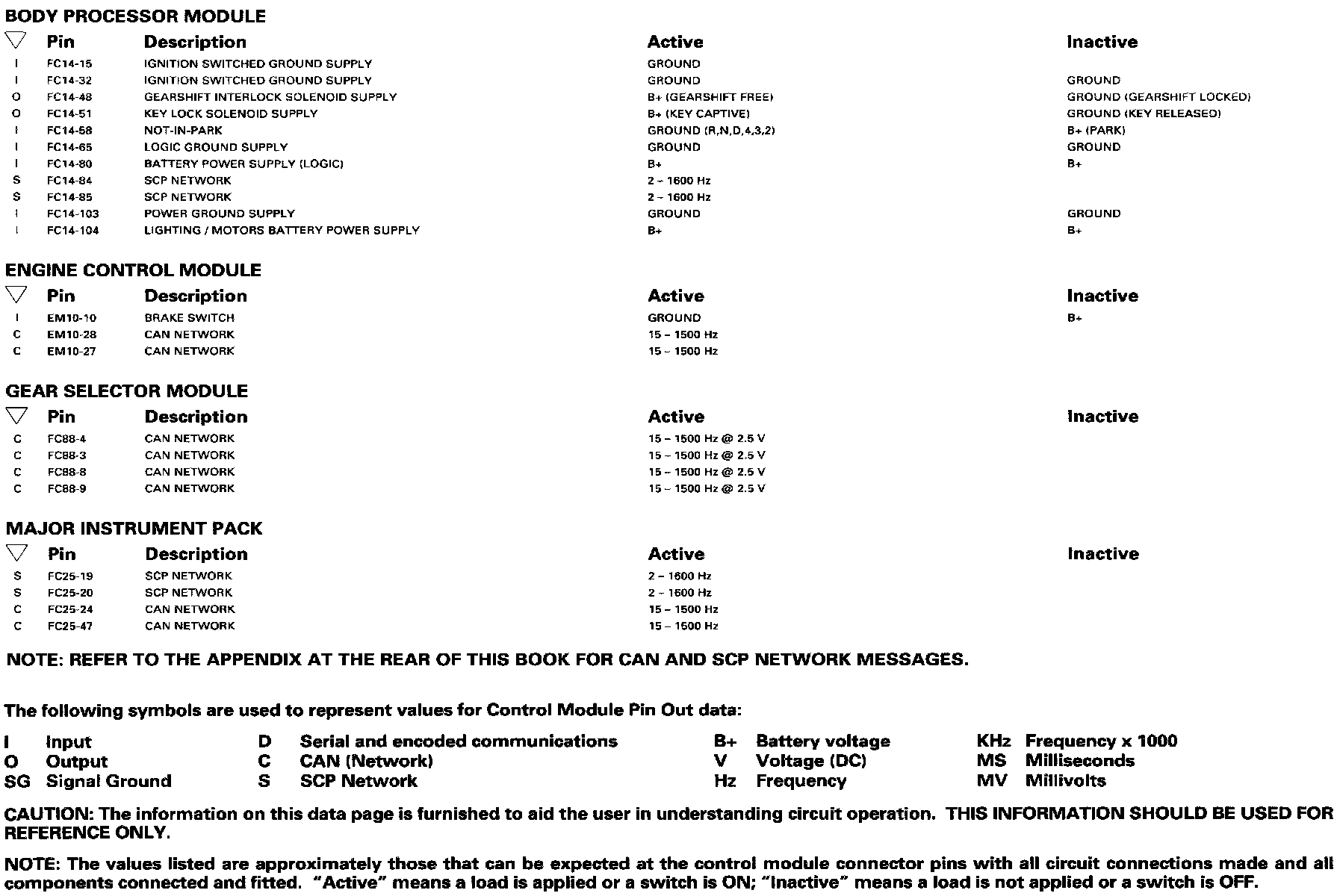

Gear Shift Interlock: Control Module Pin Out Information:
Control Module Pin Out Informations
