Cellular Phone

��pkqTqS-q�:qRadio Telephone:

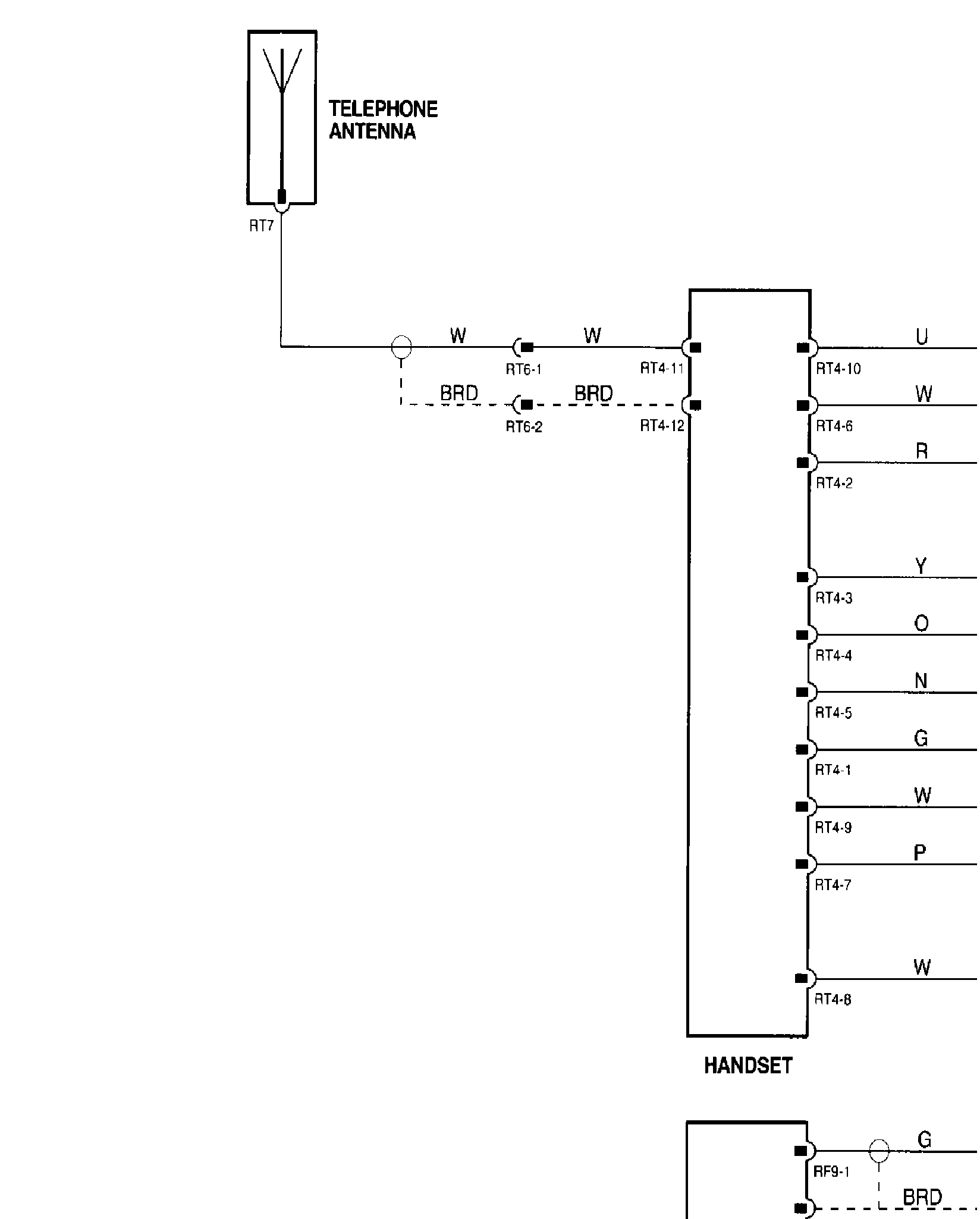

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

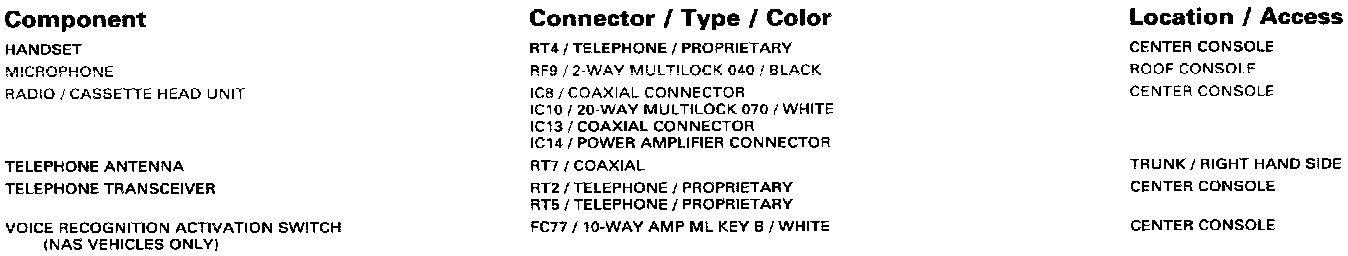

Radio Telephone: Components:

Components Informations

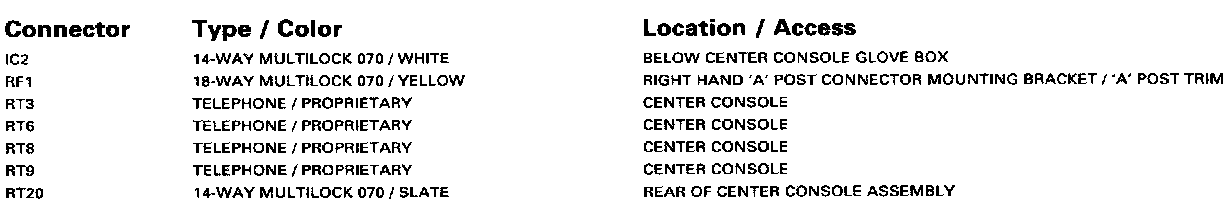

Radio Telephone: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

Radio Telephone: Grounds:

Grounds Informations
