Automatic Transmission Diagrams

AsSs�vs'�s�sAJ26 Automatic Transmission:

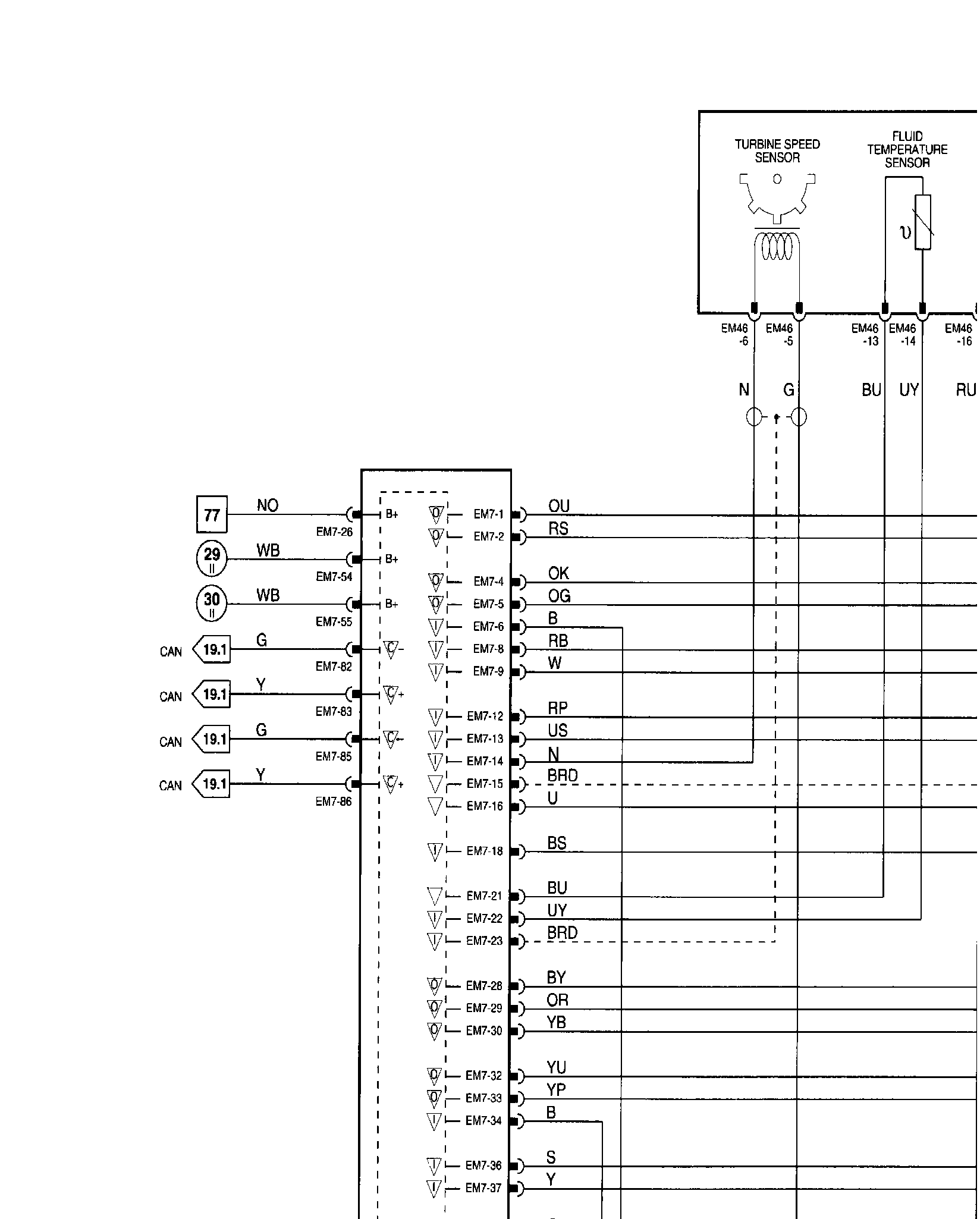

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

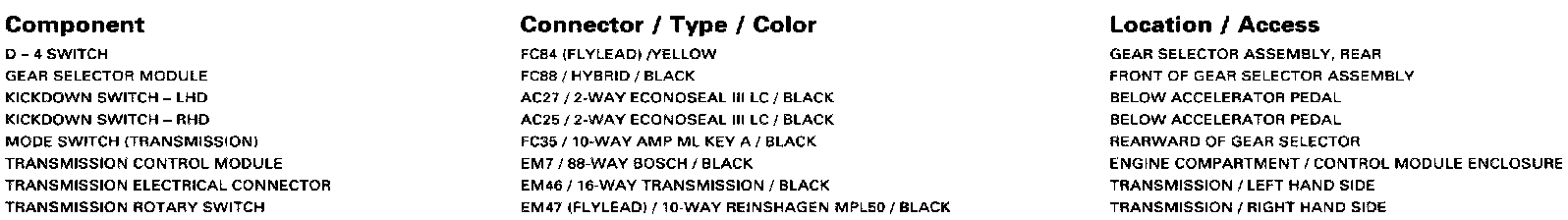

AJ26 Automatic Transmission: Components:

Components Informations

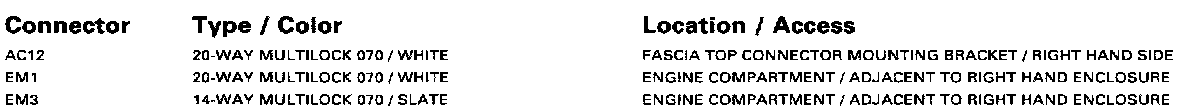

AJ26 Automatic Transmission: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

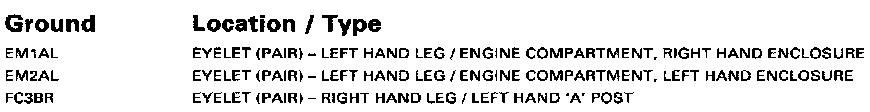

AJ26 Automatic Transmission: Grounds:

Grounds Informations

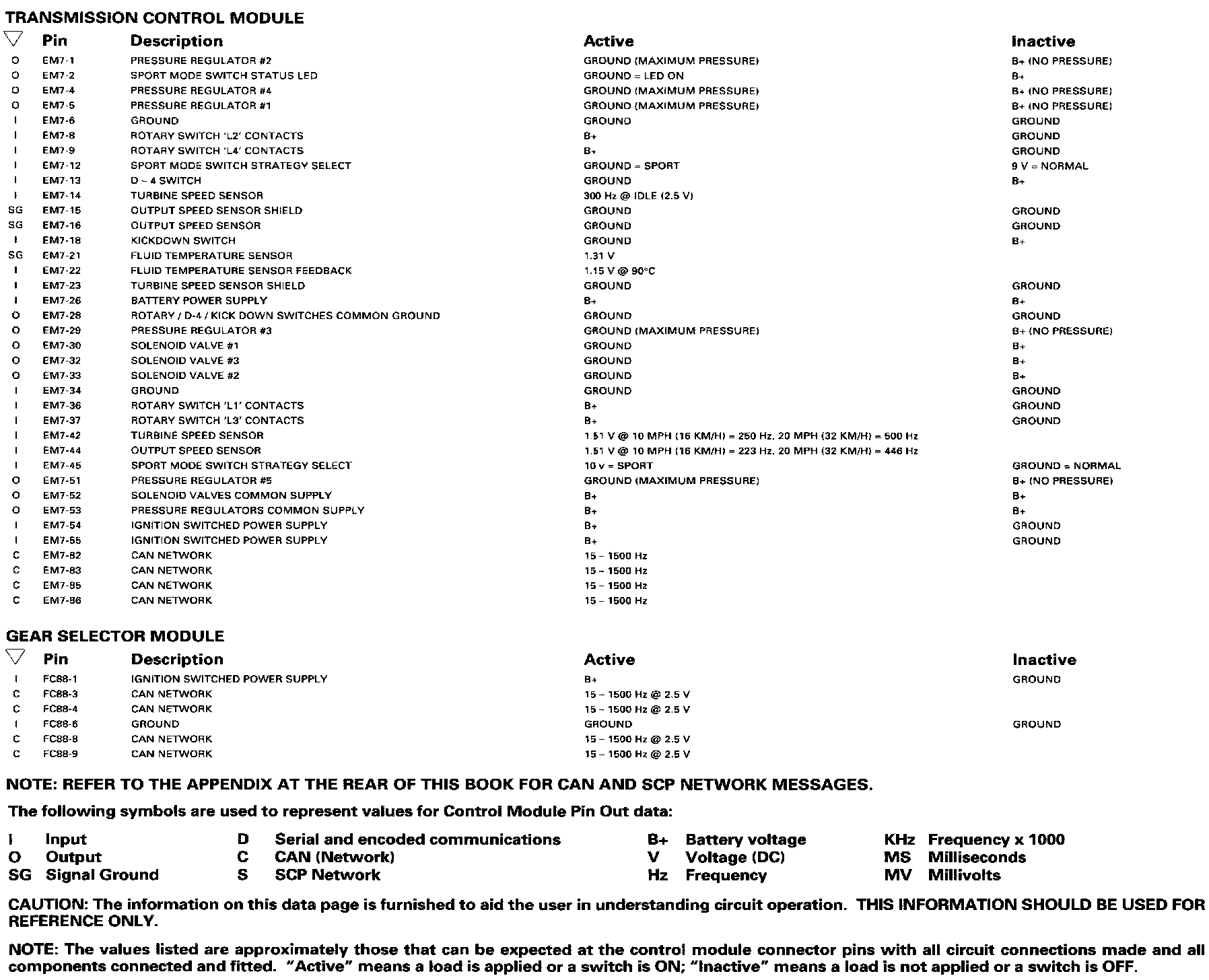

AJ26 Automatic Transmission: Control Module Pin Out Information:

Control Module Pin Out Informations
