Antitheft and Alarm Systems

")6"�c"zs"�"Security System - NAS:

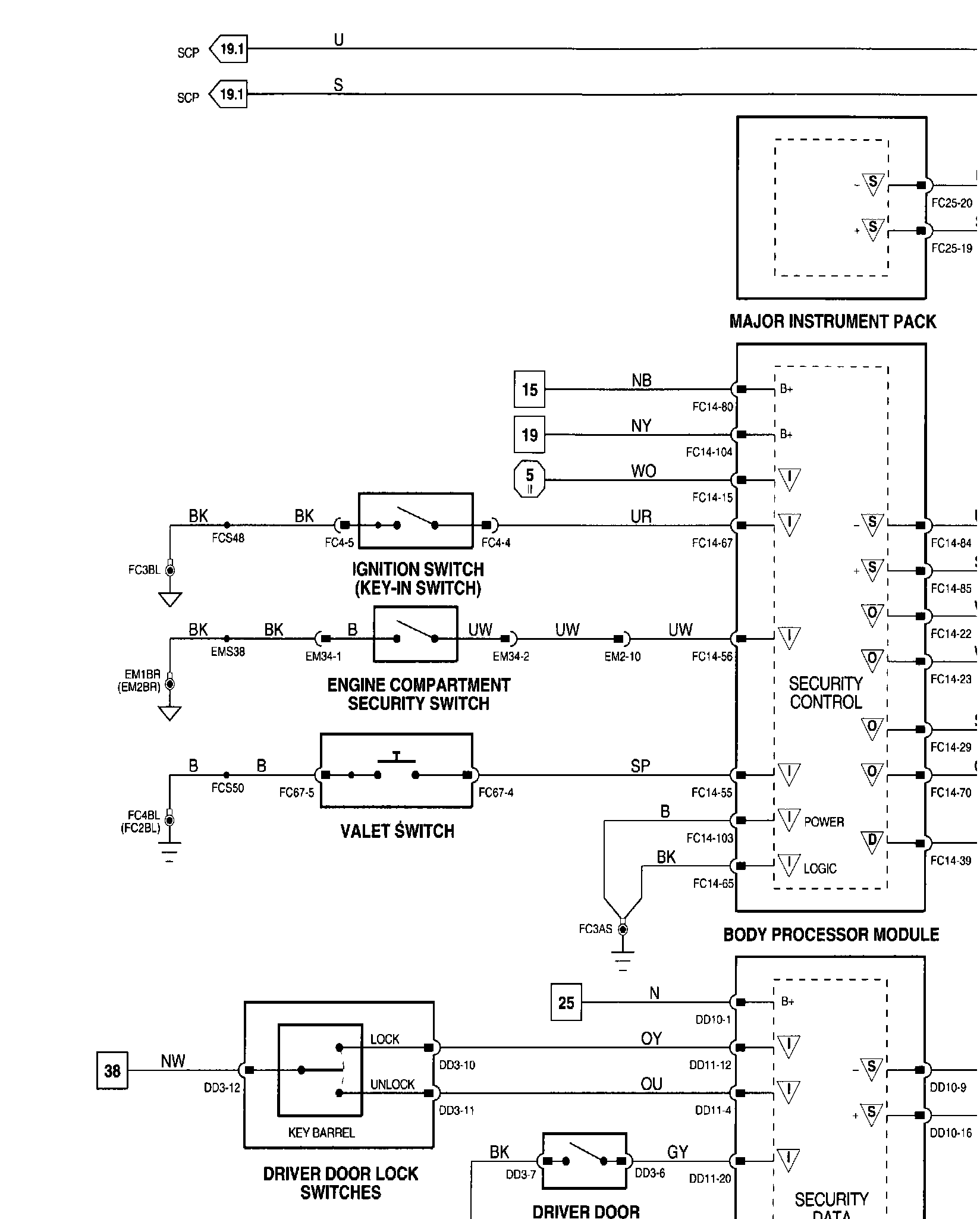

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

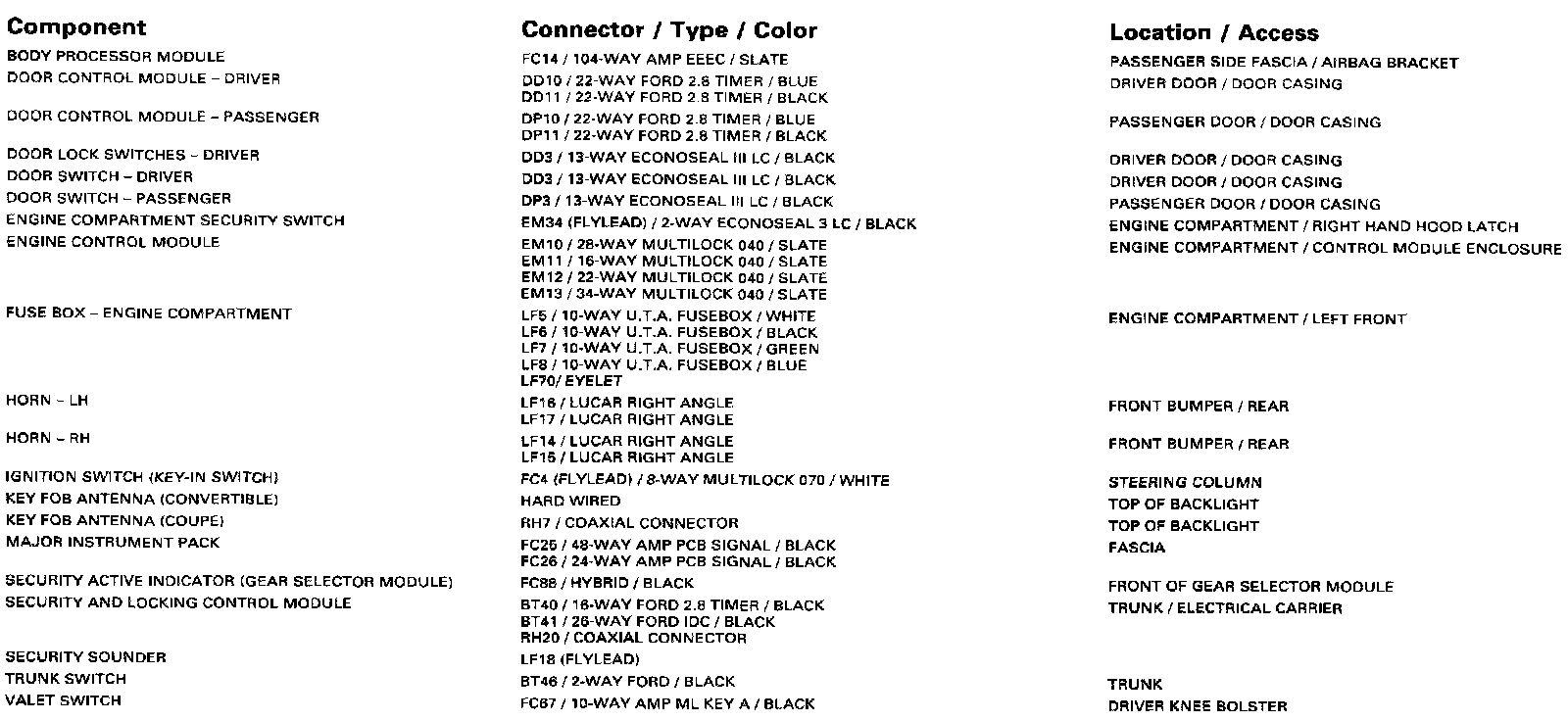

Security System - NAS: Components:

Components Informations

Security System - NAS: Relays:

Relays Informations

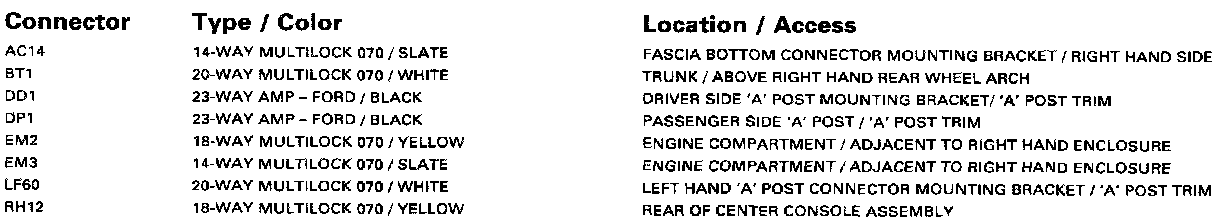

Security System - NAS: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

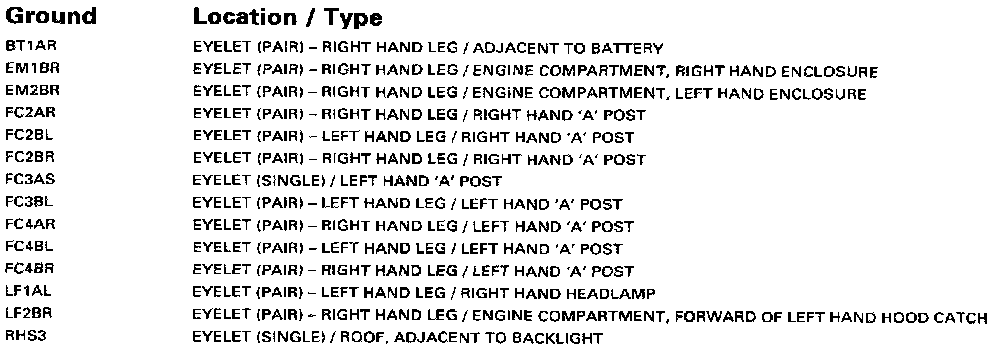

Security System - NAS: Grounds:

Grounds Informations

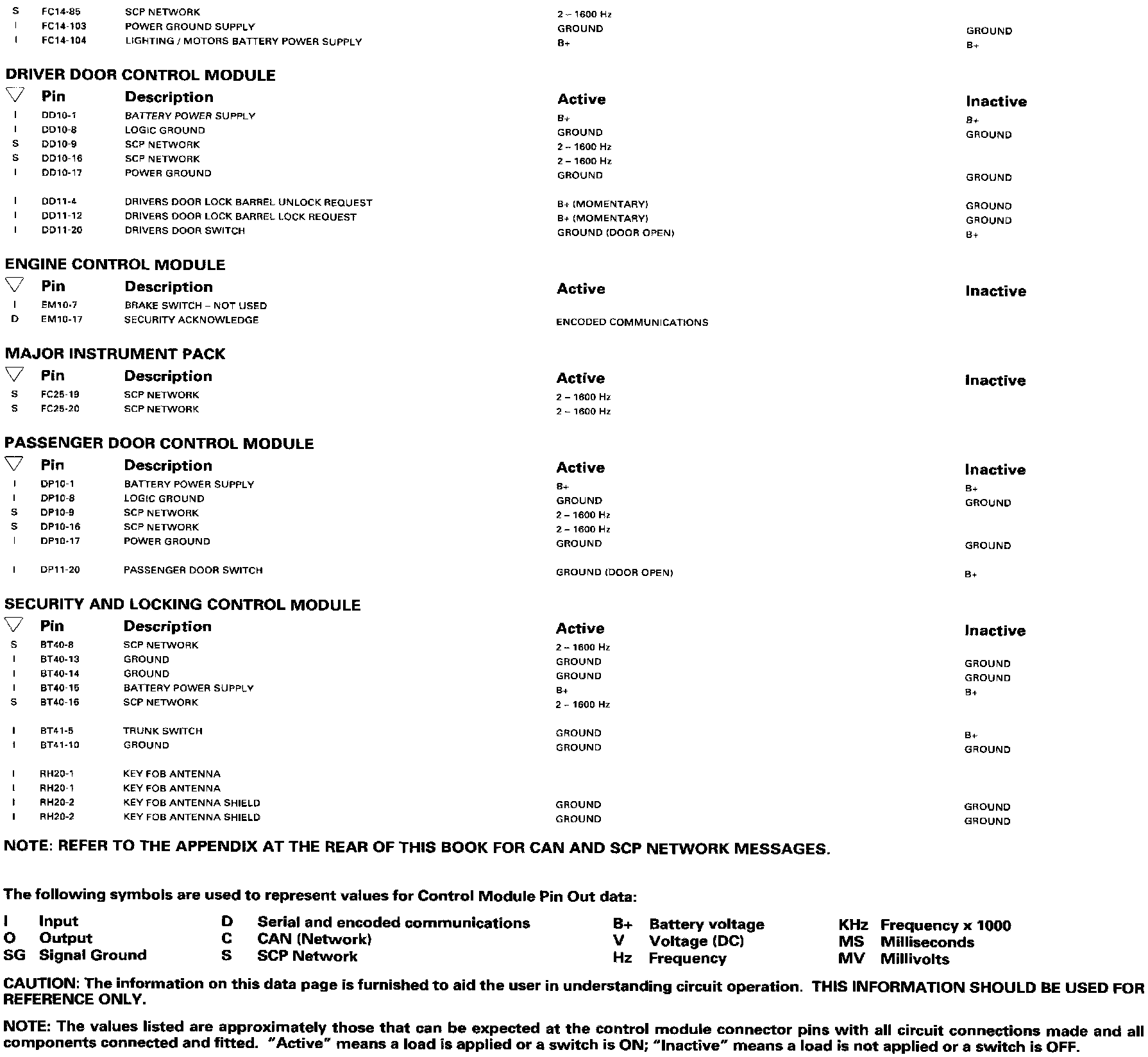

�^#Security System - NAS: Control Module Pin Out Information:

Control Module Pin Out Informations
