System Diagram

Ȳ�R��.��'����Anti-Lock Braking; Traction Control:

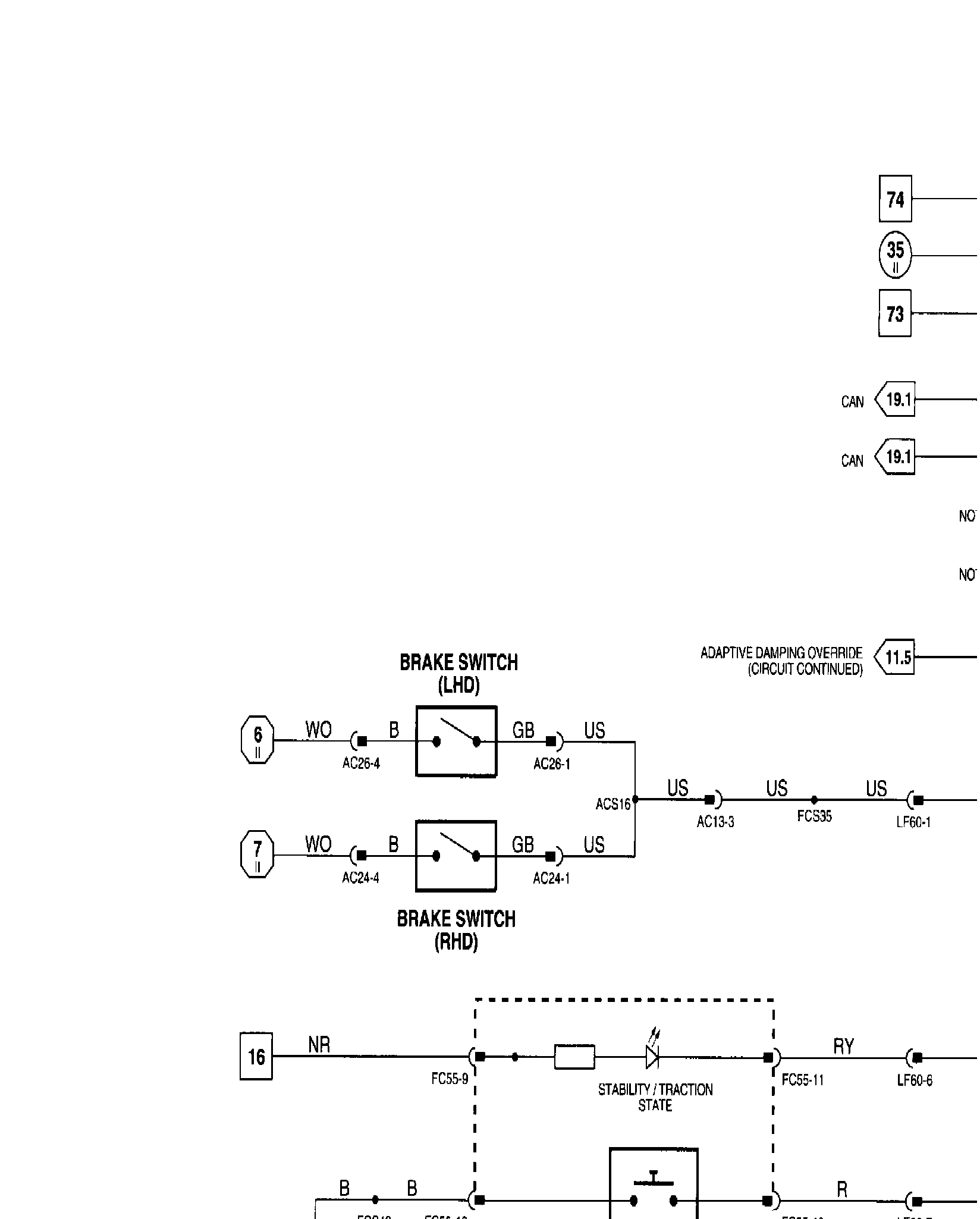

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

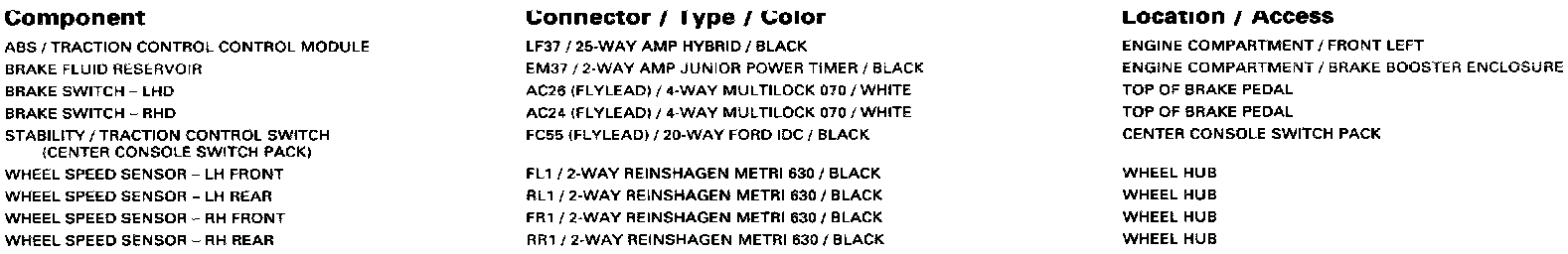

Anti-Lock Braking; Traction Control: Components:

Components Informations

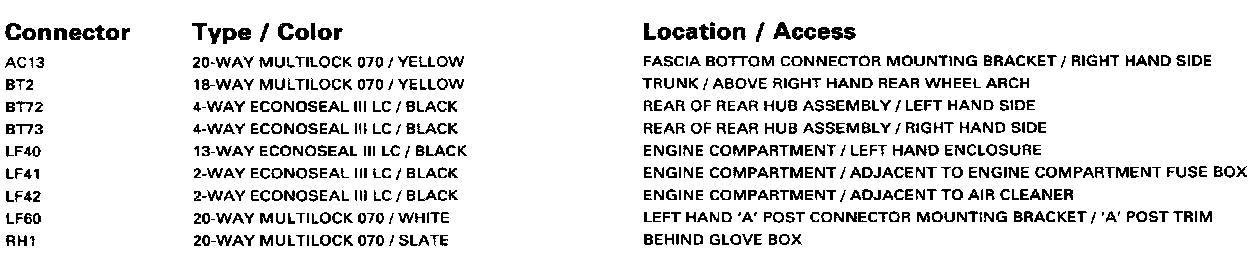

Anti-Lock Braking; Traction Control: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

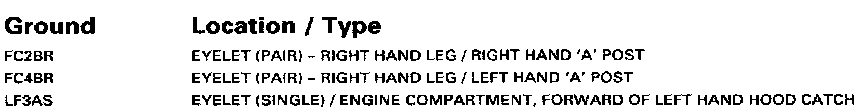

Anti-Lock Braking; Traction Control: Grounds:

Grounds Informations

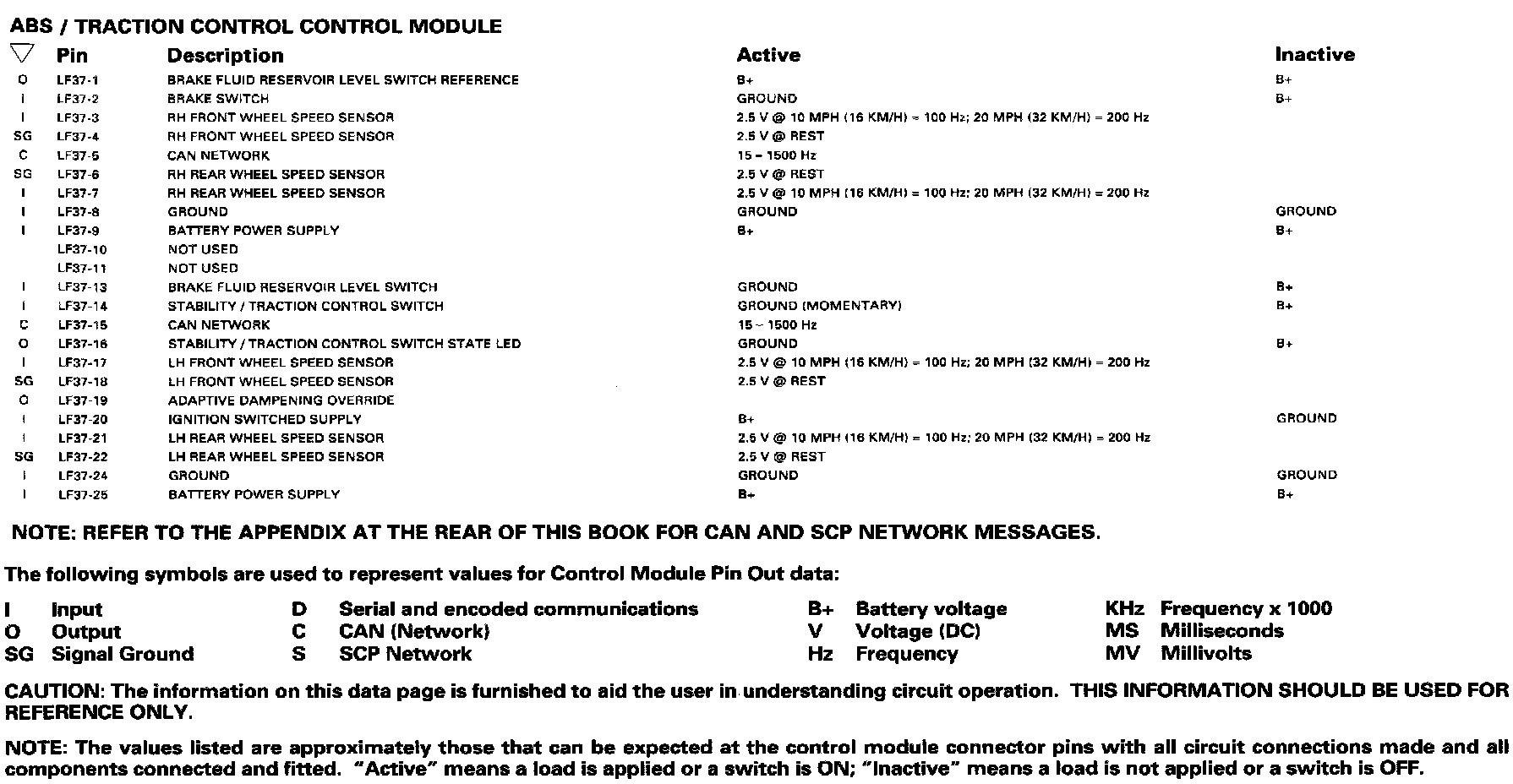

Anti-Lock Braking; Traction Control: Control Module Pin Out Information:

Control Module Pin Out Informations
