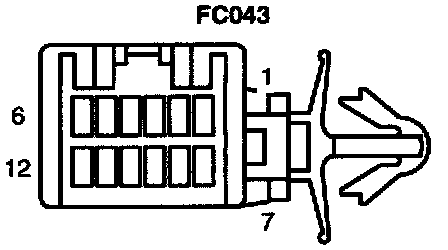

FC043

FC043





Pin Number Circuit Function
001 Output clock
002 Output start
003 Input data in
004 Output data out
005 Output ignition (positive)
006 Output auxiliary (negative)
007 Output (ground)
008 Dimmer
009 Dimmer override
010 Not used
011 Not used
012 Not used
