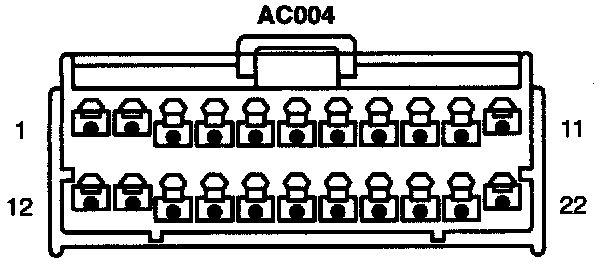

AC004

AC004





Pin Number Circuit Function
001 Ignition positive supply
002 Battery isolate supply
003 Auxiliary ground
004 Auxiliary positive to control panel
005 Battery supply
006 Engine speed input
007 Electrical load drive inhibit
008 Sensor (+5 V)
009 Clutch request
010 Diagnostic L-line
011 Not used
012 Ignition (positive) to control panel
013 System ground
014 Ground to control panel
015 Air conditioning isolation relay
016 Vehicle speed
017 Dual pressure switch
018 Aspirator motor (In-car sensor)
019 Sensor ground
020 Logic ground for diagnostic lines
021 Diagnostic K-line
022 Not used
