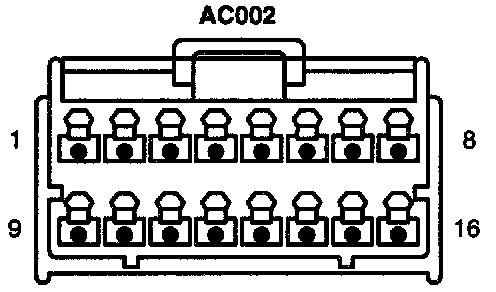

AC002

AC002





Pin Number Circuit Function
001 Solar sensor
002 Center vent servomotor feedback potentiometer
003 RH air intake servomotor feedback potentiometer fresh/recirculation
004 Not used
005 Cool air bypass servomotor feedback potentiometer
006 Coolant temperature signal
007 RH blower motor drive signal
008 RH blower motor drive signal
009 Differential potentiometer
010 Defrost servomotor feedback potentiometer
011 LH air intake servomotor feedback potentiometer fresh/recirculation
012 Not used
013 Foot servomotor feedback potentiometer
014 Not used
015 LH Blower motor voltage feedback
016 LH Blower motor drive signal
