Jaguar
>>
1997
>>
XK-8 Convertible (X100) V8-4.0L (AJ26)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
A/CCM Connections
A/CCM Connections
Control Module Inputs/Outputs
Identification:
Pin # 1(22-way) - 27(12-way):

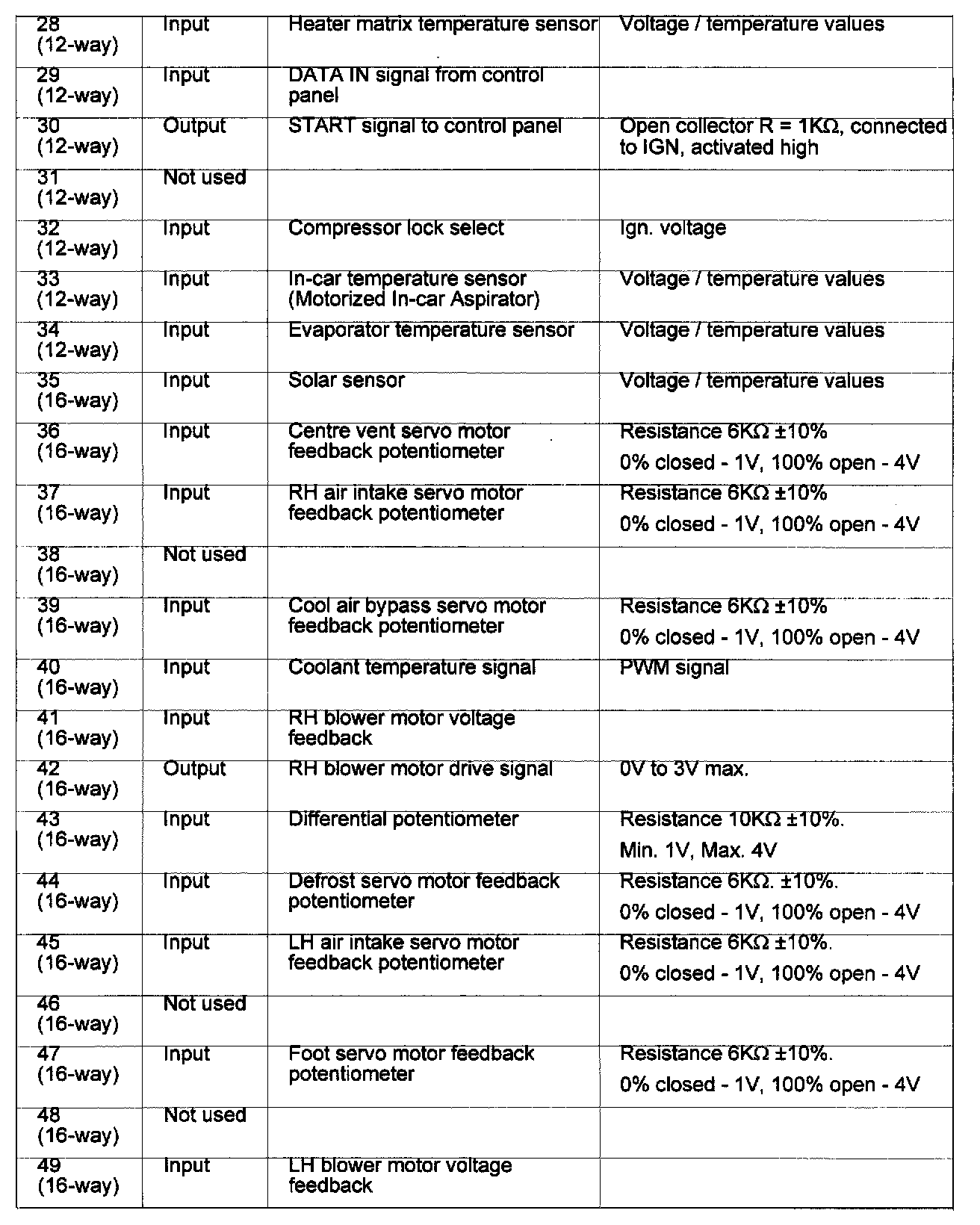

Pin # 28(12-way) - 49(16-way):

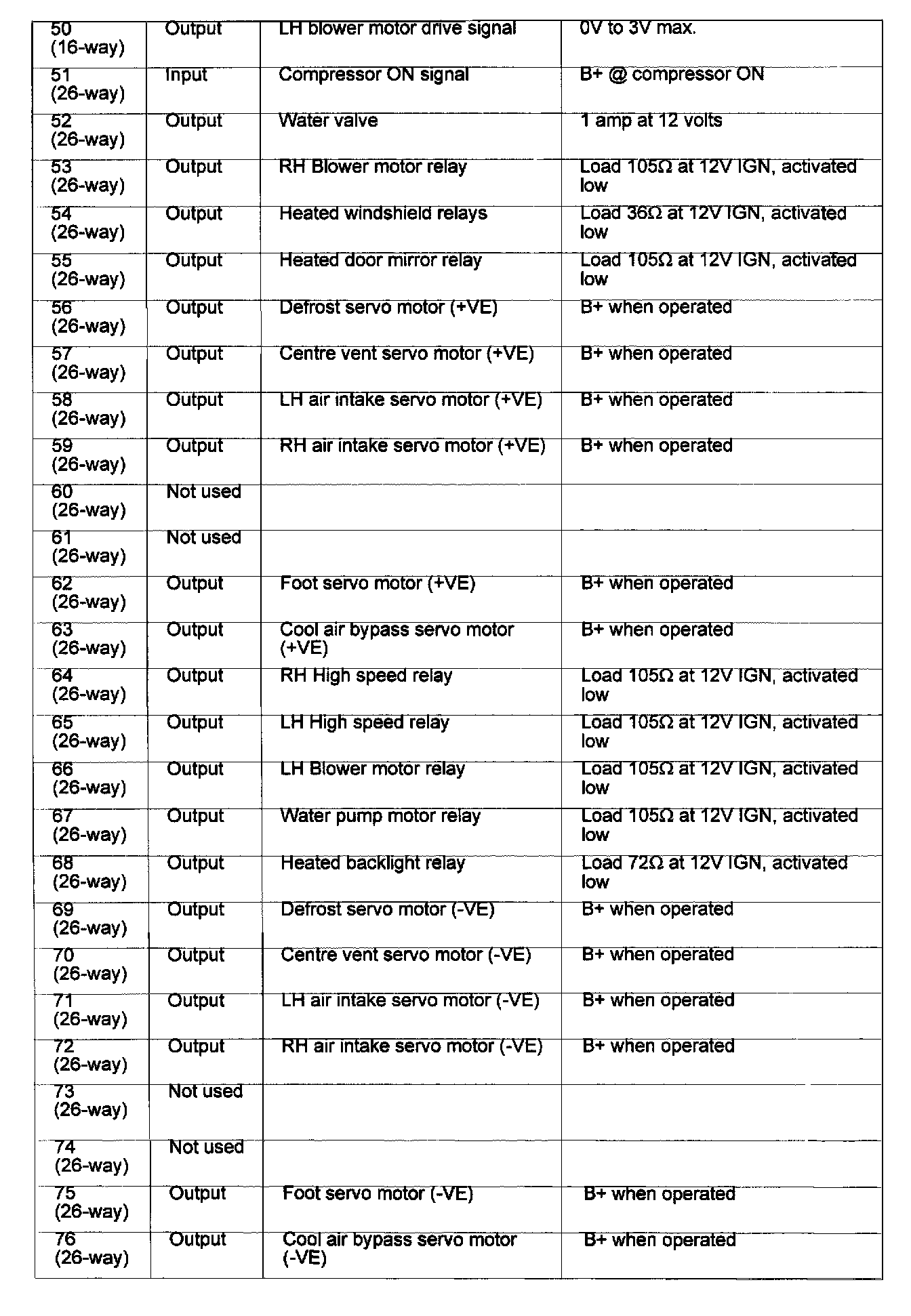

Pin # 50(16-way) - 76(26-way):
